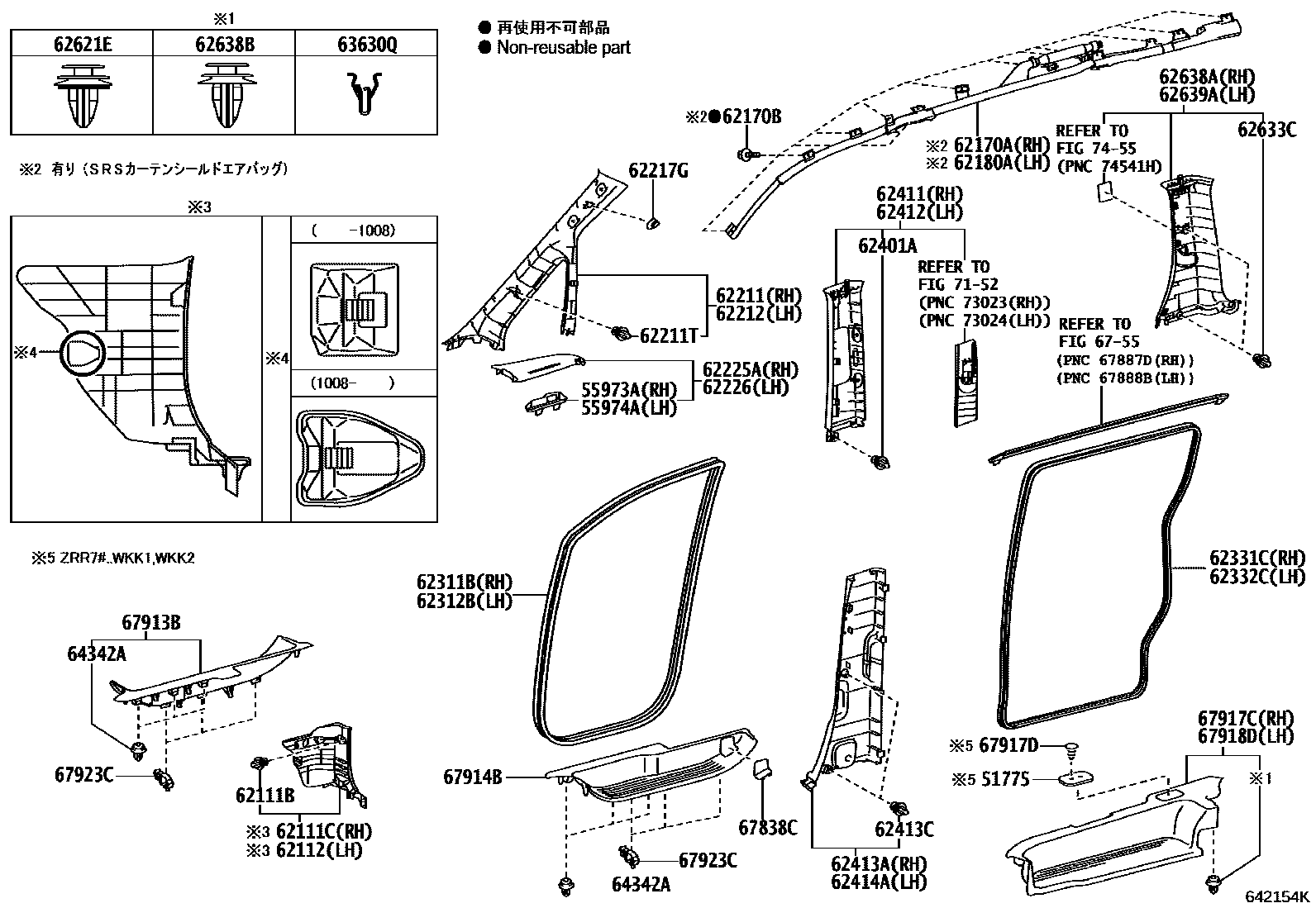

INSIDE TRIM BOARD

0001 1 0002 1 0003 1

51775COVER,REAR STEP

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-28070iZRR7#..CBU,IV5200706-201401

55974ADUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-28070iZRR7#..CBU,IV5200706-201401

62111BCLIP(FOR COWL SIDE TRIM)

main90467-10161iZRR7#..CBU,IV5200706-201401

62111CBOARD, COWL SIDE TRIM, RH

main62111-28180-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main62111-28180-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201008

BLACK,TRIM2#

main62111-28180-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201008

GREGE,TRIM4#

main62111-28181-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201008-201401

BLACK,TRIM2#

main62111-28181-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201008-201401

GREGE,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-28200-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main62112-28200-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201008

BLACK,TRIM2#

main62112-28200-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201008

GREGE,TRIM4#

main62112-28201-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201008-201401

BLACK,TRIM2#

main62112-28201-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201008-201401

GREGE,TRIM4#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

62170BBOLT, W/WASHER

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

62211GARNISH, FRONT PILLAR, RH

main62210-28080-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

LT.GRAY,TRIM1#

main62210-28080-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

LT.GRAY,TRIM2#

main62210-28080-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62210-28080-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62210-28080-E0iZRR75..NOAH..X..CBU;ZRR7#..NOAH..08S..(SI,X)..CBU201004-201401

main62210-28080-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

main62210-28080-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10167iZRR7#..CBU,IV5200706-201401

62212GARNISH, FRONT PILLAR, LH

main62220-28080-B0iZRR75..X..CBU;ZRR7#..08S..(SI,X,ZS)..CBU201004-201401

main62220-28080-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

LT.GRAY,TRIM1#

main62220-28080-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

LT.GRAY,TRIM2#

main62220-28080-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62220-28080-E0iZRR75..NOAH..X..CBU;ZRR7#..NOAH..08S..(SI,X)..CBU201004-201401

main62220-28080-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

main62220-28080-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

62217GCLIP, FRONT PILLAR GARNISH

main62217-35010iZRR7#..CBU,IV5200706-201401

62225AGARNISH, FRONT PILLAR, LOWER RH

main62225-28040-B1iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main62225-28040-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main62225-28040-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62225-28040-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62225-28040-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

main62225-28040-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

main62225-28040-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

62226GARNISH, FRONT PILLAR, LOWER LH

main62226-28040-B1iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main62226-28040-C0iZRR75..NOAH..X..CBU;ZRR7#..NOAH..08S..(SI,X)..CBU201004-201401

main62226-28040-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main62226-28040-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62226-28040-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

main62226-28040-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

main62226-28040-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-28110-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main62311-28110-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main62311-28110-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-28110-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main62312-28110-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main62312-28110-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main67871-28070-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-200808

MD.GRAY,TRIM1#

sub67871-28071

main67871-28070-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-200808

GREGE,TRIM4#

sub67871-28071

main67871-28071-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200809-200911

MD.GRAY,TRIM1#

sub67871-28072

main67871-28071-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200809-200911

GREGE,TRIM4#

sub67871-28072

main67871-28072-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200912-201004

MD.GRAY,TRIM1#

main67871-28072-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main67871-28072-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

main67871-28072-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

main67871-28072-E0iZRR7#..SI..CBU200912-201401

GREGE,TRIM4#

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main67872-28120-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-200808

MD.GRAY,TRIM1#

sub67872-28121

main67872-28120-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-200808

GREGE,TRIM4#

sub67872-28121

main67872-28121-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200809-200911

MD.GRAY,TRIM1#

sub67872-28122

main67872-28121-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200809-200911

GREGE,TRIM4#

sub67872-28122

main67872-28122-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200912-201004

MD.GRAY,TRIM1#

main67872-28122-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main67872-28122-E0iZRR7#..SI..CBU200912-201401

GREGE,TRIM4#

main67872-28122-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

main67872-28122-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201401

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-10161iZRR7#..CBU,IV5200706-201401

62411GARNISH, CENTER PILLAR, RH

main62410-28090-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

LT.GRAY,TRIM2#

main62410-28090-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

LT.GRAY,TRIM1#

main62410-28090-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-28090-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

LT.GRAY,TRIM2#

main62420-28090-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

LT.GRAY,TRIM1#

main62420-28090-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-28090-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main62413-28090-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main62413-28090-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iZRR7#..CBU,IV5200706-201401

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-28120-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main62414-28120-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main62414-28120-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

62621ECLIP

main90467-09206iZRR7#..CBU,IV5200706-201004

main90467-09206iZRR7#..07S..IV5201004-201401

main90467-09206iZRR7#..07S..IV5201004-201401

62633CCLIP (FOR QUARTER TRIM GARNISH)

main90467-10161iZRR7#..CBU,IV5200706-201401

62638AGARNISH, QUARTER PILLAR, RH

main62638-28230-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-200812

LT.GRAY,TRIM1#

main62638-28230-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-200812

GREGE,TRIM4#

main62638-28231-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200812-201004

LT.GRAY,TRIM1#

main62638-28231-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200812-201004

GREGE,TRIM4#

main62638-28290-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

LT.GRAY,TRIM2#

main62638-28290-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62638-28290-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62638-28290-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

GREGE,TRIM4#

main62638-28290-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

main62638-28290-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

62638BCLIP

main67771-28150iZRR75..IV5201209-201401

main67771-28150iZRR75..IV5201209-201401

main90467-10161iZRR75..IV5201004-201208

main90467-10161iZRR7#..CBU,IV5200706-201004

main90467-10161iZRR7#..07S..IV5201004-201208

62639AGARNISH, QUARTER PILLAR, LH

main62639-28260-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-200812

LT.GRAY,TRIM1#

main62639-28260-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-200812

GREGE,TRIM4#

main62639-28261-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200812-201004

LT.GRAY,TRIM1#

main62639-28261-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200812-201004

GREGE,TRIM4#

main62639-28310-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

LT.GRAY,TRIM2#

main62639-28310-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

main62639-28310-B0iZRR75..X..CBU;ZRR7#..08S..(SI,X,ZS)..CBU201004-201401

main62639-28310-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

main62639-28310-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

GREGE,TRIM4#

main62639-28310-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

63630QCLIP

main90468-05125iZRR75..CBU;ZRR70..07S..CBU;ZRR70..(05S,08S)..(CBU,IV5)201004-201401

main90468-05125iZRR7#..07S..CBU200706-201004

main90468-05125iZRR7#..07S..IV5201004-201401

64342ACLIP

main90467-09206iZRR7#..CBU,IV5200706-201401

6755

67838CCOVER, FRONT DOOR SERVICE HOLE, NO.4 LH

main67925-28030-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main67925-28030-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main67925-28030-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-28060-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main67913-28060-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main67913-28060-E0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-28060-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main67914-28060-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main67914-28060-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)200706-201401

GREGE,TRIM4#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-28120-B0iZRR70..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main67917-28120-E0iZRR70..NOAH..X..(CBU,IV5);ZRR75..NOAH..(G,X)..(CBU,IV5)200706-201004

GREGE,TRIM4#

main67917-28130-B0iZRR70..V200706-201004

MD.GRAY,TRIM1#

main67917-28130-B0iZRR70..V200706-201004

main67917-28130-C0iZRR7#..05S201004-201401

BLACK,TRIM2#

main67917-28130-E0iZRR70..NOAH..08S..X..CBU200706-201004

main67917-28130-E0iZRR70..NOAH..08S..X..CBU200706-201004

GREGE,TRIM4#

main67917-28150-C0iZRR7#..(S,SI,V,X,Z,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main67917-28150-E0iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

GREGE,TRIM4#

67917DCLIP, REAR DOOR SCUFF PLATE

67918DPLATE, REAR DOOR SCUFF, LH

main67918-28110-B0iZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5);ZRR75..(05S,08S)..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

MD.GRAY,TRIM1#

main67918-28110-E0iZRR75..NOAH..08S..(G,X);ZRR70..NOAH..08S..X..HTWC200706-201004

GREGE,TRIM4#

main67918-28120-B0iZRR70..V;ZRR7#..07S..CBU200706-201004

main67918-28120-B0iZRR70..V;ZRR7#..07S..CBU200706-201004

MD.GRAY,TRIM1#

main67918-28120-C0iZRR7#..05S201004-201401

BLACK,TRIM2#

main67918-28120-E0iZRR70..NOAH..08S..X..CBU200706-201004

GREGE,TRIM4#

main67918-28120-E0iZRR70..G;ZRR7#..NOAH..07S..HTWC..CBU200706-201004

main67918-28150-C0iZRR70..08S..(CBU,IV5);ZRR75..(S,SI,V,X,Z,ZS)..CBU;ZRR70..07S..(S,SI,V,X,Z,ZS)..CBU201004-201401

main67918-28150-C0iZRR75..IV5201004-201401

BLACK,TRIM2#

main67918-28150-C0iZRR75..IV5201004-201401

main67918-28150-E0iZRR75..NOAH..IV5201004-201401

main67918-28150-E0iZRR70..NOAH..08S..X..IV5;ZRR7#..NOAH..(G,SI,X)..CBU201004-201401

main67918-28150-E0iZRR75..NOAH..IV5201004-201401

GREGE,TRIM4#

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-28040iZRR7#..CBU,IV5200706-201401

7152

7455

42 parts on this diagram · 3 diagrams in section
