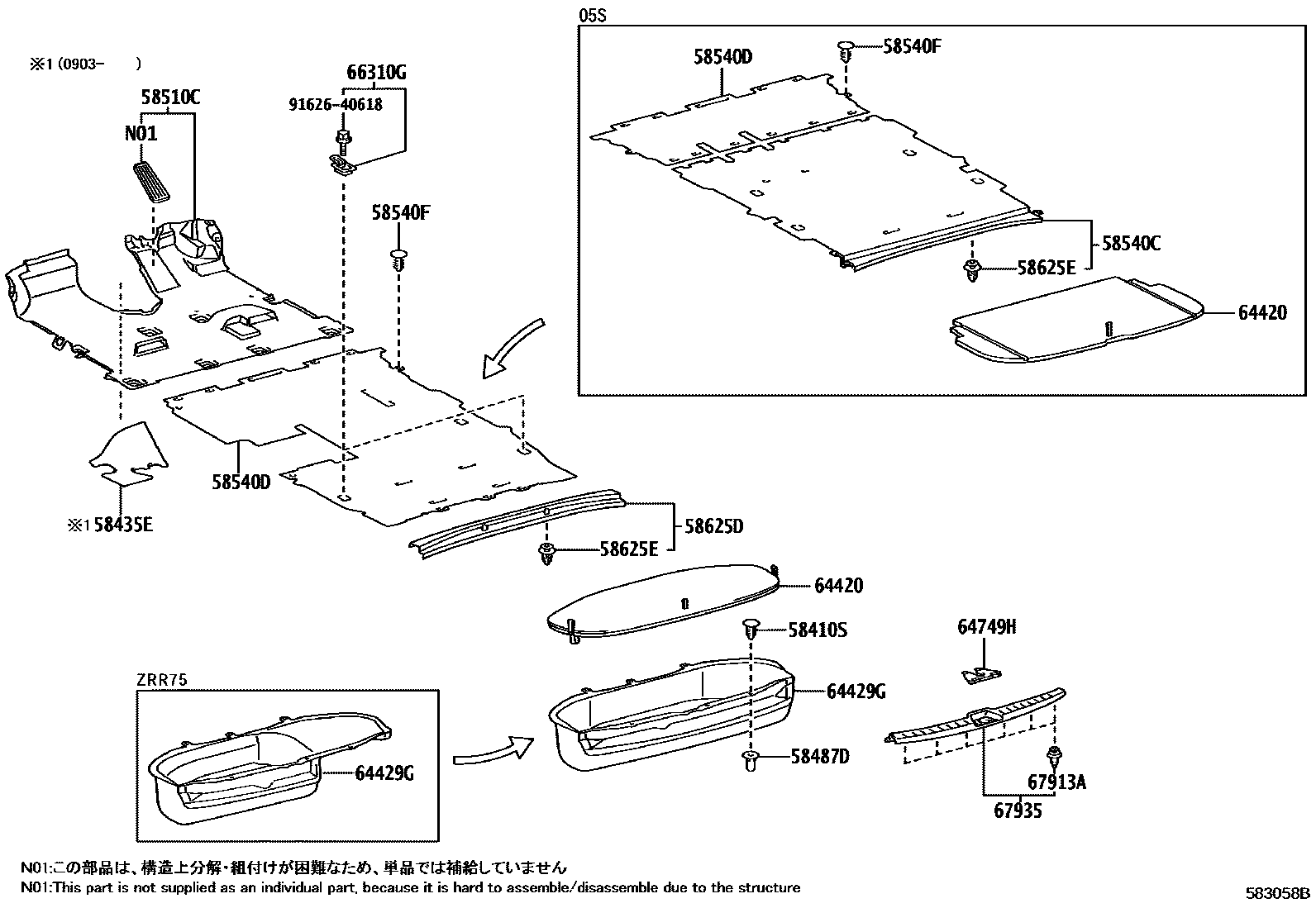

FLOOR MAT & SILENCER PAD

0001 1 0002 1 0003 1 0004 1

58410SCLIP, DECK BOARD

main67771-26230-E0×6iZRR7#..CBU201004-201401

CREAM YELLOW

58435ESILENCER, FRONT FLOOR, CENTER

main58435-28080iZRR7#..CBU,IV5200903-201004

58487DCAP, DECK BOARD SERVICE HOLE

main67772-44010×6iZRR7#..CBU201004-201401

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-28E80-B2iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

GRAY,TRIM1#

main58510-28E80-E1iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201004

GREGE,TRIM4#

main58510-28E81-B3iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201004-201006

BLACK,TRIM2#

main58510-28E81-E1iZRR7#..NOAH..(G,X)..(CBU,IV5)201004-201006

GREGE,TRIM4#

main58510-28E82-B3iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)201007-201401

BLACK,TRIM2#

main58510-28E82-E1iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201007-201401

GREGE,TRIM4#

main58510-28E90-B2iZRR7#..08S..(SI,X,ZS)..CBU200706-201004

main58510-28E90-E1iZRR7#..NOAH..08S..X..CBU200706-201004

main58510-28F80-B0iZRR75..X..CBU;ZRR7#..08S..(SI,X,ZS)..CBU201004-201006

main58510-28F80-E0iZRR75..NOAH..X..CBU;ZRR70..NOAH..08S..X..CBU201004-201006

main58510-28F81-B0iZRR75..X..CBU;ZRR7#..08S..(SI,X,ZS)..CBU201007-201401

main58510-28F81-E0iZRR75..NOAH..X..CBU;ZRR70..NOAH..08S..X..CBU201007-201401

58540CMAT ASSY, FLOOR, REAR

main58540-28D50-C0iZRR7#..05S201004-201009

BLACK,TRIM2#

main58540-28D51-C0iZRR7#..05S201010-201401

BLACK,TRIM2#

main58540-28C30-B1supersedes 58540-28C20-B1iZRR7#..05S200706-201004

58540DCARPET ASSY, FLOOR, REAR

main58530-28320-B0iZRR70..08S..IV5201004-201401

GRAY,TRIM2#

main58530-28320-E0iZRR70..NOAH..08S..X..IV5201004-201401

GREGE,TRIM4#

main58540-28C00-B3iZRR70..V; ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU200706-201004

main58540-28C00-E2iZRR70..G; ZRR70..NOAH..08S..X..CBU200706-201004

main58540-28C10-B2iZRR7#..05S200706-201004

GRAY,TRIM1#

main58540-28C90-B3iZRR7#..07S..CBU200706-201004

GRAY,TRIM1#

main58540-28C90-E2iZRR7#..NOAH..07S..HTWC..CBU200706-201004

GREGE,TRIM4#

main58540-28D10-E0iZRR7#..NOAH..07S..(G,SI,X)..CBU; ZRR75..NOAH..X..CBU201004-201401

main58540-28D20-B0iZRR7#..08S..CBU; ZRR7#..NOAH..08S..(SI,X)..CBU201004-201401

main58540-28D40-B0iZRR7#..05S201004-201401

GRAY,TRIM2#

main58530-28400-B0iZRR75..IV5201004-201401

main58530-28400-E0iZRR75..NOAH..IV5201004-201401

main58530-D1080-B0iZRR7#..HTWC..IV5200706-201004

main58530-D1080-E0iZRR7#..NOAH..HTWC..IV5200706-201004

main58540-28B80-E2iZRR7#..S200806-201004

main58540-28B90-B3supersedes 58540-28B80-B3iZRR70..08S..(S,SI,X,Z,ZS)..CBU;ZRR75..08S..(S,SI,V,X,Z,ZS)..CBU200706-201004

main58540-28B90-E2supersedes 58540-28B80-E2iZRR70..NOAH..08S..X..CBU;ZRR75..NOAH..08S..(G,X)..CBU200706-201004

main58540-28D10-B0supersedes 58540-28F00-B0iZRR7#..07S..(S,SI,V,X,Z,ZS)..CBU201004-201401

main58540-28D20-E0iZRR7#..NOAH..08S..(SI,X)..CBU201004-201401

main58540-28D30-B0iZRR7#..07S..(SI,X,ZS)..CBU; ZRR70..07S..(SI,ZS)..CBU;ZRR75..07S..(SI,X,ZS)..CBU; ZRR70..07S..X..CBU201004-201401

main58540-28D30-E0iZRR7#..NOAH..07S..X..CBU; ZRR70..NOAH..07S..X..CBU; ZRR75..NOAH..X..CBU201004-201401

main58540-28F00-B0iZRR7#..07S..(S,SI,V,X,Z,ZS)..CBU; ZRR75..X..CBU201004-201401

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-05164-E2iZRR7#..07S..HTWVM..CBU;ZRR7#..VOXY..07S..HTWC..CBU; ZRR7#..HTWC..IV5; ZRR7#..NOAH..07S..HTWC..CBU; ZRR7#..NOAH..08S..X..CBU; ZRR7#..VOXY..08S..X..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,YY,Z,ZS)..CBU;ZRR75..(05S,08S)..(G,S,SI,TRASX,V,YY,Z,ZS)..CBU200706-201004

58625DPLATE, REAR FLOOR MAT, NO.1

main58625-28060-B0iZRR7#..(S,SI,V,X,Z,ZS)..CBU200706-201004

MD.GRAY,TRIM1#

main58625-28060-C0iZRR7#..(S,SI,V,X,Z,ZS)..CBU; ZRR75..NOAH..X..CBU;ZRR7#..NOAH..08S..(SI,X)..CBU201004-201401

main58625-28060-E0iZRR7#..NOAH..(G,SI,X)..CBU; ZRR75..NOAH..X..CBU;ZRR7#..NOAH..08S..(SI,X)..CBU201004-201401

58625ECLIP(FOR REAR FLOOR MAT PLATE)

main90467-10161×3iZRR7#..CBU201004-201401

64420LID, LUGGAGE ROOM BOX

main64420-28080-B5iZRR7#..(S,SI,V,X,Z,ZS)..CBU200706-201004

MEDIUM GRAY,TRIM1#

main64420-28080-C0iZRR7#..(S,SI,V,X,Z,ZS)..CBU201004-201401

BLACK,TRIM2#

main64420-28080-E0iZRR7#..NOAH..(G,X)..CBU200706-201004

GREGE,TRIM4#

main64420-28090-B1iZRR7#..05S200706-201004

DK.GRAY,TRIM1#

main64420-28090-C0iZRR7#..05S201004-201401

BLACK,TRIM2#

64429GBOX, LUGGAGE COMPARTMENT TRIM

main64429-28060iZRR70..CBU201004-201401

main64429-28070iZRR75..CBU200706-201004

64749HCOVER, BACK DOOR STRIKER

main64749-28020-B1iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU200706-201004

MD.GRAY,TRIM1#

main64749-28020-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU201004-201401

BLACK,TRIM2#

main64749-28020-E0iZRR7#..NOAH..(G,SI,X)..CBU201004-201401

GREGE,TRIM4#

66310GHOOK ASSY, ROPE

main66310-28060-B0×2iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..(CBU,IV5)200706-201004

DK.GRAY,TRIM1#

main66310-28060-E1×2iZRR70..NOAH..X..IV5;ZRR70..NOAH..(G,SI,X)..CBU;ZRR75..NOAH..(G,SI,X)..(CBU,IV5)201004-201401

GREGE,TRIM4#

67913ACLIP(FOR SCUFF PLATE)

main90467-10161×6iZRR7#..CBU201004-201401

67935PLATE, BACK DOOR SCUFF

main67935-28080-B0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU200706-201004

MD.GRAY,TRIM1#

main67935-28080-C0iZRR7#..(S,SI,TRASX,V,X,YY,Z,ZS)..CBU201004-201401

BLACK,TRIM2#

main67935-28080-E0iZRR7#..NOAH..(G,SI,X)..CBU201004-201401

GREGE,TRIM4#

9162640618

main91626-40618

16 parts on this diagram · 4 diagrams in section
