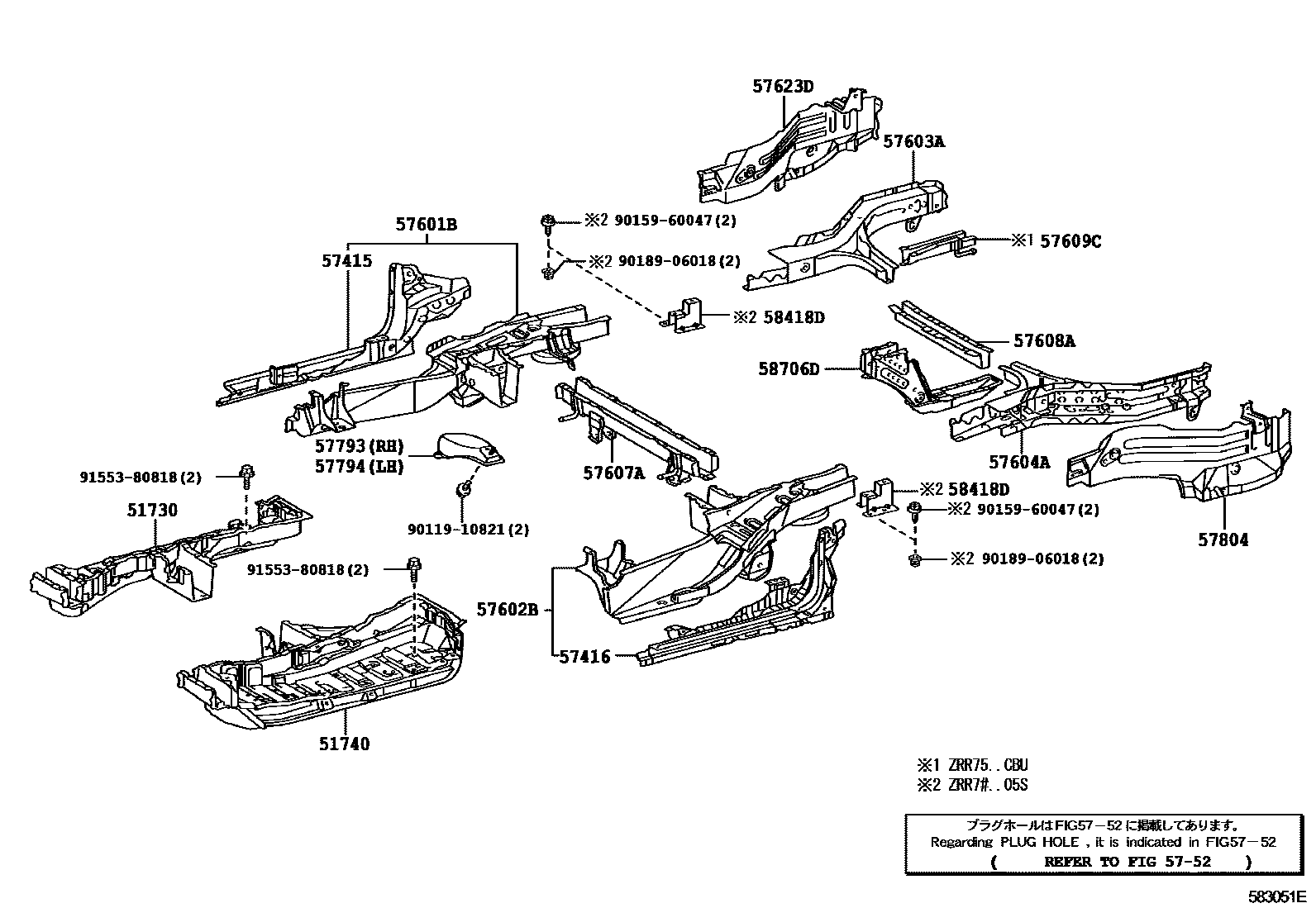

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1��������� 0004 1 0005 1

51730STEP ASSY, REAR FLOOR, RH

main51730-28130iZRR7#..CBU,IV5200706-201004

main51730-28150iZRR7#..CBU,IV5201004-201401

51740STEP ASSY, REAR FLOOR, LH

main51740-28140iZRR7#..CBU200706-201004

main51740-28150iZRR7#..08S..X..CBU; ZRR7#..IV5200706-201004

57415RAIL, FLOOR SIDE, REAR RH

main57047-28110iZRR7#..CBU,IV5200706-200708

main57047-28111iZRR7#..CBU,IV5200709-201004

57416RAIL, FLOOR SIDE, REAR LH

main57048-28110iZRR7#..CBU200706-200708

main57048-28111iZRR7#..CBU,IV5201004-201401

main57048-28120iZRR7#..08S..X..CBU; ZRR7#..IV5; ZRR70..08S..X..CBU200706-200708

main57048-28121iZRR7#..08S..X..CBU; ZRR7#..IV5; ZRR70..08S..X..CBU200709-201004

5752HOLE PLUG

→ Go to FIG 57-52

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57041-28110iZRR75..CBU,IV5;ZRR70..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)200706-201004

main57041-28120iZRR70..G,V; ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU200706-201004

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57042-28040iZRR75..(05S,08S)..CBU;ZRR70..(05S,08S)..(S,SI,TRASX,X,YY,Z,ZS)..CBU200706-201004

main57042-28060iZRR70..G,V;ZRR7#..07S..CBU; ZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(S,SI,X,Z,ZS)..CBU200706-201004

main57042-28070iZRR7#..08S..X..CBU; ZRR7#..IV5200706-201004

main57042-28090iZRR70..08S..X..CBU200706-201004

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-28100iZRR70..CBU200706-201001

main57603-28101iZRR70..CBU201004-201401

main57603-28110iZRR75..CBU200706-201001

main57603-28111iZRR75..CBU201004-201401

mainC304128010iZRR7#..IV5200706-201001

mainC304128011iZRR7#..IV5201001-201004

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-28070iZRR7#..CBU200706-201001

main57604-28071iZRR7#..CBU201004-201401

mainC304228010iZRR7#..IV5200706-201001

mainC304228030iZRR7#..IV5201001-201004

mainC304228020iZRR7#..08S..(SI,X,ZS)..CBU200706-201001

mainC304228040iZRR75..X..CBU;ZRR7#..08S..(SI,X,ZS)..CBU201004-201401

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-28470iZRR75..IV5;ZRR70..CBU,IV5200706-201004

main57607-44060iZRR75..CBU200706-201004

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57655-44020iZRR7#..CBU,IV5200706-201004

57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5

main57609-28050iZRR75..CBU201004-201401

57623DPLATE, REAR FLOOR SIDE MEMBER, RR RH

main57623-28030iZRR7#..CBU,IV5201004-201401

57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1

main57793-28040iZRR7#..CBU,IV5201004-201401

57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1

main57706-28020iZRR7#..IV5201004-201401

main57794-28040iZRR7#..CBU200706-201004

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-28040iZRR7#..CBU,IV5201004-201401

58418DBRACKET, DECK BOARD, NO.2

main58456-28060iZRR7#..05S200706-201004

main58457-28030iZRR7#..05S201004-201401

58706DBRACKET SUB-ASSY, JACK CARRIER, NO.1

main58706-44010iZRR7#..CBU,IV5200706-201004

9011910821

main90119-10821

9015960047

main90159-60047

9018906018

main90189-06018

9155380818

main91553-80818

22 parts on this diagram · 5 diagrams in section
