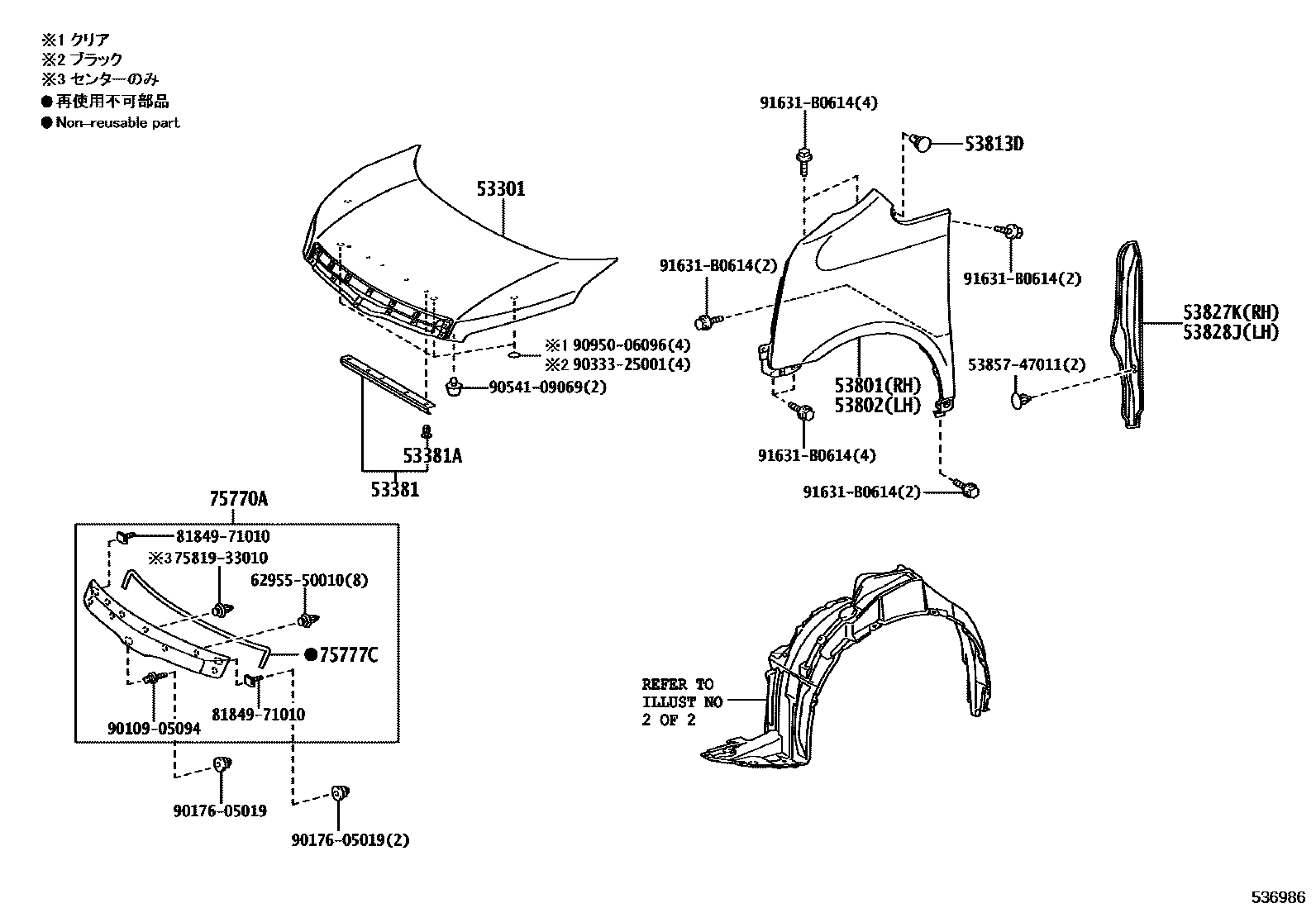

HOOD & FRONT FENDER

0001 1 0002 1�������� 0003 1 0004 1��������

53301HOOD SUB-ASSY

main53301-28120iZRR7#..NOAH..(CBU,IV5)200706-201004

main53301-28130iZRR7#..VOXY..(CBU,IV5)200706-200904

main53301-28131iZRR7#..VOXY..(CBU,IV5)200905-201004

main53301-28140iZRR70..(Z,ZS)..CBU; ZRR70..ZS..CBU201006-201401

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-28100iZRR7#..CBU,IV5200706-201004

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×5iZRR7#..CBU,IV5200706-201004

53801FENDER SUB-ASSY, FRONT RH

main53801-28100iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201004

main53801-28110iZRR7#..(S,SI)..(CBU,IV5)200706-201004

main53801-28120iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)201004-201401

main53801-28130iZRR7#..(Z,ZS)..(CBU,IV5)200706-201004

53802FENDER SUB-ASSY, FRONT LH

main53802-28170iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201004

main53802-28180iZRR7#..(S,SI)..(CBU,IV5)201004-201401

main53802-28190iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-201004

main53802-28200iZRR7#..(Z,ZS)..(CBU,IV5)200706-201004

53813DEXTENSION, FRONT FENDER

main53813-28090×2iZRR7#..CBU,IV5201004-201005

main53813-28130×2iZRR7#..CBU,IV5201307-201401

main53813-48010×2iZRR7#..CBU,IV5201006-201306

main53813-52020×2iZRR7#..CBU,IV5200706-200711

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-28110iZRR7#..CBU,IV5201004-201211

main53827-28111iZRR7#..CBU,IV5201212-201401

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-28130iZRR7#..CBU,IV5200706-201004

main53828-28131iZRR7#..CBU,IV5201212-201401

75770AMOULDING ASSY, HOOD, FRONT

main75770-28060iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201004

main75770-28070iZRR7#..(S,SI)..(CBU,IV5)200706-201004

main75770-28090iZRR7#..NOAH..(CBU,IV5); ZRR70..(S,SI)..CBU; ZRR70..SI..CBU201004-201401

main75770-D8020iZRR70..(Z,ZS)..CBU; ZRR70..ZS..CBU201006

main75770-D8030-A0iZRR70..(S,SI)..CBU; ZRR70..SI..CBU201006

main75770-D8030-B0iZRR70..(S,SI)..CBU; ZRR70..SI..CBU201006

main75770-D8030-B1iZRR70..(S,SI)..CBU; ZRR70..SI..CBU201006

main75770-D8030-C0iZRR70..(S,SI)..CBU; ZRR70..SI..CBU201006

75777CPAD, HOOD FRONT MOULDING

main75777-28030iZRR7#..NOAH..(CBU,IV5)200706-201004

main75777-28050iZRR7#..NOAH..(CBU,IV5); ZRR70..(S,SI)..CBU; ZRR70..SI..CBU201004-201401

5385747011RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011

6295550010SEAL, ROOF SIDE VENT

main62955-50010

7581933010CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010

8184971010

main81849-71010

9010905094

main90109-05094

9017605019

main90176-05019

9033325001

main90333-25001

9054109069

main90541-09069

9095006096

main90950-06096

91631B0614

main91631-B0614

20 parts on this diagram · 4 diagrams in section
