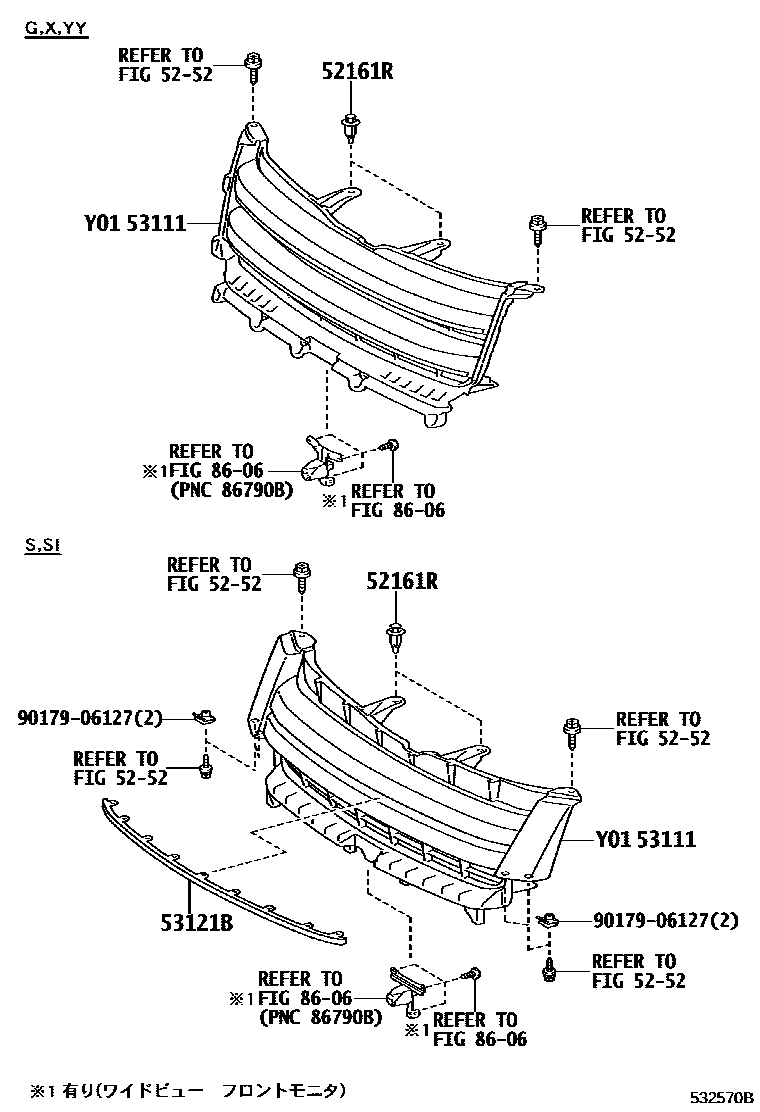

RADIATOR GRILLE

0001 1 0002 1 0003 1 0004 1

52161RPIECE, FRONT BUMPER

main52161-16010iZRR7#..NOAH..(CBU,IV5); ZRR7#..VOXY..(CBU,IV5); ZRR70..(S,SI)..CBU; ZRR70..SI..CBU201004-201401

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53111GRILLE, RADIATOR

main53101-28530iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)201004-201401

main53101-28540iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)201004-201401

main53101-28550-A0iZRR7#..(S,SI)..(CBU,IV5); ZRR70..(S,SI)..CBU; ZRR70..SI..CBU201004-201401

main53101-28550-B0iZRR7#..(S,SI)..(CBU,IV5); ZRR70..(S,SI)..CBU; ZRR70..SI..CBU201004-201401

main53101-28550-B1iZRR7#..(S,SI)..(CBU,IV5); ZRR70..(S,SI)..CBU; ZRR70..SI..CBU201004-201401

main53101-28550-C0iZRR7#..(S,SI)..(CBU,IV5); ZRR70..(S,SI)..CBU; ZRR70..SI..CBU201004-201401

main53101-28550-D0iZRR7#..SI..CBU; ZRR70..SI..CBU201106-201204

main53111-28530-A0iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201004

WHITE PEARL CS.,070

main53111-28530-B0iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201004

SILVER ME.,1F7

main53111-28530-B1iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201004

GRAY ME.,1G3

main53111-28530-C0iZRR7#..NOAH..(G,X,YY)..(CBU,IV5)200706-201004

BLACK,202

main53111-28530-D0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201004

DK. RED M.M.,3Q3

main53111-28530-J0iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201004

DK.BLUE MC.,8S6

main53111-28530-J1iZRR7#..NOAH..(G,X)..(CBU,IV5)200706-201004

LT.BLUE M.M.,8S7

main53111-28530-K0iZRR7#..NOAH..08S..X..CBU200904-201004

LT.PURPLE M.M.,9AE

main53111-28550-A0iZRR7#..(S,SI)..(CBU,IV5)200706-200807

WHITE PEARL CS.,070

main53111-28550-B0iZRR7#..(S,SI)..(CBU,IV5)200706-200807

SILVER ME.,1F7

main53111-28550-B1iZRR7#..(S,SI)..(CBU,IV5)200706-200807

GRAY ME.,1G3

main53111-28550-C0iZRR7#..(S,SI)..(CBU,IV5)200706-200807

BLACK,202

main53111-28551-A0iZRR7#..(S,SI)..(CBU,IV5)200808-201004

WHITE PEARL CS.,070

main53111-28551-B0iZRR7#..(S,SI)..(CBU,IV5)200808-201004

SILVER ME.,1F7

main53111-28551-B1iZRR7#..(S,SI)..(CBU,IV5)200808-201004

GRAY ME.,1G3

main53111-28551-C0iZRR7#..(S,SI)..(CBU,IV5)200808-201004

BLACK,202

main53111-28570iZRR7#..(Z,ZS)..(CBU,IV5)200706-201004

main53111-28640iZRR7#..(Z,ZS)..(CBU,IV5); ZRR70..(Z,ZS)..CBU; ZRR70..ZS..CBU201004-201401

main53111-28550-K0iZRR7#..S200806-201004

main53111-28600iZRR7#..08S..ZS..CBU200806-200905

main53111-28650iZRR7#..ZS..CBU201210-201305

main53111-D8010iZRR70..(S,SI)..CBU; ZRR70..SI..CBU201006

main53111-D8020iZRR70..(Z,ZS)..CBU; ZRR70..ZS..CBU201006

main53114-28080-A0supersedes 53114-28070-A0iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-201004

main53114-28080-B0supersedes 53114-28070-B0iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-201004

main53114-28080-C0supersedes 53114-28070-C0iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-201004

main53114-28080-D0supersedes 53114-28070-D0iZRR7#..VOXY..(V,X)..(CBU,IV5)200706-201004

main53114-28080-J0supersedes 53114-28070-J0iZRR7#..VOXY..(V,X)..(CBU,IV5)200706-201004

main53114-28080-J1supersedes 53114-28070-J1iZRR7#..VOXY..(V,X)..(CBU,IV5)200706-201004

main53114-28080-K0supersedes 53114-28070-K0iZRR7#..VOXY..(TRASX,V,X)..(CBU,IV5)200706-201004

53121BMOULDING, RADIATOR GRILLE, UPPER

main53121-28150-A0×2iZRR7#..(Z,ZS)..(CBU,IV5); ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)200706-201004

main53121-28150-B0×2iZRR7#..(Z,ZS)..(CBU,IV5); ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)200706-201004

main53121-28150-C0×2iZRR7#..(Z,ZS)..(CBU,IV5); ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)200706-201004

main53121-28150-K0×2iZRR7#..(Z,ZS)..(CBU,IV5); ZRR75..08S..(Z,ZS)..CBU;ZRR70..(Z,ZS)..(CBU,IV5)200706-201004

main53121-28160iZRR7#..(S,SI)..(CBU,IV5)200706-201004

main53121-28150-B1×2iZRR7#..08S..ZS..CBU200905-201004

main53121-28170×2iZRR7#..08S..ZS..CBU200806-200905
