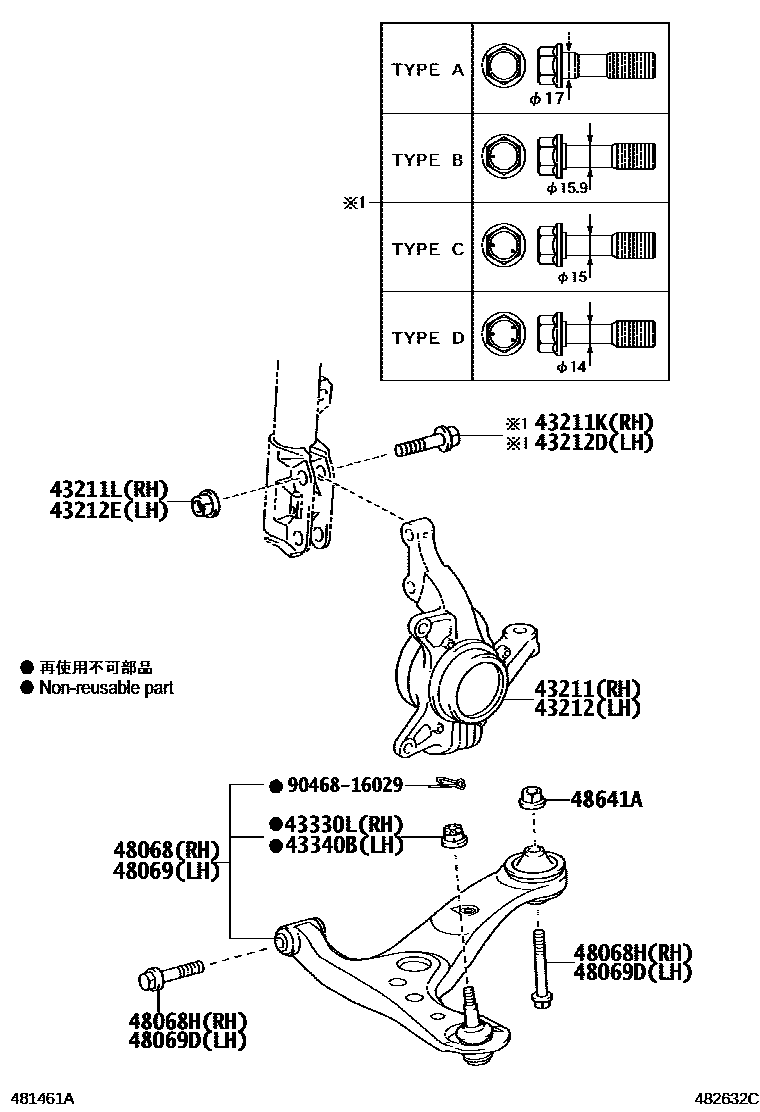

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-44040iZRR70..CBU,IV5201004-201401

main43211-44050iZRR75..CBU,IV5200706-201004

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2iZRR7#..CBU,IV5200706-201004

main90105-17013iZRR7#..CBU,IV5201004-201401

main90105-17014iZRR7#..CBU,IV5200706-201004

main90105-17015iZRR7#..CBU,IV5200706-201004

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001×2iZRR7#..CBU,IV5200706-200811

main90178-17002×2iZRR7#..CBU,IV5201004-201401

43212KNUCKLE, STEERING, LH

main43212-44040iZRR70..CBU,IV5201004-201401

main43212-44050iZRR75..CBU,IV5200706-201004

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2iZRR7#..CBU,IV5200706-201004

main90105-17013iZRR7#..CBU,IV5201004-201401

main90105-17014iZRR7#..CBU,IV5200706-201004

main90105-17015iZRR7#..CBU,IV5200706-201004

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001×2iZRR7#..CBU,IV5200706-200811

main90178-17002×2iZRR7#..CBU,IV5201004-201401

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011iZRR7#..CBU,IV5200706-201004

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011iZRR7#..CBU,IV5200706-201004

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-29255iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

main48068-29265iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086×2iZRR7#..CBU,IV5200706-201004

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-29255iZRR7#..(G,TRASX,V,X,YY)..(CBU,IV5)201004-201401

main48069-29265iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086×2iZRR7#..CBU,IV5200706-201004

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90179-14068×2iZRR7#..CBU,IV5200706-201004

9046816029

main90468-16029

14 parts on this diagram · 1 diagram in section
