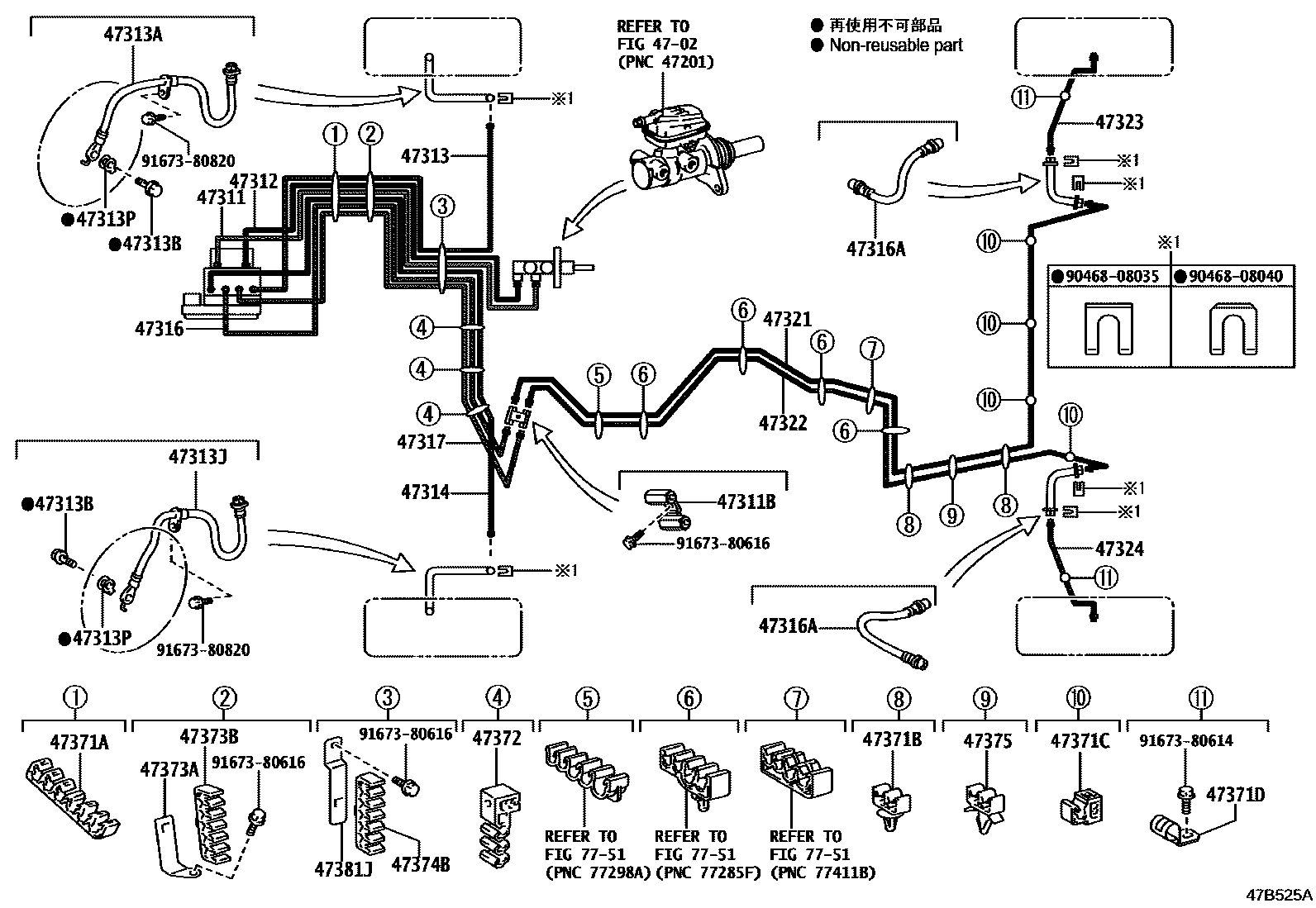

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311TUBE, FRONT BRAKE, NO.1
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47316TUBE, FRONT BRAKE, NO.6
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47317TUBE, FRONT BRAKE, NO.7
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
main47323-28380supersedes 47323-28370iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004
47324TUBE, REAR BRAKE, NO.4
main47324-28280supersedes 47324-28270iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371DCLAMP, BRAKE TUBE, NO.8
47372CLAMP, BRAKE TUBE, NO.2
47373ABRACKET, TUBE CLAMP
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
47381JBRACKET, BRAKE TUBE CLAMP, NO.2
7751FUEL TANK & TUBE
9046808035
main90468-08035
9046808040
main90468-08040
9167380614
main91673-80614
9167380616
main91673-80616
9167380820
main91673-80820
33 parts on this diagram · 8 diagrams in section
