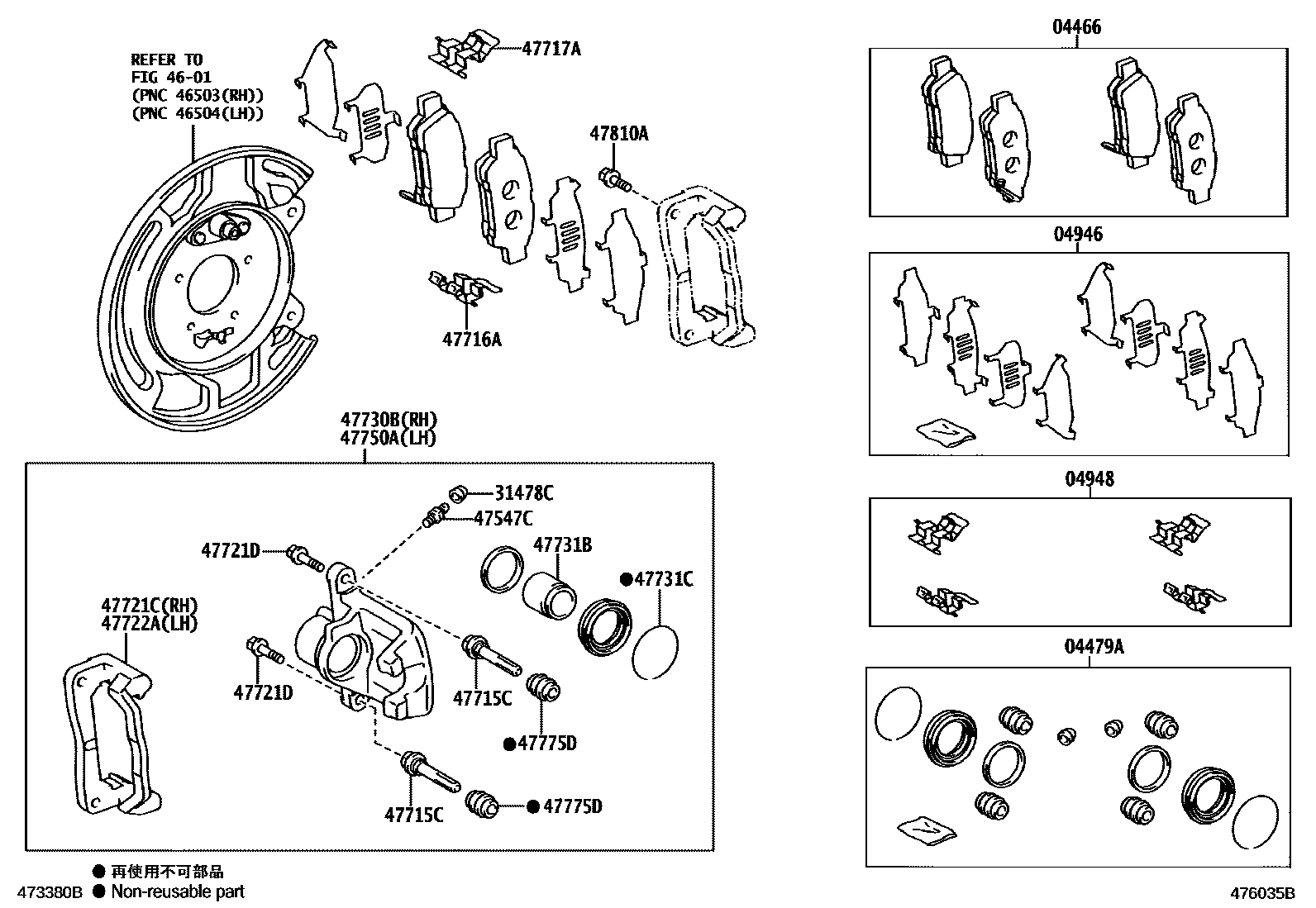

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-44010iZRR70..(G,TRASX,V,X,YY)..HTWVM; ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

main04466-45010iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201001

main04466-D8000iZRR70..(S,SI,Z,ZS)..CBU; ZRR70..(SI,ZS)..CBU201006

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28090iZRR70..(G,TRASX,V,X,YY)..HTWVM; ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)201304-201401

main04479-28170iZRR70..(G,TRASX,V,X,YY)..HTWVM; ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)201004-201304

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-28020iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

04948FITTING KIT, DISC BRAKE, REAR

main04948-28010iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-52010×4iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-28030×2iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-28010×2iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-28020iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164×4iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-28010iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-28270iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47731BPISTON, REAR DISC BRAKE

main47731-28090×2iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-53001×2iZRR70..(G,TRASX,V,X,YY)..HTWVM; ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-28270iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-02130×4iZRR70..(G,TRASX,V,X,YY)..HTWVM; ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)201304-201401

main47775-52010×4iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12185×4iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

19 parts on this diagram · 1 diagram in section
