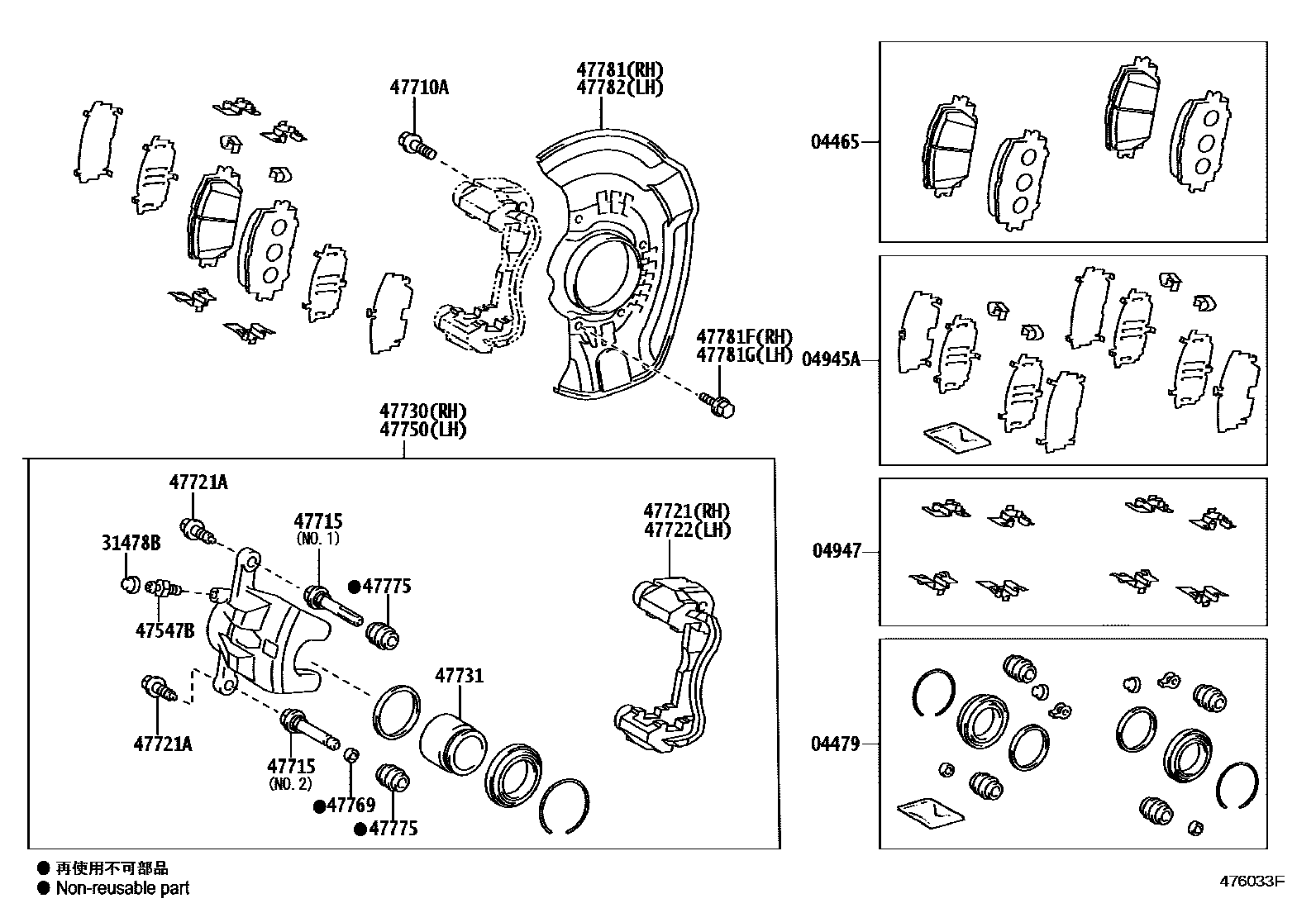

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42160i200706-201309

main04465-42200i201310-201401

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100i200706-201401

04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)

main04945-12100i200706-200905

main04945-12110i200905-201311

main04945-12111i201311-201401

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050i200706-201401

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i200706-201401

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i200706-201401

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i200706-201401

47715PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-12A10i200706-201401

main47715-52190i200706-201401

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-28580i200706-201401

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164i200706-201401

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-28580i200706-201401

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28580i200706-201401

47731PISTON, FRONT DISC BRAKE

main47731-12A70i200706-201401

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28580i200706-201401

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i200706-201401

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190i200706-201401

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28240i200706-201401

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06227i200706-201401

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06227i200706-201401

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28230i200706-201401

20 parts on this diagram · 1 diagram in section
