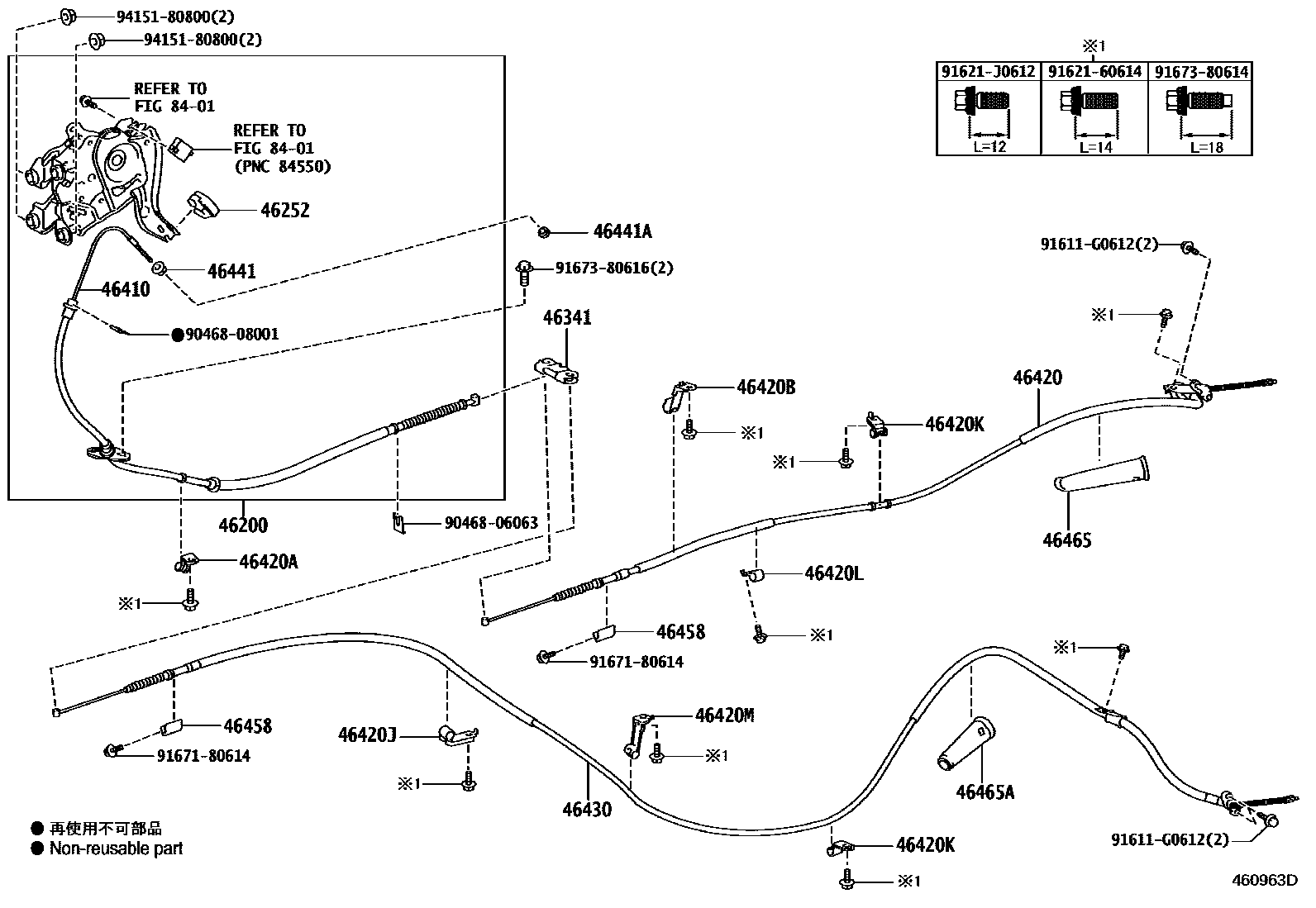

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-28080iZRR7#..CBU,IV5200706-201401

46252PAD, PARKING PEDAL

main46252-52020iZRR7#..CBU,IV5200706-201401

46341EQUALIZER, PARKING BRAKE

main46341-12020iZRR7#..CBU,IV5200706-201401

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28290iZRR7#..CBU,IV5200706-201401

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28480iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201202

sub46420-28481

main46420-28481iZRR70..(G,TRASX,V,X,YY)..HTWVM201203-201401

main46420-28490iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201202

sub46420-28491

main46420-28491iZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)201203-201401

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46411-28010iZRR7#..CBU,IV5200706-201401

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46411-28030iZRR7#..CBU,IV5200706-201401

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46411-28020iZRR7#..CBU,IV5200706-201401

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46467-28070iZRR7#..CBU,IV5200804-201401

main90949-01C69iZRR7#..CBU,IV5200706-200804

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main90949-01C71iZRR7#..CBU,IV5200706-201401

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main90949-01C87iZRR7#..CBU,IV5200706-201401

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28480iZRR70..(G,TRASX,V,X,YY)..HTWVM200706-201202

sub46430-28481

sub46465-28030

main46430-28481iZRR70..(G,TRASX,V,X,YY)..HTWVM201203-201401

main46430-28490iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201202

sub46430-28491

sub46465-28030

main46430-28491iZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)201203-201401

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iZRR7#..CBU,IV5200706-201401

46441ANUT, WIRE ADJUSTING, NO.2

main94151-80600iZRR7#..CBU,IV5200706-201401

46458RETAINER, CABLE

main46458-28010iZRR7#..CBU,IV5200706-201401

46465GUIDE, PARKING BRAKE CABLE, RH

main46465-44010iZRR7#..CBU,IV5200706-201401

46465AGUIDE, PARKING BRAKE CABLE, LH

main46465-28030iZRR7#..CBU,IV5201203-201401

main46465-44020iZRR7#..CBU,IV5200706-201202

sub46465-28030

8401

9046806063

main90468-06063

9046808001

main90468-08001

91611G0612

main91611-G0612

9162160614

main91621-60614

91621J0612

main91621-J0612

9167180614

main91671-80614

9167380614

main91673-80614

9167380616

main91673-80616

9415180800

main94151-80800

27 parts on this diagram · 2 diagrams in section
