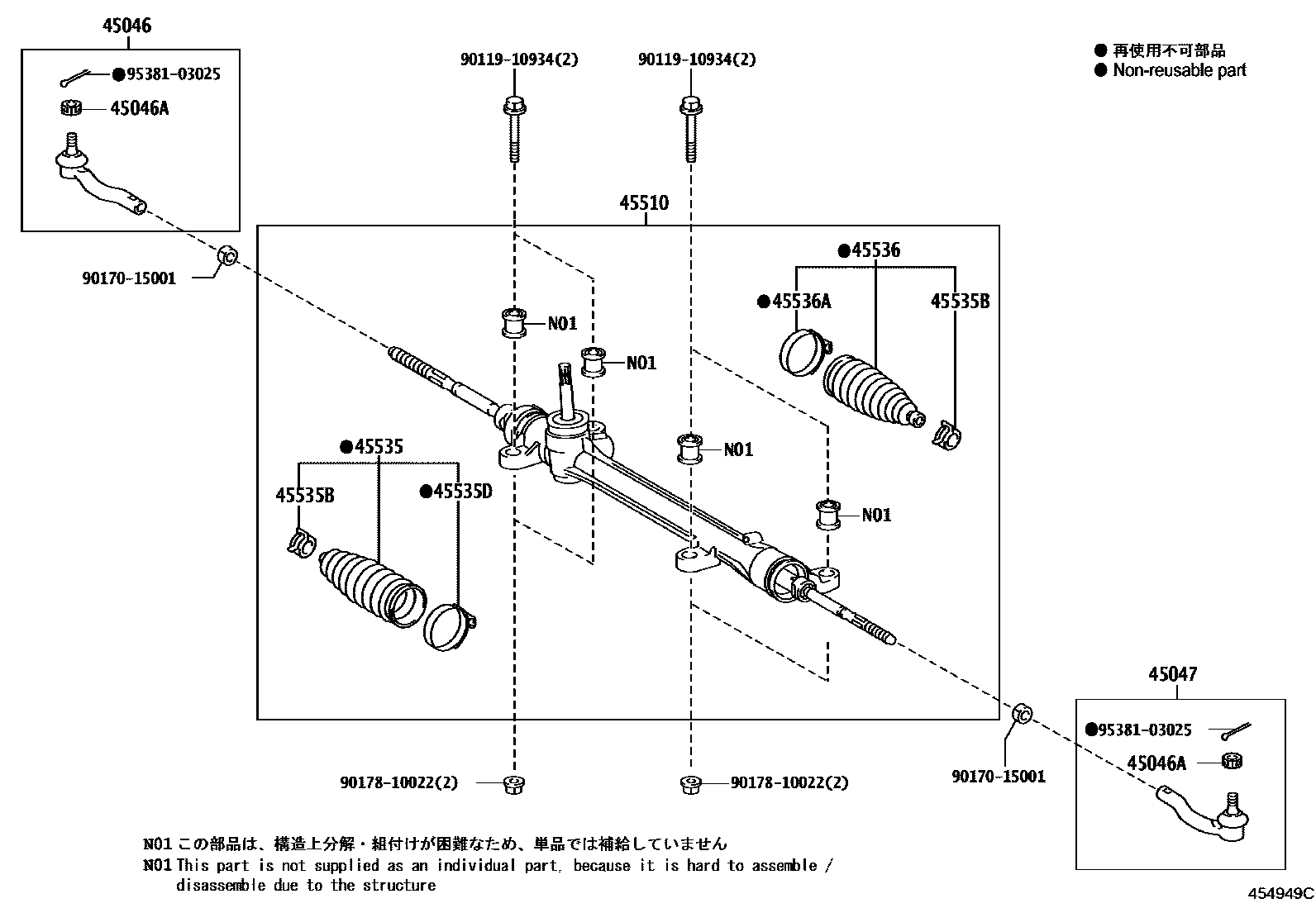

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

45046END SUB-ASSY, TIE ROD, RH

main45046-29255iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201303

main45046-49095iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main45046-59115iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)201304-201401

main45047-49025iZRR70..(G,TRASX,V,X,YY)..HTWVM200706-201401

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZRR7#..CBU,IV5200706-201401

45047END SUB-ASSY, TIE ROD, LH

main45046-29255iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)200706-201303

main45046-49095iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

main45046-59115iZRR7#..(S,SI,Z,ZS)..(CBU,IV5)201304-201401

main45047-49025iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201401

45510GEAR ASSY, STEERING

main45510-28120iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200710

sub45510-28121

main45510-28121iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200711-201304

sub45510-28122

main45510-28122iZRR70..(G,TRASX,V,X,YY)..HTWVM201305-201401

main45510-28130iZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-200710

sub45510-28131

main45510-28131iZRR70..(S,SI,Z,ZS)..(CBU,IV5)200711-201401

main45510-28140iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200706-200711

sub45510-28141

main45510-28141iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)200712-201401

main45510-28150iZRR75..(S,SI,Z,ZS)..CBU200706-200711

sub45510-28151

main45510-28151iZRR75..(S,SI,Z,ZS)..CBU200712-201401

45535BOOT, STEERING RACK, NO.1

main45535-29015iZRR7#..CBU,IV5200706-201401

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iZRR7#..CBU,IV5200706-201401

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iZRR7#..CBU,IV5200706-201401

45536BOOT, STEERING RACK, NO.2

main45535-29015iZRR7#..CBU,IV5200706-201401

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iZRR7#..CBU,IV5200706-201401

9011910934

main90119-10934

9017015001

main90170-15001

9017810022

main90178-10022

9538103025

main95381-03025

13 parts on this diagram · 4 diagrams in section
