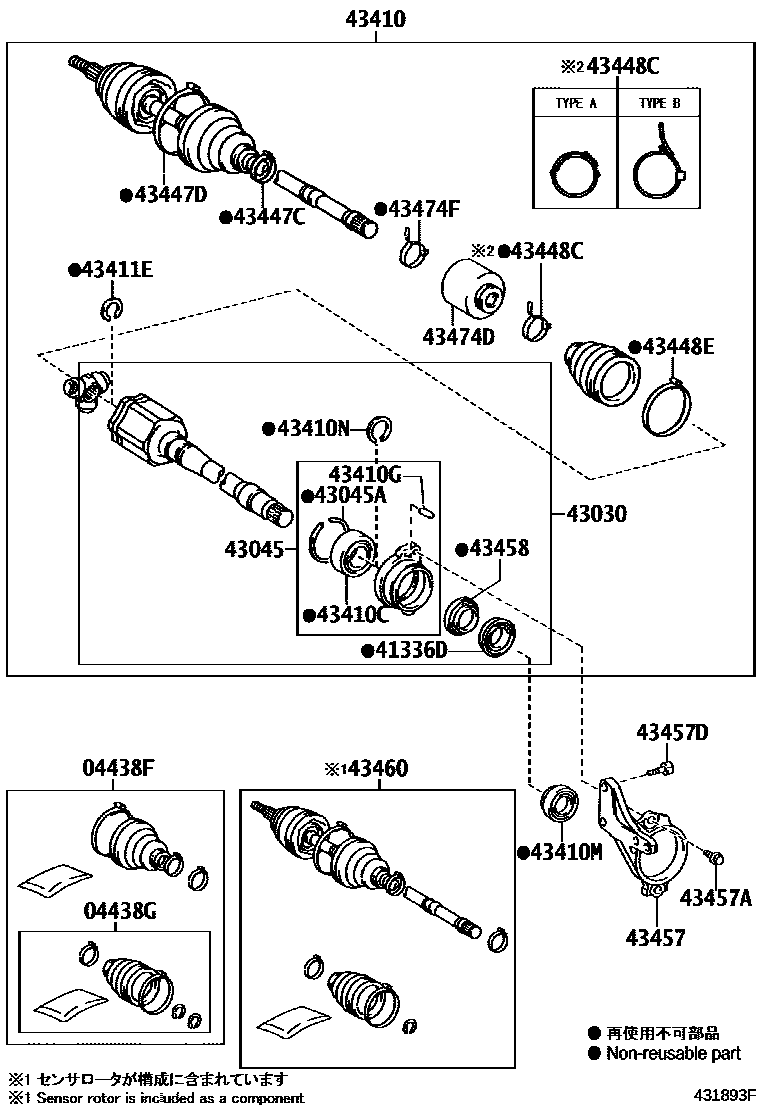

FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1���

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-28190iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200809-201004

main04428-58030iZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-42180iZRR7#..CBU,IV5201004-201401

main04438-58020iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZRR70..CBU,IV5201004-201401

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-28011iZRR70..(G,TRASX,V,X,YY)..HTWVM201004-201401

main43030-28031iZRR75..CBU,IV5200706-201004

main43030-44021iZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-64020iZRR70..CBU,IV5200706-201004

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main90520-69002iZRR70..CBU,IV5201004-201401

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-28090iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)201004-201401

main43410-28130iZRR70..(G,TRASX,V,X,YY)..HTWVM201004-201401

main43410-28140iZRR75..(S,SI,Z,ZS)..CBU201004-201401

main43410-44040iZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

main43410-44041iZRR70..(S,SI,Z,ZS)..(CBU,IV5)201305-201401

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iZRR75..CBU,IV5201004-201401

main90363-41003iZRR70..CBU,IV5200706-201004

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iZRR70..CBU,IV5200706-201004

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40026iZRR70..CBU,IV5200706-201004

main90311-40041iZRR70..CBU,IV5201303-201401

main90316-28003iZRR75..CBU,IV5200706-201004

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iZRR75..CBU,IV5201004-201401

main90520-38015iZRR70..CBU,IV5201004-201401

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iZRR7#..CBU,IV5200706-201004

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-20040iZRR7#..CBU,IV5200706-200808

main42345-42100iZRR7#..CBU,IV5200809-201004

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-28020iZRR7#..CBU,IV5200706-200808

main42345-42090iZRR7#..CBU,IV5200809-201004

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-42010iZRR7#..CBU,IV5200706-201004

main90949-01559iZRR7#..CBU,IV5201004-201401

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iZRR7#..CBU,IV5200706-201004

43457BRACKET, DRIVE SHAFT BEARING

main43457-28060iZRR70..CBU,IV5201004-201401

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10361×2iZRR70..CBU,IV5200706-201004

main90901-19060iZRR75..CBU,IV5200706-201004

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iZRR70..CBU,IV5201004-201401

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iZRR70..CBU,IV5200706-201004

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29665iZRR75..(S,SI,Z,ZS)..CBU200706-201004

main43460-49365iZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

main43470-80171iZRR75..(G,TRASX,V,X,YY)..(CBU,IV5)201004-201401

main43470-80178iZRR70..(G,TRASX,V,X,YY)..HTWVM201004-201401

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-28010iZRR70..(S,SI,Z,ZS)..(CBU,IV5)201004-201401

main43474-44010iZRR75..CBU,IV5;ZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010iZRR7#..CBU,IV5200706-201004

23 parts on this diagram · 3 diagrams in section
