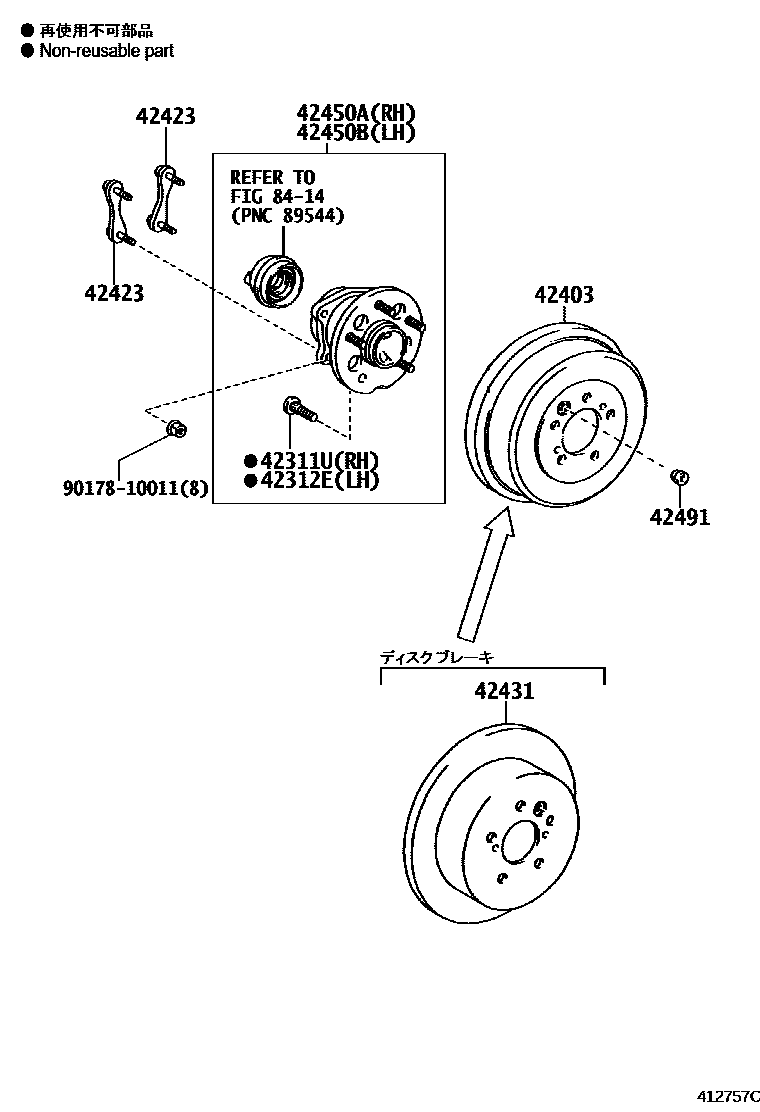

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iZRR7#..CBU,IV5200706-201004

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iZRR7#..CBU,IV5200706-201004

42403DRUM SUB-ASSY, REAR BRAKE

main42431-28100×2iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5)200706-201004

42423RETAINER, REAR AXLE BEARING, INNER

main42423-28020×4iZRR70..CBU,IV5200706-201004

42431DISC, REAR

main42431-28140×2iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-28040iZRR70..CBU,IV5200706-201004

main42450-28041iZRR70..CBU,IV5201310-201401

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-28040iZRR70..CBU,IV5200706-201004

main42450-28041iZRR70..CBU,IV5201310-201401

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2supersedes 47491-14010iZRR70..(G,TRASX,V,X,YY)..(CBU,IV5); ZRR75..CBU,IV5;ZRR70..(S,SI,Z,ZS)..(CBU,IV5)200706-201004

8414ABS & VSC

→ Go to FIG 84-14

9017810011

main90178-10011
