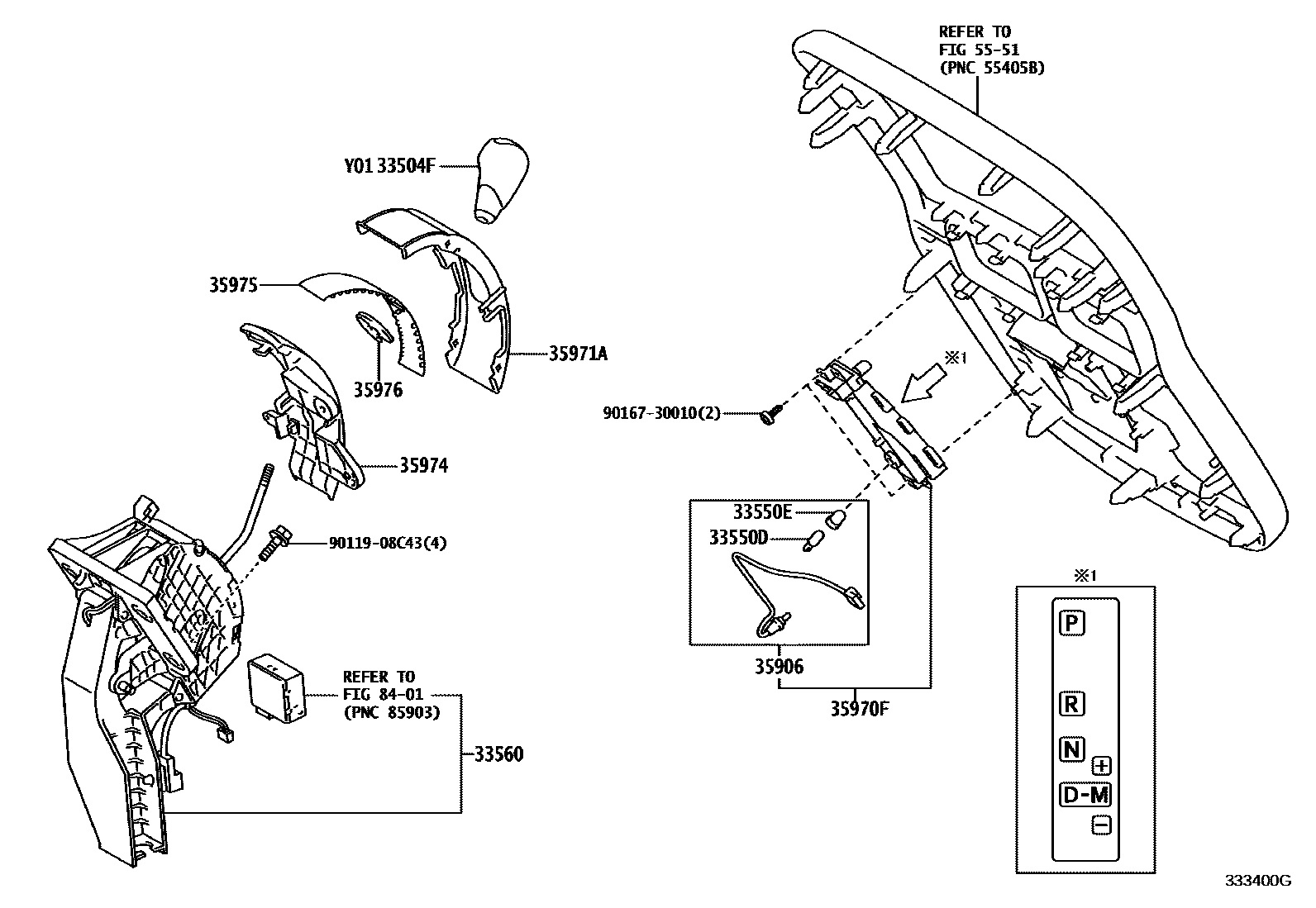

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-28020-B0iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)200706-201004

DK.GRAY,TRIM1#

sub33504-28020

sub33504-58030

main33504-28020-E0iZRR7#..NOAH..X..(CBU,IV5)200706-201004

GREGE,TRIM4#

sub33504-28020

sub33504-58030

main33504-28030-B0iZRR7#..HTWVM..(CBU,IV5)200706-201004

DK.GRAY,TRIM1#

sub33504-72020

sub33504-28030

main33504-28040-B1iZRR7#..V200706-201004

DK.GRAY,TRIM1#

sub33504-28040

main33504-28040-C1iZRR7#..V201004-201401

BLACK & DARK GRAY,TRIM2#

sub33504-28040

main33504-28040-E1iZRR7#..G200706-201004

GREGE,TRIM4#

sub33504-28040

main33504-28040-E5iZRR7#..G201004-201401

ASH BROWN & IVORY,TRIM4#

sub33504-28040

main33504-28060-C0iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)201004-201401

BLACK,TRIM2#

sub33504-74011

main33504-28060-E0iZRR7#..NOAH..X..(CBU,IV5)201004-201401

ASH BROWN,TRIM4#

sub33504-74011

main33504-28070-C0iZRR7#..(SI,ZS)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main33504-28070-E0iZRR7#..SI..CBU201106-201204

ASH BROWN,TRIM4#

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iZRR7#..CBU,IV5200706-201401

33550ECAP, POSITION INDICATOR LAMP

main35956-58010iZRR7#..CBU,IV5200706-201401

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-28060iZRR7#..(G,SI,V,ZS)..(CBU,IV5)201004-201401

main33560-28060iZRR7#..X..IV5201004-201401

main33560-28060iZRR7#..HTWVM..(CBU,IV5)200706-201004

main33560-28070iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)200706-201004

main33560-28080iZRR7#..HTWC..IV5200706-201004

main33560-28080iZRR7#..G,V200706-201004

main33560-28090iZRR7#..(S,TRASX,X,YY,Z)..(CBU,IV5)201004-201401

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-28040iZRR7#..CBU,IV5200706-201401

35970FHOUSING ASSY, POSITION INDICATOR

main35970-28050iZRR7#..HTWVM..(CBU,IV5)200706-201004

main35970-28060iZRR7#..HTWC..(CBU,IV5)200706-201004

main35970-28110iZRR7#..CBU,IV5201004-201401

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-28050iZRR7#..CBU,IV5200706-201401

35974HOUSING, POSITION INDICATOR, LOWER

main35974-28070iZRR7#..CBU,IV5200706-201401

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-28040iZRR7#..CBU,IV5200706-201401

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-28010iZRR7#..CBU,IV5200706-201401

5551

8401

9011908C43

main90119-08C43

9016730010

main90167-30010

14 parts on this diagram · 3 diagrams in section
