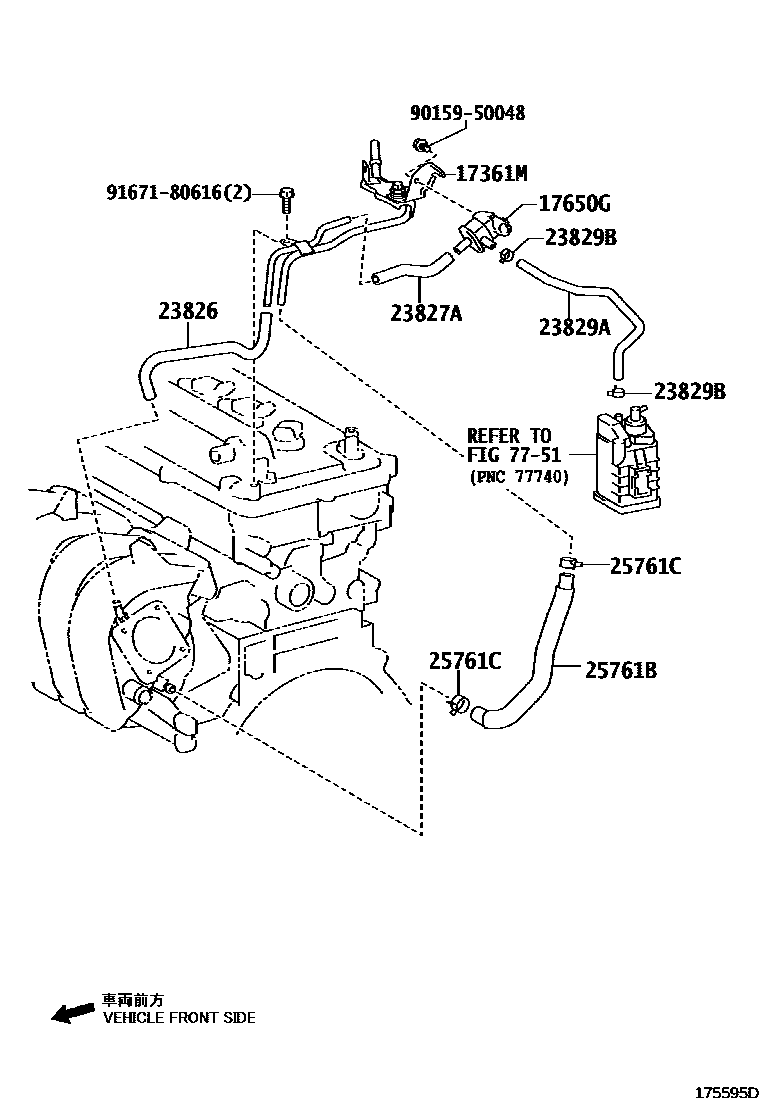

VACUUM PIPING

0001 1 0002 1 0003 1

17361MTUBE, AIR

main17361-37010i3ZRFE..ZRR7#..CBU,IV5200706-200910

main17361-37011i3ZRFE..ZRR7#..CBU,IV5200910-201004

main17361-37020i3ZRFAE..ZRR7#..CBU,IV5201004-201401

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37020i3ZRFE..ZRR7#..CBU,IV5200706-200910

main23826-37021i3ZRFE..ZRR7#..CBU,IV5200910-201004

main23826-37050i3ZRFAE..ZRR7#..CBU,IV5201004-201401

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37020i3ZRFE..ZRR7#..CBU,IV5200706-201004

main23827-37030i3ZRFAE..ZRR7#..CBU,IV5200706-201004

23829AHOSE, FUEL VAPOR FEED

main23826-37040i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51100×2i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-37010i3ZRFE..ZRR7#..CBU,IV5200706-200910

main25761-37011i3ZRFE..ZRR7#..CBU,IV5200910-201004

25761CCLIP(VACCUM TRANSMITTING HOSE NO.1)

main96133-41500×2i3ZRFE..ZRR7#..CBU,IV5200910-201004

main96136-41801×2i3ZRFE..ZRR7#..CBU,IV5200706-200910

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9015950048

main90159-50048

9167180616

main91671-80616

11 parts on this diagram · 3 diagrams in section
