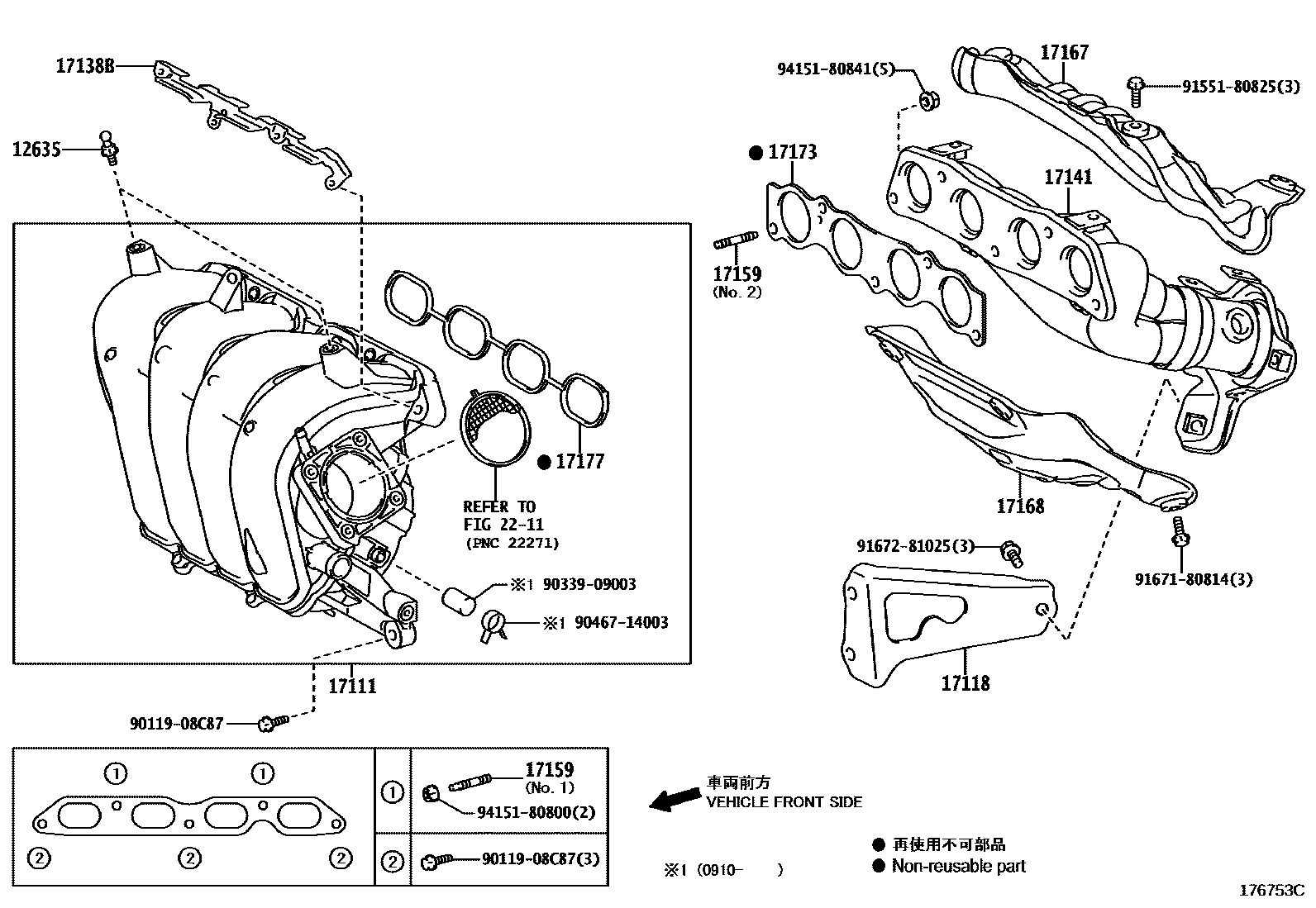

MANIFOLD

0001 1 0002 1 0003 1 0004 1

12635JOINT, ENGINE COVER

main90109-06385×2i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

17111MANIFOLD, INTAKE

main17120-37010i3ZRFAE..ZRR7#..CBU,IV5200706-200805

main17120-37011i3ZRFAE..ZRR7#..CBU,IV5200805-201004

main17120-37030i3ZRFE..ZRR7#..CBU,IV5200706-200910

main17120-37031i3ZRFE..ZRR7#..CBU,IV5200910-201004

17118STAY, MANIFOLD

main17118-37050i3ZRFAE,3ZRFE..ZRR70..CBU,IV5200706-201004

main17118-37060i3ZRFAE,3ZRFE..ZRR75..CBU,IV5200706-201004

17138BSTAY, INTAKE MANIFOLD

main17138-37010i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

main17138-37011i3ZRFAE..ZRR7#..CBU,IV5201305-201401

17141MANIFOLD, EXHAUST

main17141-37080i3ZRFAE,3ZRFE..ZRR70..CBU,IV5200706-201004

main17141-37090i3ZRFAE,3ZRFE..ZRR75..CBU,IV5200706-201004

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

main90126-08052×5i3ZRFAE..ZRR7#..CBU,IV5201004-201401

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-37050i3ZRFAE..ZRR70..CBU,IV5201004-201401

main17167-37060i3ZRFAE..ZRR75..CBU,IV5201004-201401

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37070i3ZRFAE,3ZRFE..ZRR70..CBU,IV5200706-201004

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i3ZRFAE,3ZRFE..ZRR7#..CBU,IV5200706-201004

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9011908C87

main90119-08C87

9033909003

main90339-09003

9046714003

main90467-14003

9155180825

main91551-80825

9167180814

main91671-80814

9167281025

main91672-81025

9415180800

main94151-80800

9415180841

main94151-80841

19 parts on this diagram · 4 diagrams in section
