ENGINE OVERHAUL GASKET KIT

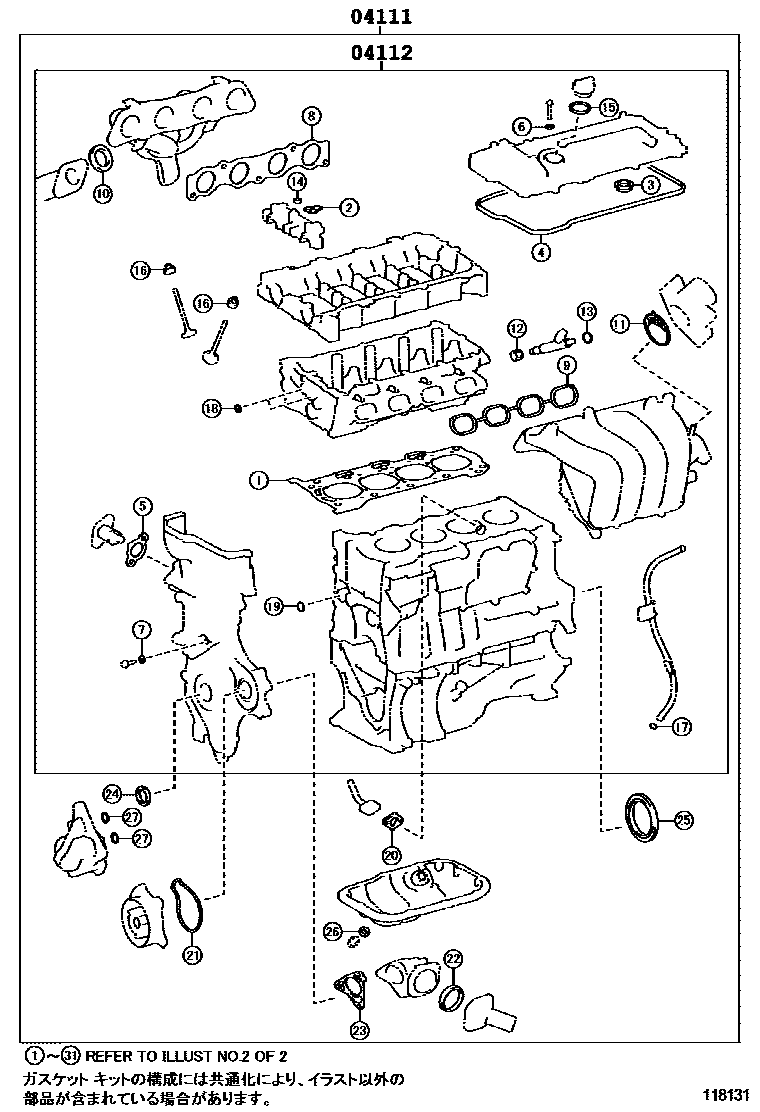

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-37180i200706-200903
sub04111-37181
main04111-37181i200903-201004
sub04111-37183
main04111-37190i200706-200903
sub04111-37191
main04111-37191i200903-201004
sub04111-37192
main04111-37200i200706-200903
sub04111-37201
main04111-37201i200903-201110
sub04111-37203
main04111-37203i201110-201202
sub04111-37204
main04111-37204i201203-201401
sub04111-37205
main04111-37210i200706-200903
sub04111-37211
main04111-37211i200903-201004
sub04111-37212
04112GASKET KIT, ENGINE VALVE GRIND
main04112-37120i200706-200903
sub04112-37121
main04112-37121i200903-201004
sub04112-37122
main04112-37140i200706-200903
sub04112-37141
main04112-37141i200903-201004
sub04112-37221
main04112-37150i200706-200903
sub04112-37151
main04112-37151i200903-201004
sub04112-37212
main04112-37160i200706-200903
sub04112-37161
main04112-37161i200903-201004
sub04112-37073
main04112-37221i201004-201110
sub04112-37222
main04112-37222i201110-201202
sub04112-37223
main04112-37223i201203-201401
sub04112-37224

2 parts on this diagram · 8 diagrams in section
