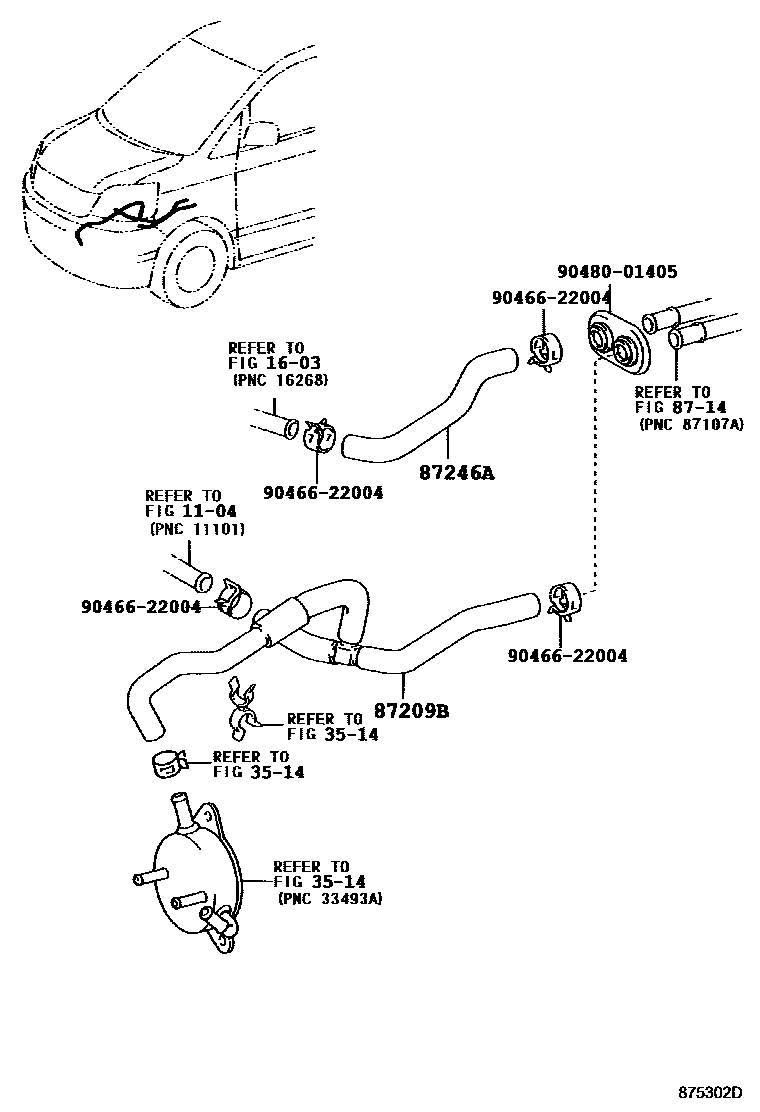

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1��(�� �-�) 0003 1 0004 1��(�� �-�)

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87209HOSE SUB-ASSY, WATER

main87209-28680iAZR6#200111-200408

main87209-28730iAZR6#200408

87209BHOSE SUB-ASSY, WATER, B

main87209-28660iAZR6#200111-200408

main87209-28670iAZR6#..S,X,Z200111-200408

main87209-28740iAZR6#200408

87246HOSE, HEATER WATER, OUTLET

main87245-28A00iAZR6#..05S,08S200408

87246AHOSE, HEATER WATER, OUTLET A

main87245-2J720iAZR6#..S,X,Z200111-200408

main87245-2J730iAZR6#200111-200408

9046622004

main90466-22004

9048001405

main90480-01405

10 parts on this diagram · 4 diagrams in section
