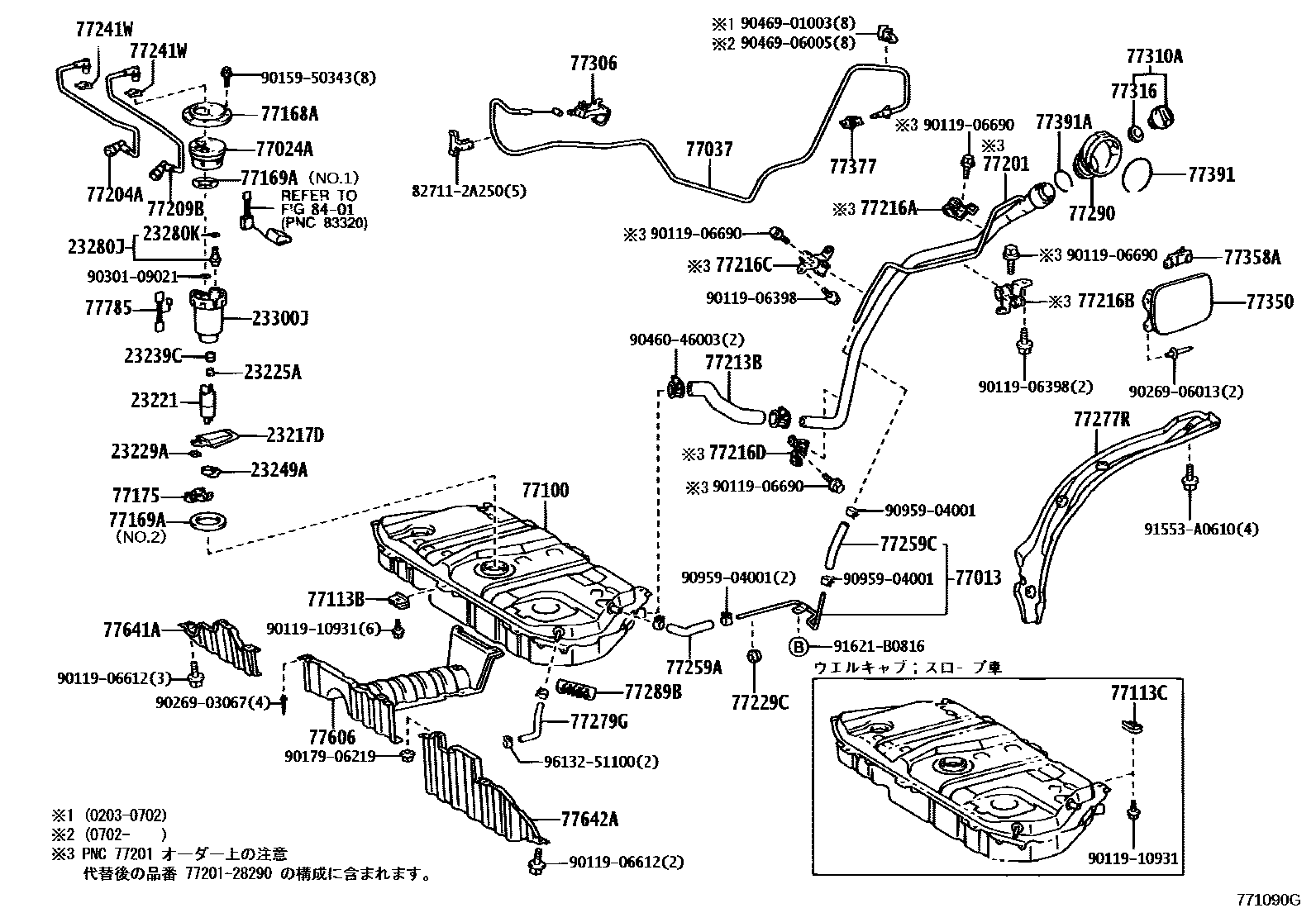

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23225ASPACER, FUEL PUMP
23229ACLIP(FOR FUEL PUMP FILTER)
23239CSEAL, FUEL PUMP FILTER
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
23300JFILTER ASSY, FUEL
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77113BPLATE, FUEL TANK SIDE
77113CPLATE, FUEL TANK SIDE
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
77204ATUBE, FUEL TANK RETURN
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77216CSUPPORT, FUEL TANK FILLER PIPE NO.3
77216DSUPPORT, FUEL TANK FILLER PIPE NO.4
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77259AHOSE, FUEL(FOR BREATHER TUBE)
77259CHOSE, FUEL
77277RPROTECTOR, FUEL TANK FILLER PIPE
77279GHOSE, FUEL, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
BLACK,TRIM19
BLACK,TRIM19,41
BLACK
BLACK
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77358ASTOPPER, FUEL FILLER OPENING LID
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77785HARNESS, FUEL PUMP
8401SWITCH & RELAY & COMPUTER
827112A250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2A250
9011906398
main90119-06398
9011906612
main90119-06612
9011906690
main90119-06690
9011910931
main90119-10931
9015950343
main90159-50343
9017906219
main90179-06219
9026903067
main90269-03067
9026906013
main90269-06013
9030109021
main90301-09021
9046046003
main90460-46003
9046901003
main90469-01003
9046906005
main90469-06005
9095904001
main90959-04001
91553A0610
main91553-A0610
91621B0816
main91621-B0816
9613251100
main96132-51100
64 parts on this diagram · 4 diagrams in section
