BATTERY CARRIER

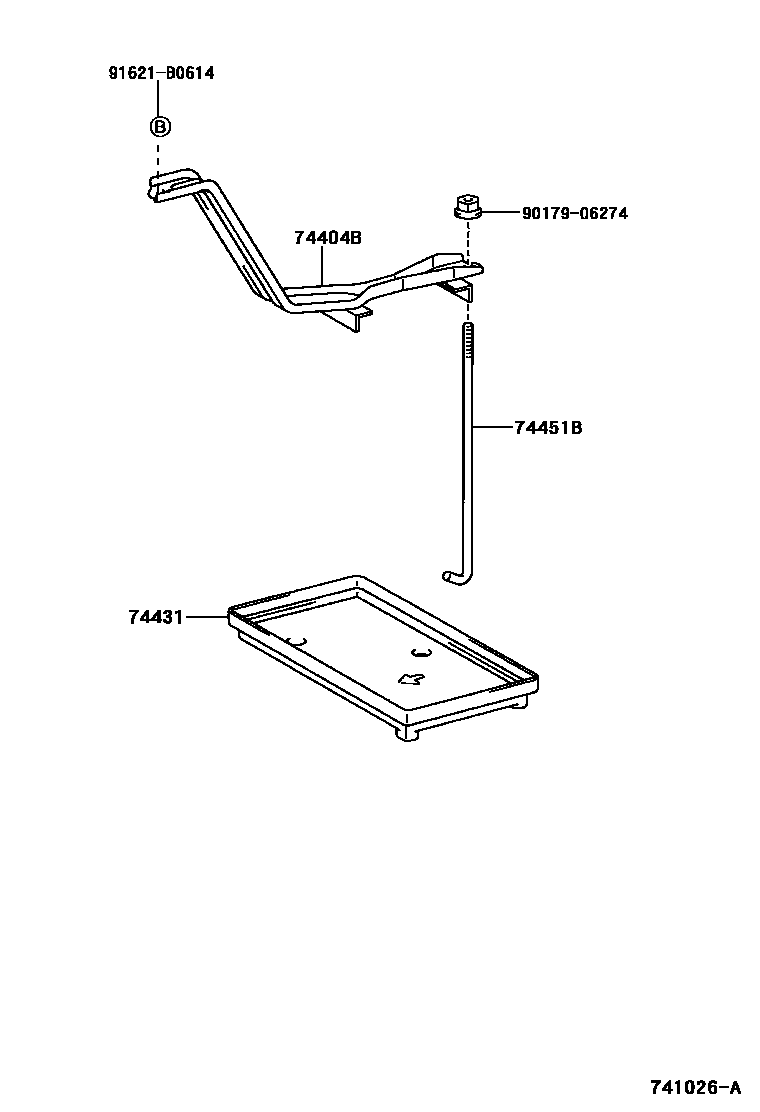

Parts diagram
74404BCLAMP SUB-ASSY, BATTERY
main74404-28150i200111-200408
main74404-28160i200111-200408
74431TRAY, BATTERY
main74431-20090i200111-200408
main74431-28010i200111-200408
main74450-44010i200408
sub74431-44050
sub28865-28030
74451BBOLT, BATTERY CLAMP
main74451-10060i200111-200408
9017906274
main90179-06274
91621B0614
main91621-B0614

5 parts on this diagram · 2 diagrams in section
