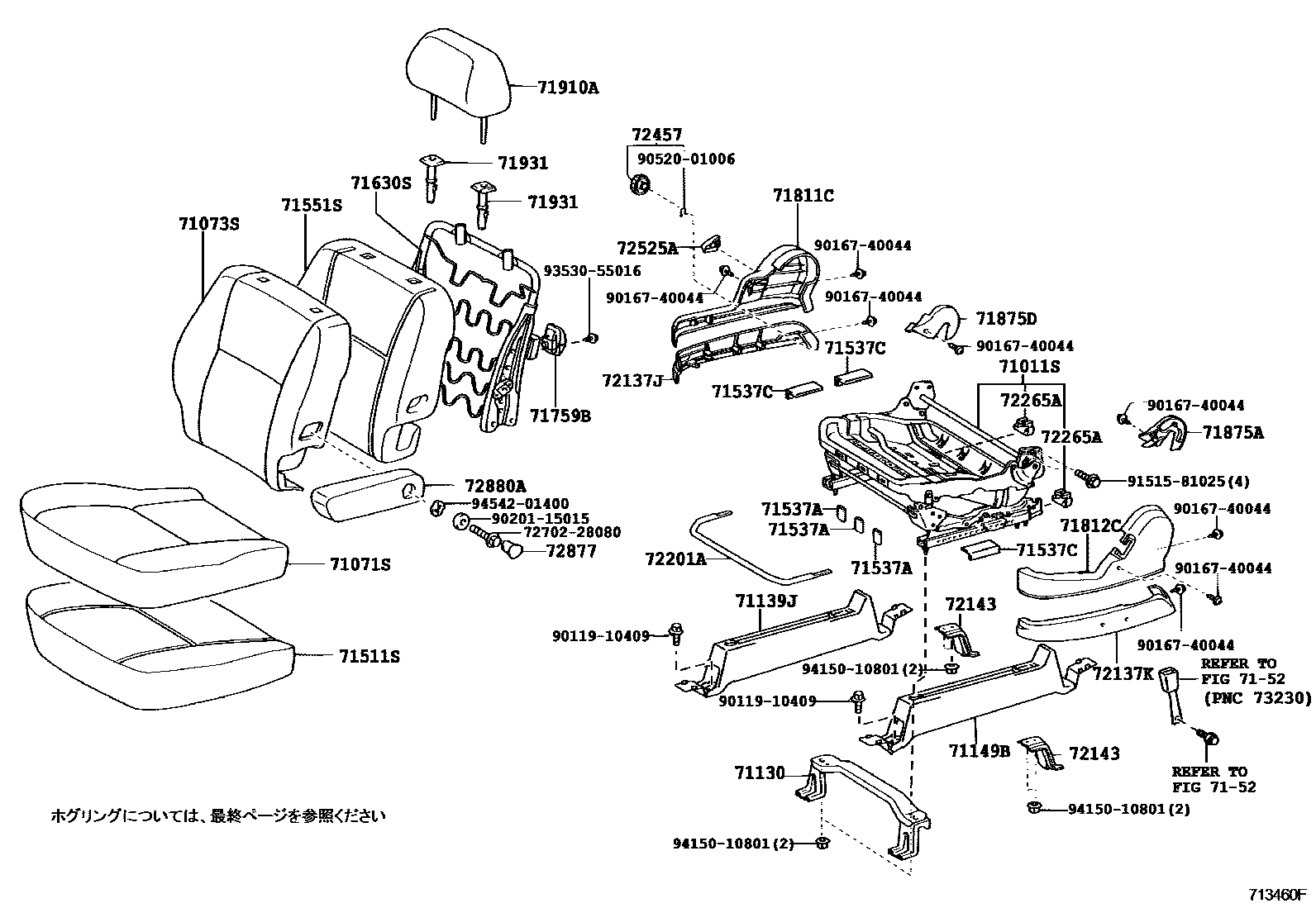

SEAT & SEAT TRACK

0001 1������ ��(SRS ���� �������) 0002 1������ ��(SRS ���� ������) 0003 1������� ��(SRS ���� �������) 0005 1������� ��(SRS ���� ������) 0007 1������� ��(SRS ���� �������) 0008 1������� ��(SRS ���� ������) 0009 1�� NO.1 ���(�����)RH 0010 1�� NO.1 ��� (�����)LH 0011 1�� NO.1 ��� - RH/CTR (����) 0012 1�� NO.1 ��� - LH (����) 0013 1�� NO.1 ��� - RH (���� ������0014 1�� NO.1 ��� - LH (���� ������0015 1�� ��� - RH 0016 1�� ��� - LH 0017 1�� NO.2 ��� - RH 0018 1�� NO.2 ��� - LH 0019 1����� ��� ���� 0020 1 0021 1�������

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71110-28050iAZR6#200111-200408

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-28A00-A2iAZR6#..NOAH..X200408-200706

main71071-28A00-B1iAZR6#..X200408-200706

main71071-28A50-B0iAZR6#..4HC..Z200308-200407

main71071-28A60-A2iAZR6#..NOAH..X200408-200706

main71071-28A60-B1iAZR6#..X200408-200706

main71071-28A70-B0iAZR6#..S,YY200408-200706

main71071-28A80-B0iAZR6#..TRASX,Z200408-200706

main71071-28C00-A0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),IVORY,TRIM42

main71071-28C00-B0iAZR6#..NOAH..08S..X200504

main71071-28C10-A0iAZR6#..NOAH..08S..X200607-200705

main71071-28C10-B0iAZR6#..NOAH..08S..X200504

main71071-2J680-A0iAZR6#..NOAH..X200111-200408

IVORY,TRIM4#

main71071-2J680-B0iAZR6#..NOAH..X200111-200408

DARK GRAY,TRIM1#

main71071-2J810-A0iAZR6#..NOAH..X200111-200408

main71071-2J810-B0iAZR6#..NOAH..X200111-200408

main71071-2J820-A0iAZR6#..NOAH..X200408-200706

main71071-2J820-B0iAZR6#..L,V200111-200408

main71071-2J830-A0iAZR6#..NOAH..X200408-200706

main71071-2J830-B0iAZR6#..X200408-200706

main71071-2J840-B0iAZR6#..S200111-200408

DARK GRAY,TRIM1#

main71071-2J850-B0iAZR6#..S200111-200408

main71071-2J880-B0iAZR6#..Z200111-200408

DARK GRAY,TRIM1#

main71071-2J890-B0iAZR6#..Z200111-200408

main71071-2R010-B0iAZR6#..VOXY..X200111-200408

DARK GRAY,TRIM1#

main71071-2R020-B0iAZR6#..VOXY..X200111-200408

main71071-2R120-B0iAZR6#..S,YY200408-200706

DK.GRAY,TRIM1#

main71071-2R240-B0iAZR6#..TRASX,Z200408-200706

DK.GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71027-28130-A2iAZR6#..NOAH..08S..X200408-200706

main71027-28130-B1iAZR6#..08S..X200408-200706

main71073-28A10-A2iAZR6#..NOAH..08S..X200408-200706

main71073-28A10-B1iAZR6#..08S..X200408-200706

main71073-28A60-B0iAZR6#..4HC..Z200308-200407

main71073-28A70-B0iAZR6#..S,YY200408-200706

main71073-28A80-B0iAZR6#..TRASX,Z200408-200706

main71073-28B20-A2iAZR6#..NOAH..X200408-200706

main71073-28B20-B1iAZR6#..X200408-200706

main71073-28B30-A2iAZR6#..NOAH..X200408-200706

main71073-28B30-B1iAZR6#..X200408-200706

main71073-28C90-A0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),IVORY,TRIM42

main71073-28C90-B0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),GRAY,TRIM18

main71073-28D00-A0iAZR6#..NOAH..08S..X200607-200705

main71073-28D00-B0iAZR6#..NOAH..08S..X200607-200705

main71073-2R120-B0iAZR6#..Z200111-200408

main71073-2R140-A0iAZR6#..NOAH..X200111-200408

IVORY,TRIM4#

main71073-2R140-B0iAZR6#..NOAH..X200111-200408

DARK GRAY,TRIM1#

main71073-2R150-A0iAZR6#..NOAH..X200111-200408

main71073-2R150-B0iAZR6#..NOAH..X200111-200408

main71073-2R160-B0iAZR6#..S200111-200408

main71073-2R170-A0iAZR6#..NOAH..X200408-200706

main71073-2R170-B0iAZR6#..X200408-200706

main71073-2R180-B0iAZR6#..Z200111-200408

main71073-2R200-A0iAZR6#..NOAH..X200111-200408

main71073-2R200-B0iAZR6#..NOAH..X200111-200408

main71073-2R260-A0iAZR6#..NOAH..X200111-200408

main71073-2R260-B0iAZR6#..NOAH..X200111-200408

main71073-2R270-A0iAZR6#..L200111-200408

main71073-2R270-B0iAZR6#..L,V200111-200408

main71073-2R280-B0iAZR6#..VOXY..X200111-200408

DARK GRAY,TRIM1#

main71073-2R290-B0iAZR6#..VOXY..X200111-200408

main71073-2R300-B0iAZR6#..S200111-200408

main71073-2R320-B0iAZR6#..VOXY..X200111-200408

main71073-2R330-B0iAZR6#..NOAH..4HC..X200212-200308

main71073-2R340-B0iAZR6#..Z200111-200408

DARK GRAY,TRIM1#

main71073-2R350-B0iAZR6#..VOXY..X200111-200408

main71073-2R360-B0iAZR6#..S200111-200408

main71073-2R370-B0iAZR6#..Z200111-200408

main71073-2R420-B0iAZR6#..S,YY200408-200706

DK.GRAY,TRIM1#

main71073-2R430-B0iAZR6#..TRASX,Z200408-200706

DK.GRAY,TRIM1#

71130LEG ASSY, FRONT SEAT, RH

main71130-28020iAZR6#200111-200308

main71130-28040iAZR6#200308-200408

71139JCOVER, FRONT SEAT LEG, RH(FOR RH SEAT)

main71139-28090-B0iAZR6#200408-200706

DK.GRAY,TRIM1#

main71139-28090-E0iAZR6#..NOAH..X200408-200706

SANDAL WOOD,TRIM4#

71149BCOVER, FRONT SEAT LEG, LH (FOR RH SEAT)

main71149-28070-B0iAZR6#200111-200408

main71149-28070-E0iAZR6#..NOAH..(L,X)200111-200408

main71149-28080-B0iAZR6#..05S,08S200408-200706

DK.GRAY,TRIM1#

main71149-28080-E0iAZR6#..NOAH..X200111-200408

SANDAL WOOD,TRIM4#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-28240iAZR6#200111-200408

7152SEAT BELT

→ Go to FIG 71-52

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010×3iAZR6#; AZR6#..L,V,X200111-200408

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-28060iAZR6#200407-200408

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71511-28240iAZR6#..L,V200111-200408

main71551-28380iAZR6#..S,X,Z200111-200408

main71551-28390iAZR6#200111-200408

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-28450iAZR6#..S,X,Z200111-200408

main71630-28460iAZR6#200111-200408

main71630-28480iAZR6#..08S..X200408

main71630-28500iAZR6#200408

71759BHOOK, FRONT SEATBACK

main71759-28040-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main71759-28040-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main71759-28040-B3iAZR6#200111-200408

DK.GRAY,TRIM1#

71811CCOVER, RECLINING ADJUSTER, RH

main71811-28191-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main71811-28191-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main71811-28191-B2iAZR6#200111-200408

DK.GRAY,TRIM1#

main71811-44150-A0iAZR6#..NOAH..X200408-200706

main71811-44150-A1iAZR6#..NOAH..(L,X)200111-200408

main71811-44150-B0iAZR6#200408-200706

71812CCOVER, RECLINING ADJUSTER, LH

main71812-28181-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main71812-28181-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main71812-28181-B2iAZR6#200111-200408

DK.GRAY,TRIM1#

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71876-44050-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main71876-44050-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main71876-44050-B0iAZR6#200111-200408

DK.GRAY,TRIM1#

71875DCOVER, RECLINING ADJUSTER OUTSIDE, RH

main71875-44040-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main71875-44040-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main71875-44040-B0iAZR6#200111-200408

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-28A00-B0×2iAZR6#..VOXY..4HC..X200212-200308

main71910-28A30-A2iAZR6#..NOAH..08S..X; AZR6#..NOAH..X200408-200706

main71910-28A30-B1iAZR6#..08S..X; AZR6#..X200408-200706

main71910-28A40-B0×2iAZR6#..S,TRASX,YY,Z200408-200706

DK.GRAY,TRIM1#

main71910-28B10-A0×2iAZR6#..NOAH..08S..X200504

main71910-28B10-B0×2iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),GRAY,TRIM18

main71910-2J200-B0×2iAZR6#..NOAH..4HC..X200212-200308

main71910-2J200-B2×2iAZR6#..4HC..Z200308-200407

main71910-2J210-A0iAZR6#..L200111-200408

main71910-2J210-B0×2iAZR6#..L,V200111-200408

main71910-2J230-A0iAZR6#..NOAH..X200111-200408

main71910-2J230-B0iAZR6#..NOAH..X200111-200408

main71910-2J240-B0×2iAZR6#..VOXY..X200111-200408

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-A0iAZR6#..NOAH..(L,X)200305-200408

main71930-42020-A2×2iAZR6#..NOAH..(L,X)200111-200305

main71930-42020-B4iAZR6#; AZR6#..08S..X200408-200706

main71930-42020-B6iAZR6#; AZR6#..L,V,X200305-200308

main71931-42020-A0iAZR6#..NOAH..08S..X; AZR6#..NOAH..X200408-200706

main71931-42020-A2iAZR6#..NOAH..(L,X)200111-200305

main71931-42020-B4×2iAZR6#; AZR6#..08S..X200408-200706

main71931-42020-B6iAZR6#; AZR6#..L,V,X200305-200308

72137COVER, SEAT TRACK, OUTER RH

main72137-28150-B0iAZR6#200111-200408

STONE,TRIM1#

main72137-28150-B1iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

main72137-28150-E0iAZR6#..NOAH..X200408-200706

FAWN,TRIM4#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-44020-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main72137-44020-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main72137-44020-B0iAZR6#200111-200408

DK.GRAY,TRIM1#

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72138-44020-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main72138-44020-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main72138-44020-B0iAZR6#200408-200706

DK.GRAY,TRIM1#

72143BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT)

main72143-28080×2iAZR6#200111-200408

main72143-28090×2iAZR6#200408

72201AHANDLE SUB-ASSY, SEAT TRACK RH

main72201-44080iAZR6#200408

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-28050-B0iAZR6#200111-200408

STONE,TRIM1#

main72265-28050-B1iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

main72265-28050-E0iAZR6#..NOAH..(L,X)200111-200408

FAWN,TRIM4#

72265ACOVER, SEAT TRACK UPPER RAIL, RH

main72265-44070×2iAZR6#200308-200408

72457KNOB, VERTICAL SEAT ADJUSTER

main72457-18010-A0iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main72457-18010-A1iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main72457-18010-S1iAZR6#200111-200408

DK.GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-16010-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main72525-16010-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main72525-16010-S1iAZR6#200111-200408

DK.GRAY,TRIM1#

72877COVER, SEAT ARMREST, RH

main71877-26020-A0iAZR6#..NOAH..X200408-200706

IVORY,TRIM4#

main71877-26020-A1iAZR6#..NOAH..(L,X)200111-200408

IVORY,TRIM4#

main71877-26020-B9iAZR6#200111-200408

DK.GRAY,TRIM1#

72880AARMREST ASSY, FRONT SEAT, INNER RH

main72890-28750-B1iAZR6#..VOXY..X200111-200408

DARK GRAY,TRIM1#

main72890-28800-A1iAZR6#..NOAH..X200111-200408

IVORY,TRIM4#

main72890-28800-B1iAZR6#..NOAH..X200111-200408

DARK GRAY,TRIM1#

main72890-28810-B0iAZR6#..S,Z200111-200408

DARK GRAY,TRIM1#

main72890-28810-B1iAZR6#..4HC..Z200308-200407

main72890-28820-A0iAZR6#..NOAH..X200408-200706

main72890-28820-B0iAZR6#..VOXY..4HC..X200212-200308

main72890-28860-A2iAZR6#..NOAH..X200408-200706

main72890-28860-B1iAZR6#..X200408-200706

main72890-28880-B0iAZR6#..S,TRASX,YY,Z200408-200706

DK.GRAY,TRIM1#

main72890-28A90-A0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),IVORY,TRIM42

main72890-28A90-B0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),GRAY,TRIM18

7270228080BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28080

9011910409

main90119-10409

9016740044

main90167-40044

9020115015

main90201-15015

9052001006

main90520-01006

9151581025

main91515-81025

9353055016

main93530-55016

9415010801

main94150-10801

9454201400

main94542-01400

39 parts on this diagram · 19 diagrams in section
