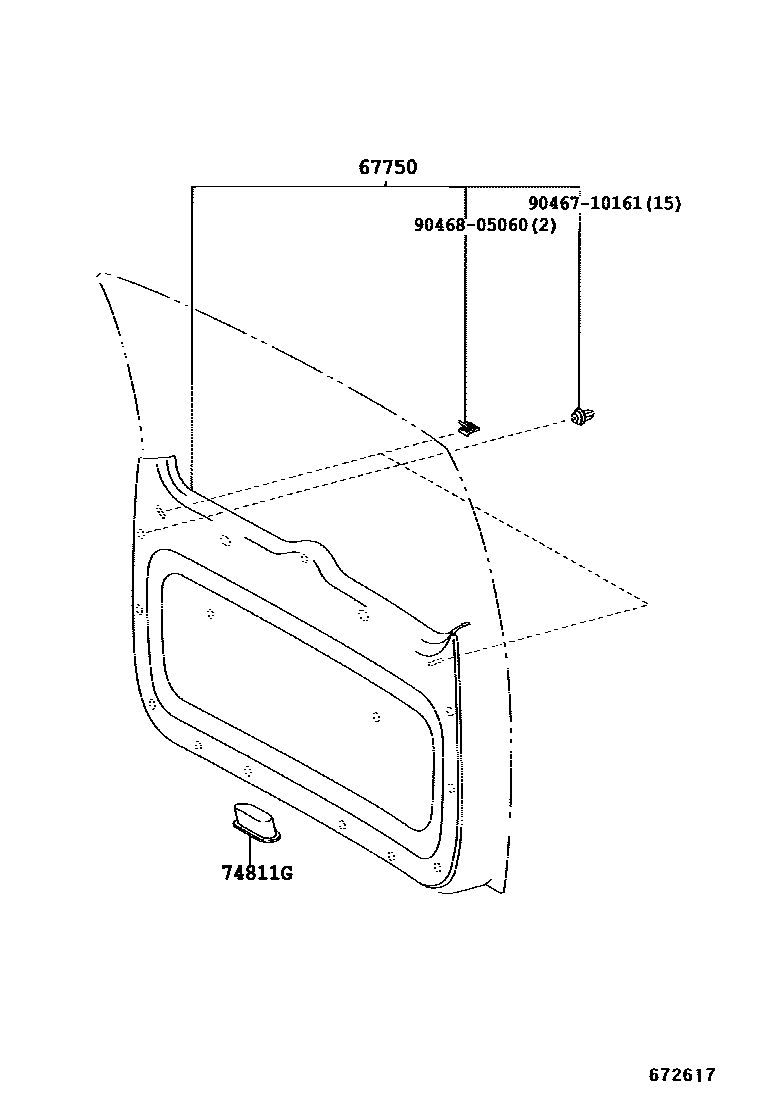

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

67750BOARD ASSY, BACK DOOR TRIM

main67750-28090-B0iAZR6#200111-200408

STONE,TRIM1#

main67750-28090-B1iAZR6#..05S200408-200706

DK.GRAY,TRIM1#

main67750-28090-B2iAZR6#..07S,08S200408-200706

GRAY,TRIM1#

main67750-28090-E0iAZR6#..NOAH..(L,X)200111-200706

FAWN,TRIM4#

74811GHANDLE, DOOR PULL

main74811-13010-C0iAZR6#..NOAH..(L,X)200111-200706

BLACK,TRIM1#

sub74811-13010

main74811-13010-C0iAZR6#..NOAH..X200111-200706

BLACK,TRIM1#,4#

sub74811-13010

9046710161

main90467-10161

9046805060

main90468-05060

4 parts on this diagram · 4 diagrams in section
