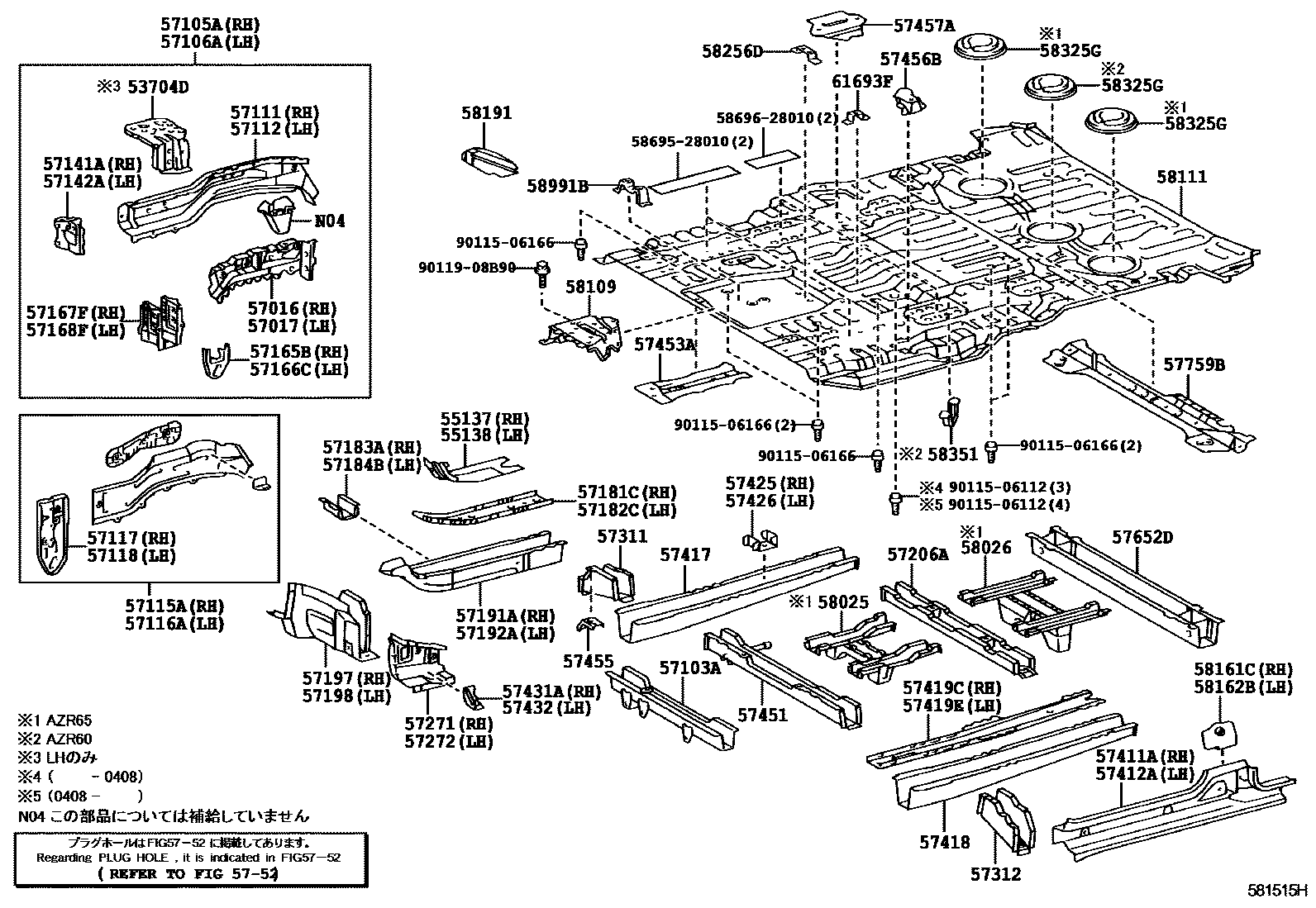

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
55137BRACE, DASH TO FRAME, RH
55138BRACE, DASH TO FRAME, LH
57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57165BREINFORCEMENT, FRONT CROSSMEMBER, NO.2 RH
57166CREINFORCEMENT, FRONT CROSSMEMBER, NO.2 LH
57167FREINFORCEMENT, FRONT CROSSMEMBER SIDE, RH
57168FREINFORCEMENT, FRONT CROSSMEMBER SIDE, LH
57181CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 RH
57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH
57183AEXTENSION, FRONT CROSSMEMBER, RR RH
57184BEXTENSION, FRONT CROSSMEMBER, RR LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57311OUTRIGGER, NO.1 RH
57312OUTRIGGER, NO.1 LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57419CREINFORCEMENT, FRONT FLOOR UNDER, LH NO.2
57419EREINFORCEMENT, FRONT FLOOR UNDER, RH NO.2
57425REINFORCEMENT, FRONT FLOOR, NO.2 RH
57426REINFORCEMENT, FRONT FLOOR, NO.2 LH
57431APATCH, STEP PANEL UNDER, RH
57432PATCH, STEP PANEL UNDER, LH
57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH
57455BRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BBRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57457APLATE, FRONT FLOOR CROSSMEMBER, NO.2 RH
5752HOLE PLUG
57652DMEMBER, REAR FLOOR CROSS, NO.1
57759BPLATE, REAR FLOOR CROSSMEMBER, NO.1
58025REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58026REINFORCE SUB-ASSY, DRIVE SHAFT CENTER SUPPORT, REAR
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58111PAN, FRONT FLOOR
58161CREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58162BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58191FOOTREST, FRONT FLOOR
58256DBRACKET, FRONT FLOOR HARNESS
58325GCOVER, REAR FLOOR SERVICE HOLE
58351REINFORCEMENT, SPARE WHEEL CARRIER
58991BBRACKET, CONSOLE BOX MOUNTING, FRONT
61693FBRACKET, FRONT FLOOR
5869528010PLATE, EVAPORATOR COVER MAT SET, LOWER
main58695-28010
5869628010PLATE, ENGINE UPPER FLOOR MAT SET, LH
main58696-28010
9011506112
main90115-06112
9011506166
main90115-06166
9011908B90
main90119-08B90
68 parts on this diagram · 1 diagram in section
