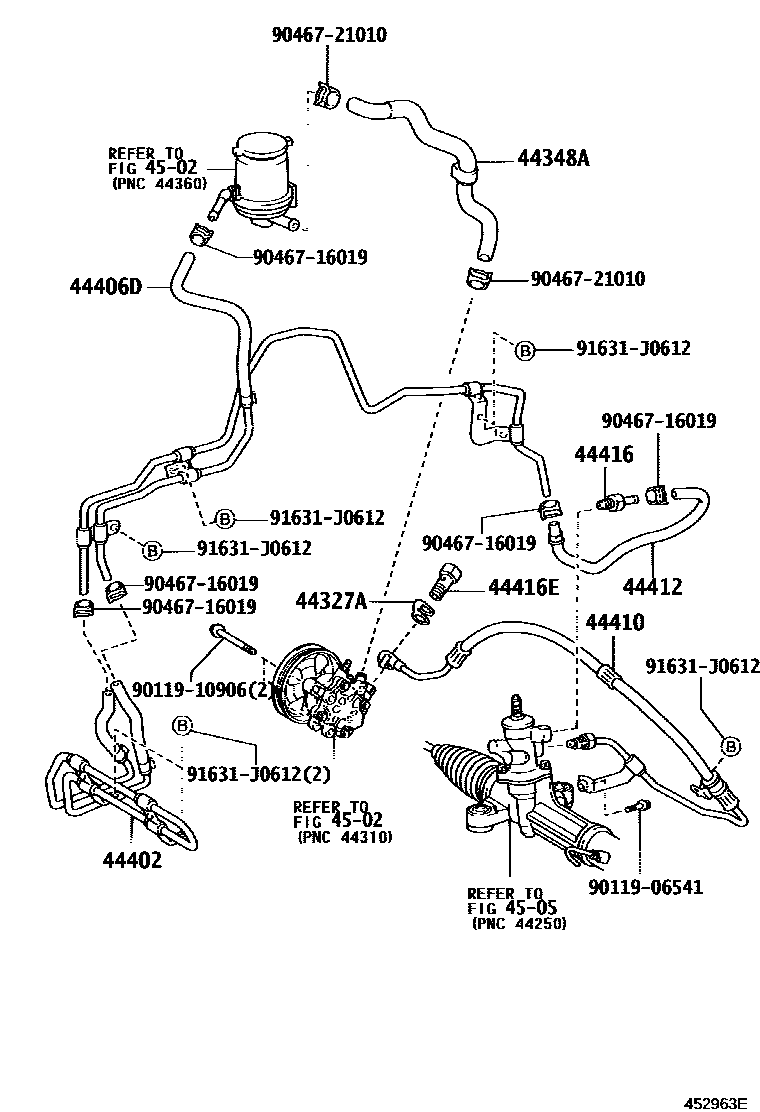

POWER STEERING TUBE

0001 1 0002 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iAZR6#200111-200408

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28280iAZR6#200111-200408

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-28020iAZR6#200408

44406DTUBE SUB-ASSY, RETURN, NO.1

main44406-28350iAZR60200111-200310

main44406-28351iAZR60200310-200408

main44406-28360iAZR65200111-200310

main44406-28361iAZR65200408

44410TUBE ASSY, PRESSURE FEED

main44410-28520iAZR60200111-200408

main44410-28530iAZR65200111-200408

44412HOSE, RETURN

main44412-28330iAZR60200408

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-26080iAZR6#200111-200408

main44416-60370iAZR6#200511

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iAZR6#200111-200408

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906541

main90119-06541

9011910906

main90119-10906

9046716019

main90467-16019

9046721010

main90467-21010

91631J0612

main91631-J0612

15 parts on this diagram · 2 diagrams in section
