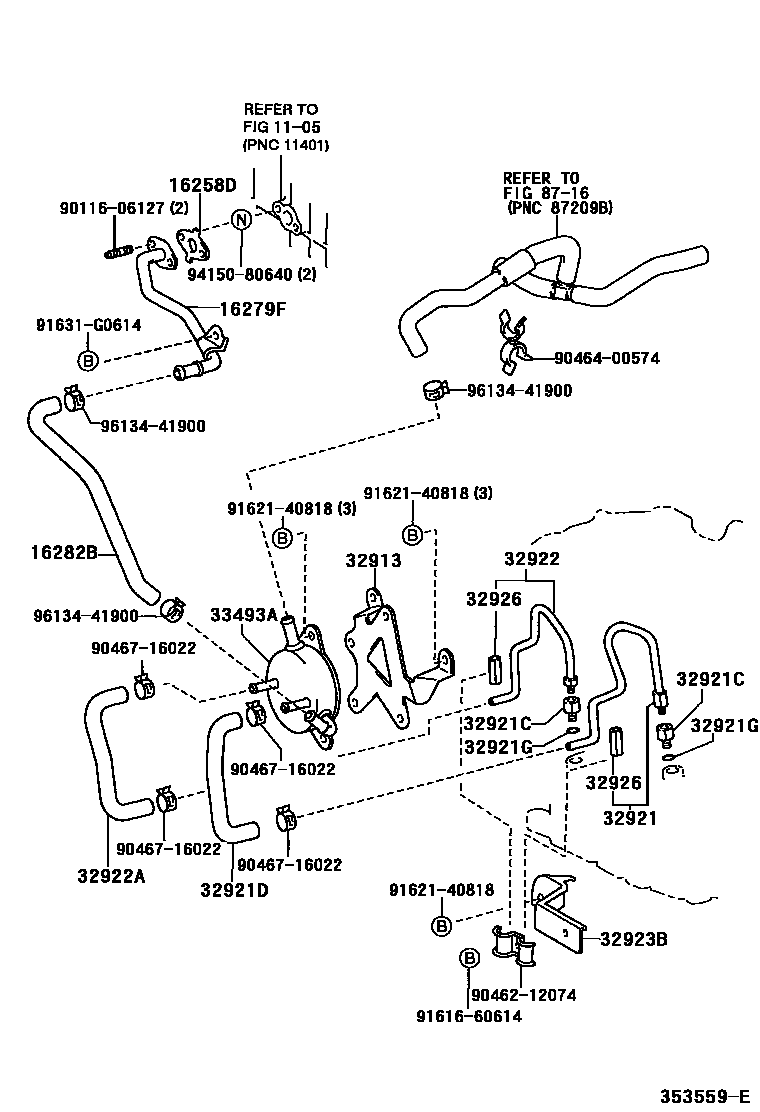

OIL COOLER & TUBE (ATM)

1105CYLINDER BLOCK

→ Go to FIG 11-05

16258DGASKET(FOR WATER BY-PASS PIPE)

main16258-28020i1AZFSE..AZR6#..4HC200111-200304

main16258-28021i1AZFSE..AZR6#..4HC200304-200308

main16258-28040i1AZFSE..AZR6#200308-200408

16279FPIPE, WATER BY-PASS, NO.3

main16279-28030i1AZFSE..AZR6#200111-200408

16282BHOSE, WATER BY-PASS, NO.5

main16282-28030i1AZFSE..AZR6#200111-200408

32913BRACKET, OIL COOLER

main32913-28030iAZR6#200111-200408

32921TUBE, OIL COOLER INLET, NO.1

main32921-28300iAZR6#200111-200408

32921CUNION(FOR OIL COOLER TUBE)

main90404-16032×2iAZR6#200111-200408

32921DHOSE(FOR OIL COOLER INLET)

main32943-28050iAZR6#200111-200408

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iAZR6#200111-200408

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-28220iAZR6#200111-200408

32922AHOSE(FOR OIL COOLER OUTLET)

main32943-28050iAZR6#200111-200408

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-28130iAZR6#200111-200408

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020×2iAZR6#200111-200408

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-28010iAZR6#200111-200408

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9011606127

main90116-06127

9046212074

main90462-12074

9046400574

main90464-00574

9046716022

main90467-16022

9161660614

main91616-60614

9162140818

main91621-40818

91631G0614

main91631-G0614

9415080640

main94150-80640

9613441900

main96134-41900

24 parts on this diagram · 1 diagram in section
