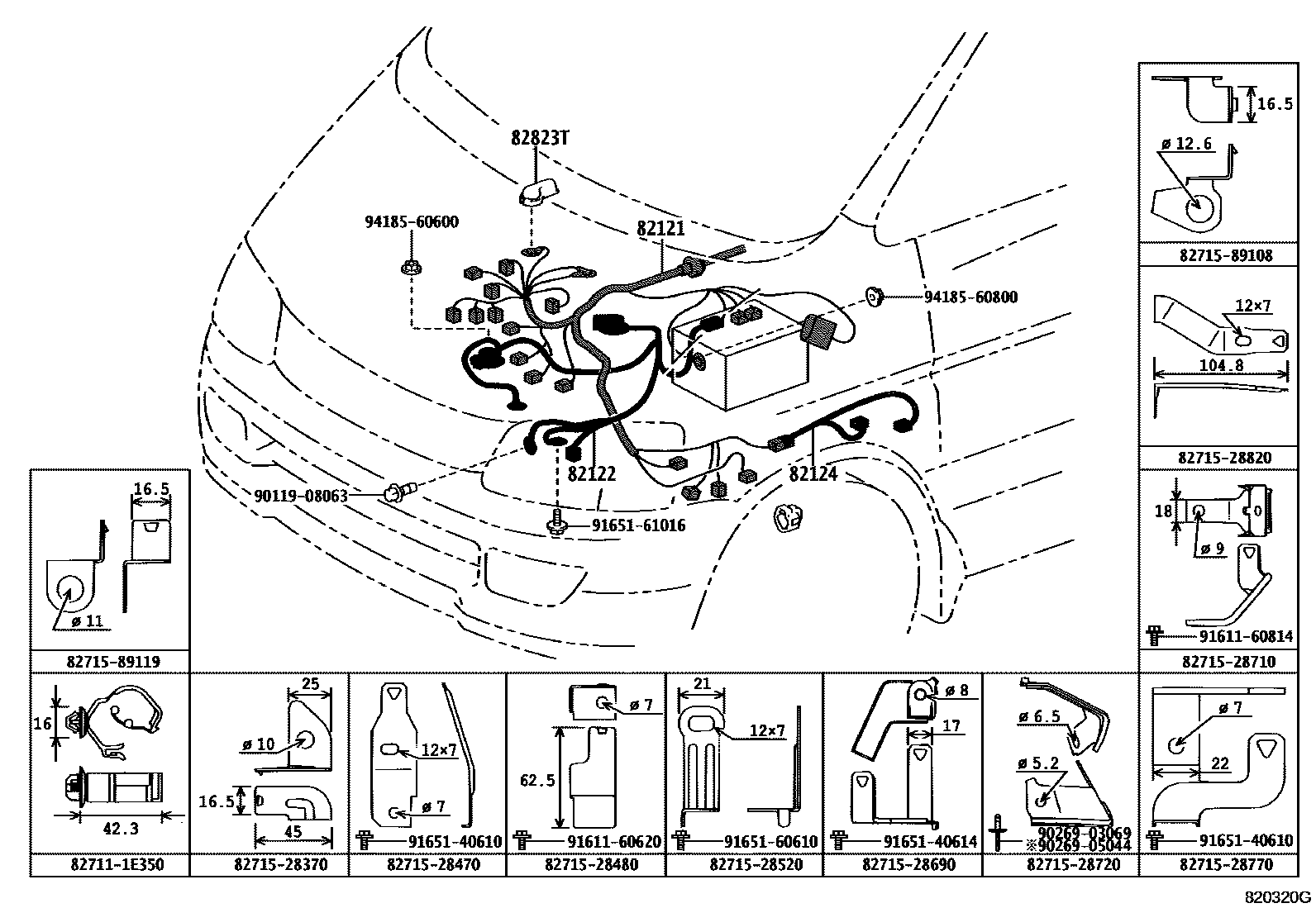

WIRING & CLAMP

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ��� 0005 1����� ��� 0006 1����� ��� 0007 1����� �-� ��� 0008 1����� �-� ��� 0009 1����� �-� ��� 0010 1����� ��� ��� 0011 1������-� ��� ����� 0012 1��� ��� 0013 1��� ��� 0014 1����,�� ��� & �-� ��� 0015 1��� ��� 0016 1���� ��� ��� 0017 1����� �-��� 0018 1����

82121WIRE, ENGINE

main82121-28330iCR40,50..ATM199610-199801

main82121-28331iCR40,50..ATM199801-199812

main82121-28390iCR40,50..MTM199610-199801

main82121-28391iCR40,50..MTM199801-199812

main82121-28400iSR40,50..ATM199610-199801

main82121-28401iSR40,50..ATM199801-199812

main82121-28410iSR40..MTM199611-199801

main82121-28411iSR40..MTM199801-199812

main82121-28420iCR41,51..ATM199611-199801

main82121-28421iCR41,51..ATM199801-199812

main82121-28430iCR41,51..MTM199611-199801

main82121-28431iCR41,51..MTM199801-199812

main82121-28440iCR41..ATM199611-199801

main82121-28441iCR41..ATM199801-199812

main82121-28450iCR41,51..MTM..D199611-199801

main82121-28451iCR41,51..MTM..D199801-199812

main82121-28460iKR4#..ATM199611-199801

main82121-28461iKR4#..ATM199801-199812

main82121-28470iKR4#..MTM199611-199801

main82121-28471iKR4#..MTM199801-199812

main82121-28530iCR50..ATM199801-199812

main82121-28540iCR50..MTM199801-199812

main82121-28550iKR42..ATM199812-200208

main82121-28551iKR42..ATM200208-200412

main82121-28552iKR42,52..ATM200412

main82121-28560iKR42..MTM199812-200208

main82121-28561iKR42..MTM200208-200412

main82121-28562iKR42,52..MTM200412

main82121-28690iCR40,50199812-200111

main82121-28700iSR40..MTM199812-200111

main82121-28710iSR40,50..ATM199812-200111

main82121-28720iCR42,52..ATM199812-200208

main82121-28721iCR42,52..ATM200208-200407

main82121-28730iCR42,52..MTM199812-200208

main82121-28731iCR42,52..MTM200208-200407

main82121-28740iCR42,52..MTM..D199812-200208

82122WIRE, ENGINE, NO.2

main82122-28050iSR40,50199610-199812

main82122-28290iCR4#,5#199610-199812

main82122-28300iKR4#199611-199812

main82122-28310iKR4#199611-199812

main82122-28370iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

main82122-28400iKR42199812-200412

main82122-28410iSR40,50199812-200111

main82122-28420iCR40,50199812-200111

main82122-28530iKR42,52200412

82124WIRE, ENGINE, NO.4

main82124-28110iKR42..ATM199812

main82124-28250iCR42..06S..MTM..CBU;CR42..(03S,05S)..MTM199812-200407

main82124-28280iCR52..ATM199812-200407

main82124-28290iCR5#..MTM199610-199812

main82124-28300iKR42..MTM199812

82823TCAP, ALTERNATOR TERMINAL

main82823-22050iCR40,50,SR40,50199812-200111

main82823-24010iCR4#,5#199610-199812

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8271528370BRACKET,WIRING HARNESS CLAMP

main82715-28370

8271528470BRACKET,WIRING HARNESS CLAMP

main82715-28470

8271528480BRACKET,WIRING HARNESS CLAMP

main82715-28480

8271528520BRACKET,WIRING HARNESS CLAMP

main82715-28520

8271528690BRACKET,WIRING HARNESS CLAMP

main82715-28690

8271528710BRACKET,WIRING HARNESS CLAMP

main82715-28710

8271528720BRACKET,WIRING HARNESS CLAMP

main82715-28720

8271528770BRACKET,WIRING HARNESS CLAMP

main82715-28770

8271528820BRACKET,WIRING HARNESS CLAMP

main82715-28820

8271589108BRACKET,WIRING HARNESS CLAMP

main82715-89108

8271589119BRACKET,WIRING HARNESS CLAMP

main82715-89119

9011908063

main90119-08063

9026903069

main90269-03069

9026905044

main90269-05044

9161160620

main91611-60620

9161160814

main91611-60814

9165140610

main91651-40610

9165140614

main91651-40614

9165160610

main91651-60610

9165161016

main91651-61016

9418560600

main94185-60600

9418560800

main94185-60800

27 parts on this diagram · 18 diagrams in section
