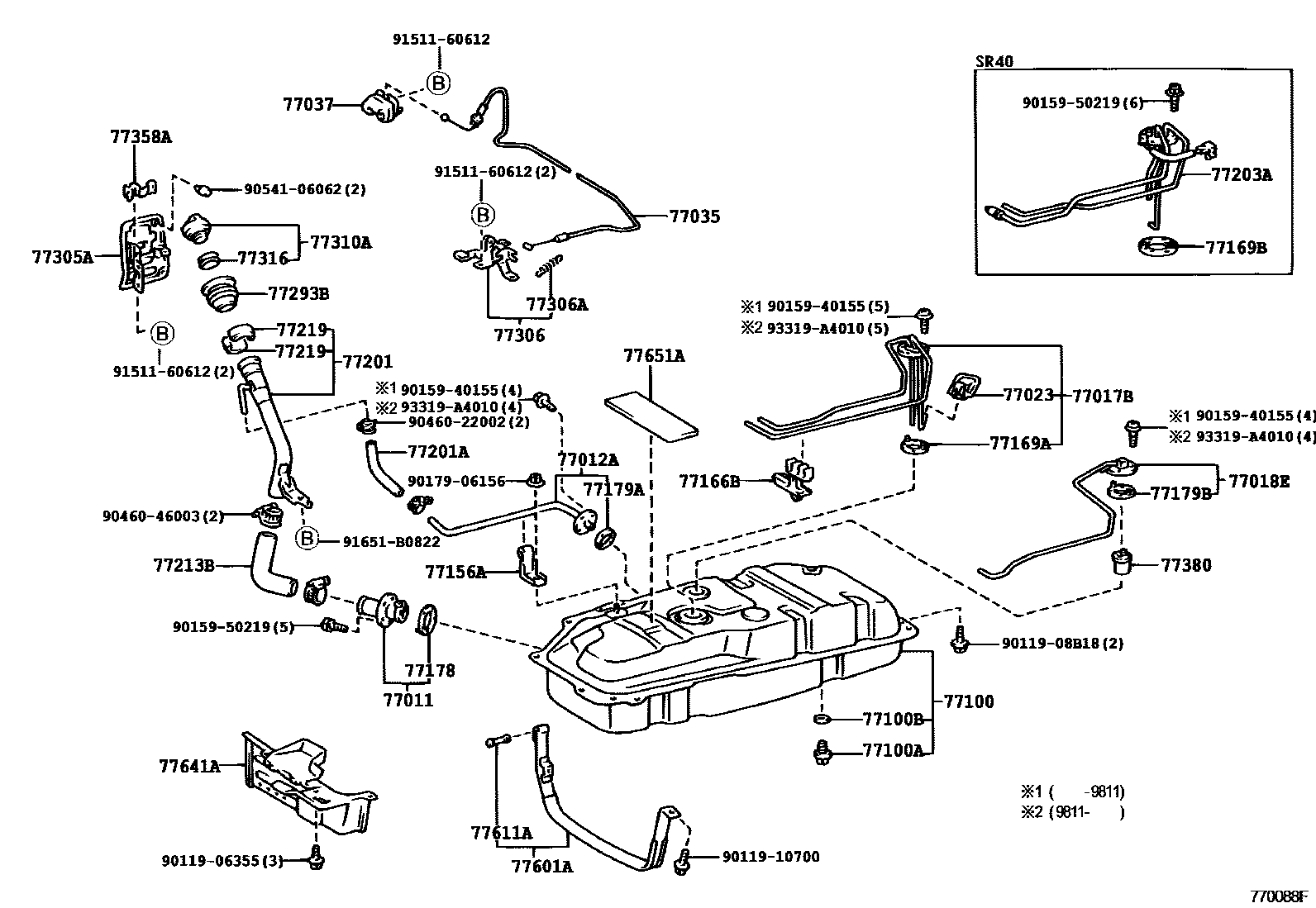

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0006 1

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-28010iCR4#,5#,KR4#,SR40,50199610-199812

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-28060iCR4#,5#,KR42,SR40,50199610-200002

sub77012-28061

main77012-28061iCR4#,5#,KR42,52,SR40,50200002

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-28160iCR4#,5#199610-200407

main77017-28190iKR4#199611-199812

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-28130iCR42,52200204-200407

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-28090iCR4#,5#,KR4#,SR40,50199610-199812

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-10010iKR4#199611-199812

main77023-32040iCR4#,5#199610-200407

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-28060iCR4#,5#,KR4#,SR40,50199610-199812

main77035-28070iCR40,50,SR40,50199812-200407

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-28010iCR4#,5#,KR4#,SR40,50199610-199804

sub77037-28011

main77037-28011iKR42,52199804-200407

77100TANK ASSY, FUEL

main77001-28450iCR4#,5#199610-199812

sub77001-28451

main77001-28450iCR4#,5#199812-200208

sub77001-28451

main77001-28450iCR42,52200203-200407

sub77001-28451

main77001-28460iKR42,SR40,50199812-200208

main77001-28460iSR40,50199610-199812

main77001-28460iKR42,52200208-200512

main77001-28470iKR4#199611-199812

main77001-28570iKR42,52200512-200708

77100APLUG(FOR FUEL TANK)

main90105-12116iCR4#,5#,KR4#,SR40,50199610-200407

77100BGASKET(FOR FUEL TANK)

main90430-12245iCR4#,5#,KR4#,SR40,50199610-200407

77156APLATE, BREATHER TUBE SUPPORT, NO.2

main77156-28030iCR4#,5#,KR4#,SR40,50199610-199812

77166BSUPPORT, FUEL TANK VENT TUBE, NO.1

main77166-28030iCR4#,5#,KR4#,SR40,50199610-199812

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iCR4#,5#,KR4#199610-200407

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-32010iSR40,50199610-200111

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iCR4#,5#,KR4#,SR40,50199610-199812

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iCR4#,5#,KR4#,SR40,50199610-199812

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iCR4#,5#,KR4#,SR40,50199610-199812

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28180iCR4#,5#,KR4#,SR40,50199610-199812

77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)

main95312-13019iKR42,52200208

main95313-13019iKR42199610-200407

sub95313-13020

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-28120iSR40,50199610-199812

main77203-28150iSR40,50199812-200111

77213BHOSE, FUEL TANK TO FILLER PIPE

main77217-28070iCR4#,5#,KR4#,SR40,50199610-200407

main77217-28090iKR42,52200208

77219COVER, FUEL TANK FILLER PIPE

main77219-32030iCR4#,5#,KR4#,SR40,50199610-200407

77293BPACKING, FUEL INLET PIPE LOWER SHIELD PLATE

main77293-28020iCR4#,5#,KR4#,SR40,50199610-200407

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-28020iCR4#,5#,KR42,52,SR40,50..4D199610-199812

main77305-28030iCR41,51,KR4#,SR40,50..5D199611-199812

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28030iCR4#,5#,KR4#,SR40,50199610-199812

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iCR4#,5#,KR4#,SR40,50199610-199812

77310ACAP ASSY, FUEL TANK

main77310-12150iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199803-200405

main77310-16011iKR4#,SR40,50199610-199802

sub77310-12140

main77310-32011iCR4#,5#199610-199802

main77310-48010iSR40,50199803-200111

77316GASKET, FUEL TANK CAP

main77316-16010iCR42..06S..MTM..IV5199610-200405

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-28050iCR4#,5#,KR4#,SR40,50199610-200407

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iCR4#,5#,KR4#,SR40,50199610-199812

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-28070iCR42..06S..MTM..IV5199610-200407

77611APIN (FOR FUEL TANK BAND)

main77653-25010iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

77641APROTECTOR, FUEL TANK, NO.1

main77641-28070iCR4#,5#,KR4#,SR40,50199610-200407

77651ACUSHION, FUEL TANK, NO.1

main77651-28040iCR4#,5#,KR4#,SR40,50199610-200407

9011906355

main90119-06355

9011908B18

main90119-08B18

9011910700

main90119-10700

9015940155

main90159-40155

9015950219

main90159-50219

9017906156

main90179-06156

9046022002

main90460-22002

9046046003

main90460-46003

9054106062

main90541-06062

9151160612

main91511-60612

91651B0822

main91651-B0822

93319A4010

main93319-A4010

47 parts on this diagram · 5 diagrams in section
