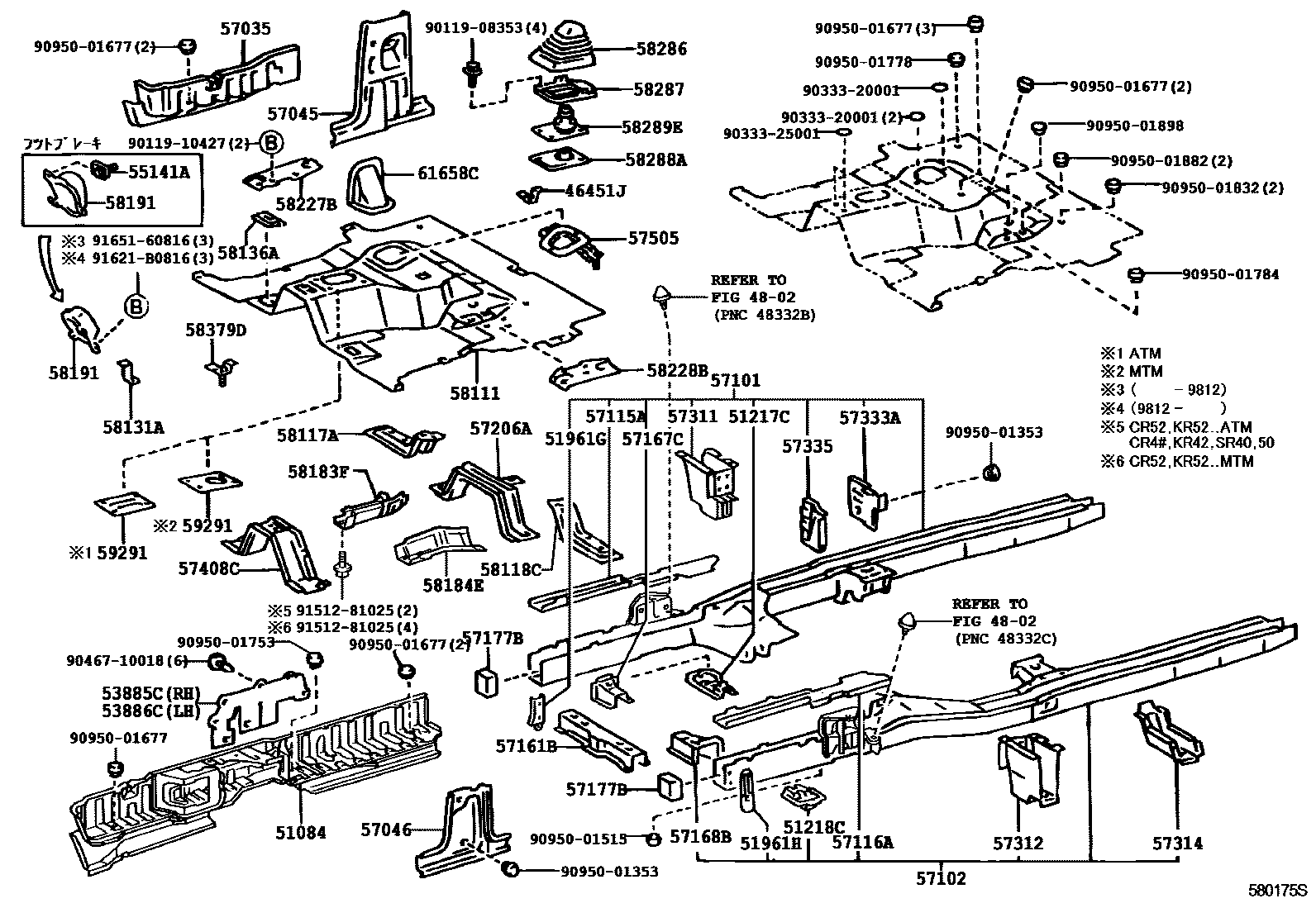

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

46451JBRACKET, PARKING BRAKE CABLE SUPPORT

main46451-28060iCR4#,5#,KR4#,SR40,50199610-200708

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

51084STEP SUB-ASSY, LH

main51084-28030iCR40,50,SR40,50..E,Q,S,V199812-200111

main51084-28040iCR42,KR42..V1;CR40,5#,KR52,SR40,50199610-199812

main51084-28050iCR42,KR42..SJL199611-199812

51217CREINFORCEMENT, FRONT SUSPENSION MENBER, RH

main51217-28020iCR4#,5#,KR4#,SR40,50199610-199812

main51217-28030iCR40,50,SR40,50199812-200407

51218CREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51218-28030iCR4#,5#,KR4#,SR40,50199610-199812

main51218-28040iCR40,50,SR40,50199812-200407

51961GHOOK, FRONT RH

main51970-28030iCR4#,5#,KR4#,SR40,50199610-200407

51961HHOOK, FRONT LH

main51980-28040iCR4#,5#,KR4#,SR40,50199610-200407

53885CSEAL, FENDER APRON MUDGUARD, RH

main53885-28010iCR42..06S..MTM..IV5199610-200407

main53885-28040iKR52199610-200407

53886CSEAL, FENDER APRON MUDGUARD, LH

main53886-28050iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

main53886-28060iCR52199610-200407

55141ABRACKET, FOOT REST MOUNTING

main55141-28010iCR40,50,SR40,50..E,Q,S,V199812-200111

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-28010iCR40,50,SR40,50..07S,08S199610-200111

main57035-28020iCR41,51,KR4#,SR40,50..03S,05S,06S199611-199812

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-28120iCR40,50,SR40,50..07S,08S199610-200111

main57045-28130iCR42,52,KR42,52,SR40,50..5D199611-199812

main57045-28140iCR41,51,KR4#,SR40,50..4D..(03S,06S)199611-199812

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57422-28070iCR4#,5#,KR4#,SR40,50199610-199812

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28600iCR50,SR50..IV5199812-200111

main57101-28600iCR50..IV5199801-199812

main57101-28600iCR50,SR50..08S..(E,Q,S)..CBU199812-200111

main57101-28610iKR4#..SJL199611-199812

main57101-28620iCR50,SR50..IV5;CR50,SR50..D,V;CR50,SR50..07S199812-200111

main57101-28620iCR50,SR50..E..CBU200012-200110

main57101-28620iCR50,SR50..E..CBU200012-200110

main57101-28620iSR50..S200004-200012

main57101-28620iSR50..S200004-200012

main57101-28650iCR40..Q;SR40..(E,V)..CBU199801-199812

main57101-28650iCR40..08S..(E,Q,S)..CBU199812-200111

main57101-28650iCR40..08S..(E,Q,S)..CBU199610-200111

main57101-28660iCR40..E..CBU200012-200110

main57101-28660iCR40..E..CBU199812-200111

main57101-28660iCR40..E..CBU200004-200012

main57101-28710iSR40..08S..(E,Q,S)..CBU199812-200111

main57101-28710iSR40..IV5199812-200111

main57101-28730iCR50,SR50..07S,08S199610-199801

main57101-28730iCR50,SR50..(07S,08S)..CBU199801-199812

main57101-28740iKR4#..V1199611-199812

main57101-28750iSR40..E..CBU;KR42..SRF..IV5199812

main57101-28750iSR40..S200012-200110

main57101-28750iSR40..S200012-200110

main57101-28750iSR40..S200004-200012

main57101-28750iSR40..S200004-200012

main57101-28760iCR51,SR50..03S,05S,06S199611-199812

main57101-28780iCR41..SJL199611-199812

main57101-28790iCR40..E,V199801-199812

main57101-28790iCR40;SR40..(E,V)..CBU199610-199801

main57101-28800iCR41..V1;SR40..IV5;SR40..B,D,Q199610-199812

main57101-28830iCR42,KR42..SJL199812

main57101-28840iCR52,KR52,SR50..03S,05S,06S199812

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28390iKR4#..V1199611-199812

main57102-28400iSR40;KR42..V1199812

main57102-28420iKR42..SJL199812

main57102-28440iSR50..B199611-199812

main57102-28460iCR42..V1199812-200407

main57102-28470iCR42..SJL199812-200407

main57102-28480iCR41..SJL199611-199812

main57102-28490iKR4#..SJL199611-199812

main57102-28500iCR40199812-200111

main57102-28510iKR52,SR50..03S,05S,06S199812

main57102-28530iCR52199812-200407

main57102-28540iCR40199610-199812

main57102-28550iCR50199812-200111

main57102-28560iCR50199610-199812

main57102-28590iSR50..07S,08S199812-200111

main57102-28600iSR50..07S,08S199610-199812

main57102-28610iCR41..V1199611-199812

main57102-28620iCR51199611-199812

main57102-28640iSR40199610-199812

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-28050iCR42..06S..MTM..IV5199610-200407

main57115-28060iCR52199610-200407

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-28040iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

main57116-28050iCR52199610-200407

57161BMEMBER, FRONT CROSS, FRONT

main57104-28100iCR4#,5#,KR42,52,SR40,50199812

main57161-28040iCR4#,5#,KR4#,SR40,50199610-199812

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-28010iCR42..06S..MTM..IV5199610-200407

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-28010iKR42,52199610-200407

57177BSEAL, FRONT SIDE MEMBER, RH

main57177-28010iSR40,50199610-200111

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-28020iCR42..5D..MTM..D199812-200708

main57206-28020iSR40,50199610-200111

main57452-28010iSR50..E,Q,V;CR4#,5#..05S,07S,08S199610-200407

57311OUTRIGGER, NO.1 RH

main57301-28110iCR4#,5#,KR4#,SR40,50199610-199812

main57301-28120iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

57312OUTRIGGER, NO.1 LH

main57302-28080iCR4#,5#,KR4#,SR40,50199610-199812

main57302-28090iCR40,50,SR40,50199812-200407

57314OUTRIGGER, NO.2 LH

main57314-28020iCR42..06S..MTM..IV5199610-200407

57333AOUTRIGGER, NO.2 REAR RH

main57333-28020iCR4#,5#,KR4#,SR40,50199610-200407

57335OUTRIGGER, NO.2 FRONT RH

main57335-28020iCR4#,5#,KR4#,SR40,50199610-200407

57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-28020iSR40,50199610-199710

main57408-28030iKR52;CR42,52..N;KR42..SRF..IV5;KR42..IV5..SJL199710-200708

main57451-28020iCR42..4D;CR52,KR42..D;CR42..5D..ATM..D199611-200208

57505BRACKET SUB-ASSY, PARKING BRAKE, NO.1

main57505-28010iCR4#,5#,KR4#,SR40,50199610-200708

main57505-28020iCR40,50,SR40,50..E,Q,S,V199812-200111

58111PAN, FRONT FLOOR

main58111-28430iCR40,50,SR40,50..07S,08S199610-199801

main58111-28431iCR40,50,SR40,50..07S,08S199801-200111

main58111-28630iCR41,51,KR4#,SR40,50..4D..(03S,06S)199611-199801

main58111-28631iCR42,52,KR42,52..4D199801-200708

main58111-28640iCR41,51,KR4#,SR40,50..5D199611-199801

main58111-28641iCR42..5D..MTM..D199801-200708

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58102-28020iKR52;CR42..4D;CR52,KR42..D;CR42..5D..ATM..D199812-200708

main58117-28020iCR42,KR42..ATM..D;CR40,5#,SR40,50..D,E,Q,S,V199812-200007

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58103-28030iCR42..5D..MTM..D199812-200708

main58118-28040iCR42,KR42..ATM..D;CR40,5#,SR40,50..D,E,Q,S,V199812-200007

58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-28020iSR40,50199610-200111

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-28020iCR4#,5#,KR4#,SR40,50199610-199812

58183FREINFORCEMENT, REAR MOUNTING, RH

main58183-28040iCR4#,5#,KR4#,SR40,50199610-200708

58184EREINFORCEMENT, REAR MOUNTING, LH

main58184-28030iCR4#,5#,KR4#,SR40,50199610-200708

58191FOOTREST, FRONT FLOOR

main58191-28020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main58191-28030iCR40,50,SR40,50..ATM199812-200208

main58191-28050iCR42,52..ATM200208-200407

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-28050iCR4#,5#,KR4#,SR40,50199610-200708

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-28030iCR4#,5#,KR4#,SR40,50199610-200708

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58286-28010-B0iCR4#,5#,KR42,SR40..(05S,08S)..MTM199610-199812

MD.MOON MIST,TRIM1#

main58286-28010-G0iCR40,50..MTM..E199610-199812

DK.SAGE,TRIM6#

main58286-28020-B0iCR42,52,KR42,52,SR40..(03S,06S)..MTM199611-199812

MD.MOON MIST,TRIM1#

58287RETAINER, SHIFT LEVER BOOT

main58287-28030iCR4#,5#,KR4#,SR40..MTM199610-199812

58288ASEAL, SHIFT LEVER BOOT

main58288-28010iCR4#,5#,KR4#,SR40..MTM199610-199812

58289EBOOT, SHIFT LEVER, NO.2

main58289-28010iCR4#,KR4#,SR40..MTM199610-199812

main58289-28020iCR5#..MTM199610-199812

58379DBRACKET, HEATER HOSE CLAMP

main58379-28020iCR42..ATM;KR42..ATM..N;KR42..SRF..IV5;KR42..IV5..SJL;CR42..HRF..MTM..N;CR42..4D..06S..MTM;CR42..SRF..(03S,05S)..MTM;CR40,5#,KR52,SR40,50..D,E,N,Q,S,V199610-200708

59291RETAINER, FLOOR SHIFT LEVER BASE

main59291-28010iCR52..MTM;CR42..MTM..N199610-200407

main59291-28020iCR42,52..ATM199610-200407

61658CCOVER, FUEL INLET PIPE

main61658-28010iCR4#,5#,KR4#,SR40,50199610-199801

main61658-28011iCR42..ATM;CR42..HRF..MTM..N;CR42..4D..06S..MTM;CR42..SRF..(03S,05S)..MTM;CR40,5#,KR42,52,SR40,50..D,E,N,Q,S,V199801-200708

9011908353

main90119-08353

9011910427

main90119-10427

9033320001

main90333-20001

9033325001

main90333-25001

9046710018

main90467-10018

9095001353

main90950-01353

9095001515

main90950-01515

9095001677

main90950-01677

9095001753

main90950-01753

9095001778

main90950-01778

9095001784

main90950-01784

9095001832

main90950-01832

9095001882

main90950-01882

9095001898

main90950-01898

9151281025

main91512-81025

91621B0816

main91621-B0816

9165160816

main91651-60816

63 parts on this diagram · 1 diagram in section
