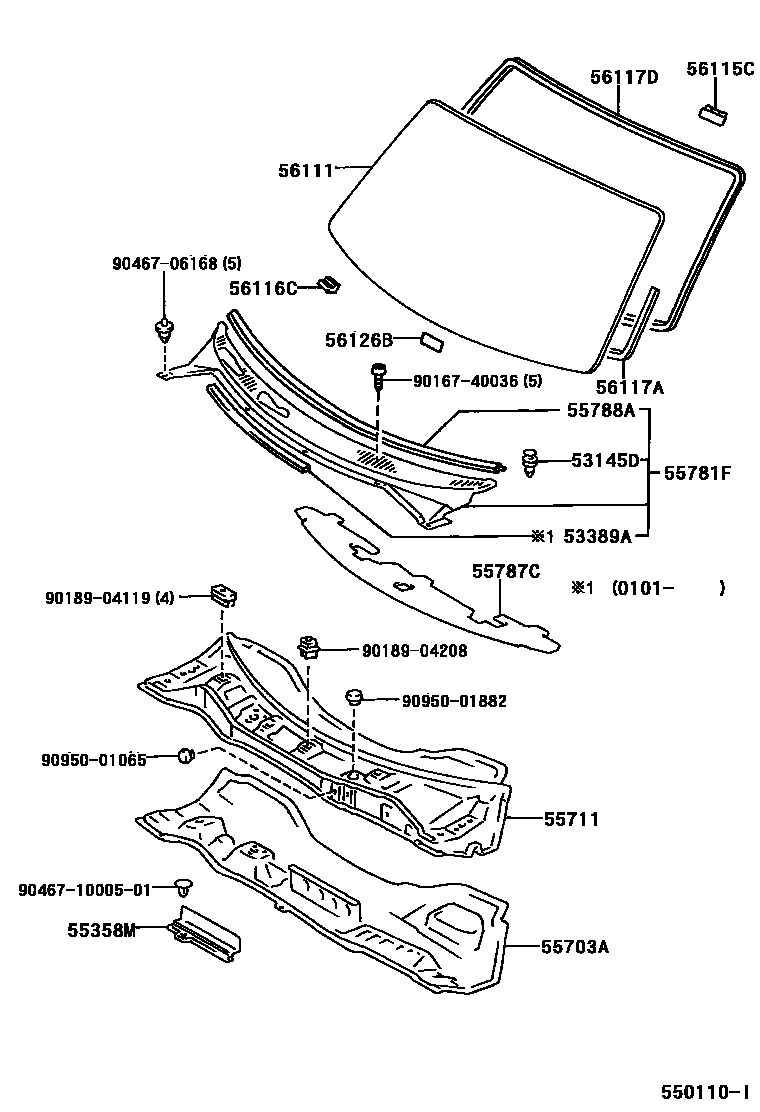

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53145DCLIP, RADIATOR GRILLE

main53145-28010×2iCR4#,5#,KR4#,SR40,50199610-199612

main67771-12050×2iCR4#,5#,KR4#,SR40,50199612-199801

main67771-28050×2iCR40,50;SR40,50..08S..(Q,S); SR40,50..07S;SR40,50..B,D,E,V199902-200111

53389ASEAL, HOOD TO COWL TOP, NO.2

main53389-28020iCR40,50,SR40,50200101-200111

55358MPROTECTOR, COWL VENTILATOR EDGE

main55358-28080iCR4#,5#199610-199812

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-28060iCR40,50..E,Q,S,V199812-200111

main55703-28070iSR40,50..E,Q,S,V199812-200111

main55703-28080iSR40,50..5D..ATM199806-199812

main55703-28290iSR40..MTM199812-200111

main55703-28320iCR42,52,KR42,52..MTM199812

main55703-28330iCR4#,5#,KR42,52..ATM..(D,N)199812

main55703-28340iSR40,50..ATM..(B,D)199812-200111

55711PANEL, COWL TOP, OUTER

main55701-28120iCR40..ATM;CR40..HRF..MTM;CR41,5#,KR4#,SR40,50199610-199812

55781FLOUVER, COWL TOP VENTILATOR

main55708-28010iCR4#,5#,KR4#,SR40,50199610-199812

main55708-28020iCR4#,5#,KR42,SR40,50199812-199902

main55708-28030iKR42,52199902

main55708-28040iCR42..06S..MTM..IV5199902-200208

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-28010iCR40,50,SR40,50..E,Q,V199610-199812

main55787-28020iCR40,50,SR40,50..E,Q,S,V199812-200111

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-28020iCR4#,5#,KR4#,SR40,50199610-199805

main55788-28030iCR42..06S..MTM..IV5199902-200208

56111GLASS, WINDSHIELD

main56111-28230iCR4#,5#,KR4#,SR40,50..03S,05S,06S,08S199610-199812

main56111-28231iKR42,52200407

main56111-28240iCR40,50,SR40,50..Q199610-199801

main56111-28300iCR40,50,SR40,50..Q199801-199812

56115CSTOPPER, WINDSHIELD GLASS

main56115-20080×2iCR40,50,SR40,50199812-200111

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-28040×2iCR4#,5#,KR4#,SR40,50199610-199812

main56116-28060×2iCR40,50,SR40,50199812-200111

56117ADAM, WINDOW GLASS ADHESIVE

main56117-28100iCR4#,5#,KR4#,SR40,50199702-199812

main64813-52010iCR4#,5#,KR42,52,SR40,50199812-200708

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-28040iCR4#,5#,KR4#,SR40,50199610-199812

main56117-44030iCR4#,5#,KR42,52,SR40,50199812

56126BSPACER, WINDSHIELD GLASS, NO.2

main56126-28010iCR4#,5#,KR4#,SR40,50199610-199702

9016740036

main90167-40036

9018904119

main90189-04119

9018904208

main90189-04208

9046706168

main90467-06168

904671000501

main90467-1000501

9095001065

main90950-01065

9095001882

main90950-01882

21 parts on this diagram · 2 diagrams in section
