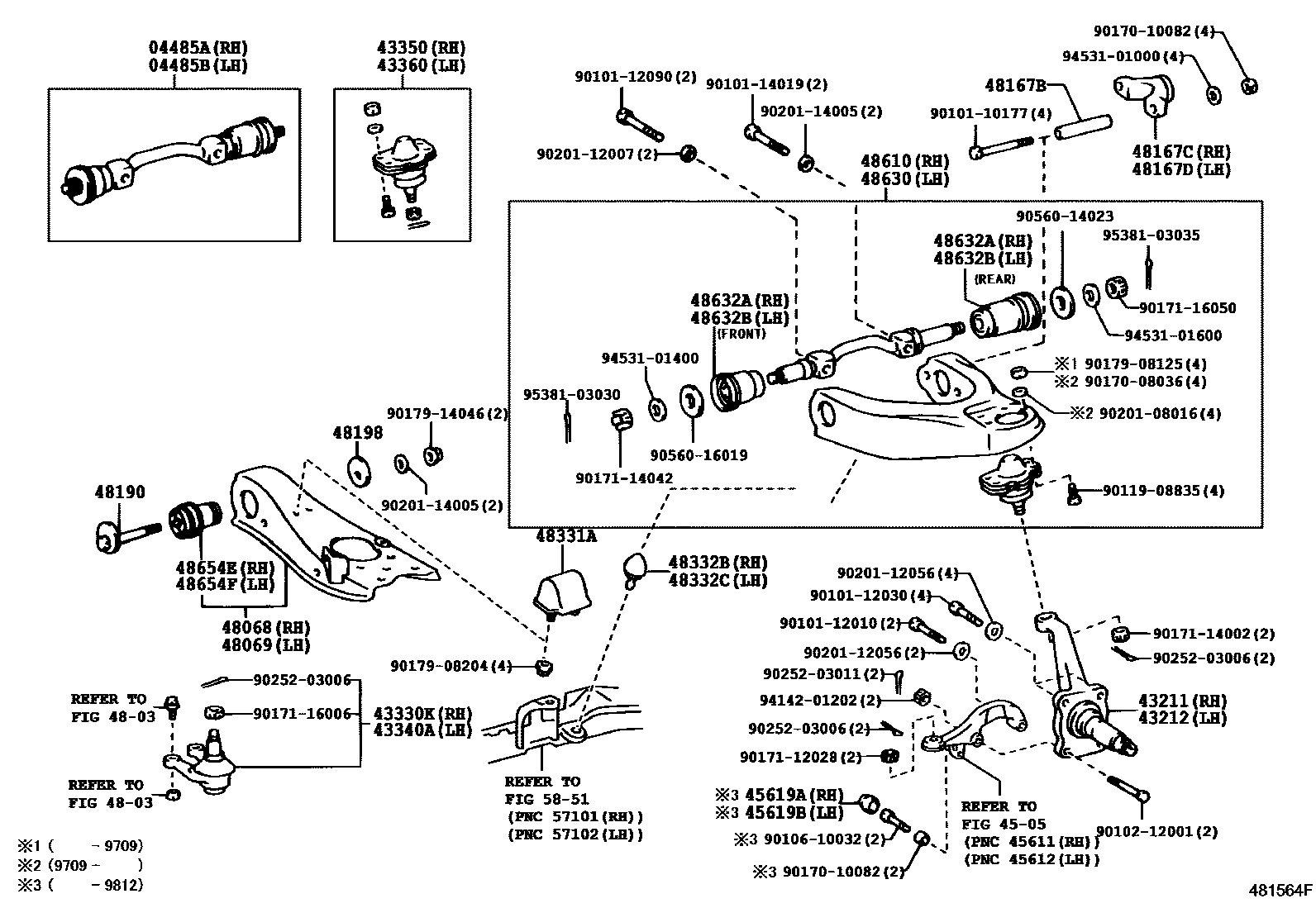

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

04485ASHAFT KIT, FRONT SUSPENSION UPPER ARM, RH

main04485-28050iCR4#,KR42,SR40199610-199812

04485BSHAFT KIT, FRONT SUSPENSION UPPER ARM, LH

main04485-28050iCR4#,KR42,SR40199610-199812

43211KNUCKLE, STEERING, RH

main43211-28021iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199611-200407

main43211-28070iCR40,SR40199610-200407

main43211-28080iCR52199611-200407

main43211-28090iKR52200412

main43211-28090iCR5#,SR50199610-200407

43212KNUCKLE, STEERING, LH

main43211-28021iCR41,KR4#,SR40..03S,05S,06S199611-200407

main43212-28050iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

main43212-28060iCR51,SR50..03S,05S,06S199611-200407

main43212-28070iCR52199610-200407

main43212-28070iKR52200412

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29175iCR4#,KR4#,SR40199610-200412

main43330-29395iCR5#,SR50199610-200407

main43330-29545iKR42200412-200708

main43330-29555iKR52200412-200708

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29175iCR4#,KR4#,SR40199610-200412

main43330-29395iCR5#,SR50199610-200407

main43330-29545iKR42200412-200708

main43330-29555iKR52200412-200708

43350JOINT ASSY, FRONT UPPER BALL, RH

main43350-29076iCR4#,KR4#,SR40199610-199812

43360JOINT ASSY, FRONT UPPER BALL, LH

main43350-29076iCR4#,KR42,SR40199610-199812

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

45619ACOVER, STEERING KNUCKLE STOPPER, RH

main45619-14020iCR4#,5#,KR4#,SR40,50199610-199812

45619BCOVER, STEERING KNUCKLE STOPPER, LH

main45619-14020iCR4#,5#,KR4#,SR40,50199610-199812

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28070iKR42199610-200407

main48068-28090iCR5#,SR50199610-199812

main48068-28100iCR50,SR50..07S,08S199812-200111

main48068-28110iSR50..B199812-200407

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28070iCR40,SR40199610-200407

main48069-28090iCR5#,SR50199610-199812

main48069-28100iCR50,SR50..07S,08S199812-200111

main48069-28110iKR52199812-200407

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCR40,SR40199610-200407

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-27040iKR42199610-200407

main48106-27050iCR52,SR50..03S,05S,06S199610-199911

main48106-28030iCR50,SR50..07S,08S199812-200111

main48106-38020iKR52199911-200407

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-27040iCR4#,KR4#,SR40199610-200407

main48106-27050iCR5#,SR50199610-199911

main48106-28030iCR50,SR50..07S,08S199812-200111

main48106-38020iSR50..B199911-200407

48190CAM ASSY, CAMBER ADJUST

main48190-27020iCR5#,SR50199610-200407

48198CAM, CAMBER ADJUST, NO.2

main48198-27010iKR52199610-200407

48331ABUMPER, FRONT SPRING, NO.1

main48331-27051iCR4#,KR4#,SR40199610-200407

main48331-28020iCR5#,SR50199610-200407

48332BUMPER, FRONT SPRING, NO.2

main48332-28020iCR5#,SR50199610-200407

48332BBUMPER, FRONT SPRING, NO.2 RH

main48332-35020iCR4#,5#,KR4#,SR40,50199610-200407

48332CBUMPER, FRONT SPRING, NO.2 LH

main48332-35020iCR40,50,SR40,50199610-200407

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-28030iCR42..06S..MTM..IV5199610-200407

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-28030iCR4#,KR4#,SR40199610-200407

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-28050iCR40,SR40199610-200407

main48635-28060iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199610-200407

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-28050iCR40,SR40199610-200407

main48635-28060iCR42..06S..MTM..IV5199610-200407

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-27011iCR4#,KR4#,SR40199610-200407

main48061-28040iCR52199610-200407

main48061-28050iCR50,SR50..07S,08S199812-200111

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-27011iCR4#,KR4#,SR40199610-200407

main48061-28040iCR52199610-200407

main48061-28050iCR50,SR50..07S,08S199812-200111

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9010110177

main90101-10177

9010112010

main90101-12010

9010112030

main90101-12030

9010112090

main90101-12090

9010114019

main90101-14019

9010212001

main90102-12001

9010610032

main90106-10032

9011908835

main90119-08835

9017008036

main90170-08036

9017010082

main90170-10082

9017112028

main90171-12028

9017114002

main90171-14002

9017114042

main90171-14042

9017116006

main90171-16006

9017116050

main90171-16050

9017908125

main90179-08125

9017908204

main90179-08204

9017914046

main90179-14046

9020108016

main90201-08016

9020112007

main90201-12007

9020112056

main90201-12056

9020114005

main90201-14005

9025203006

main90252-03006

9025203011

main90252-03011

9056014023

main90560-14023

9056016019

main90560-16019

9414201202

main94142-01202

9453101000

main94531-01000

9453101400

main94531-01400

9453101600

main94531-01600

9538103030

main95381-03030

9538103035

main95381-03035

62 parts on this diagram · 2 diagrams in section
