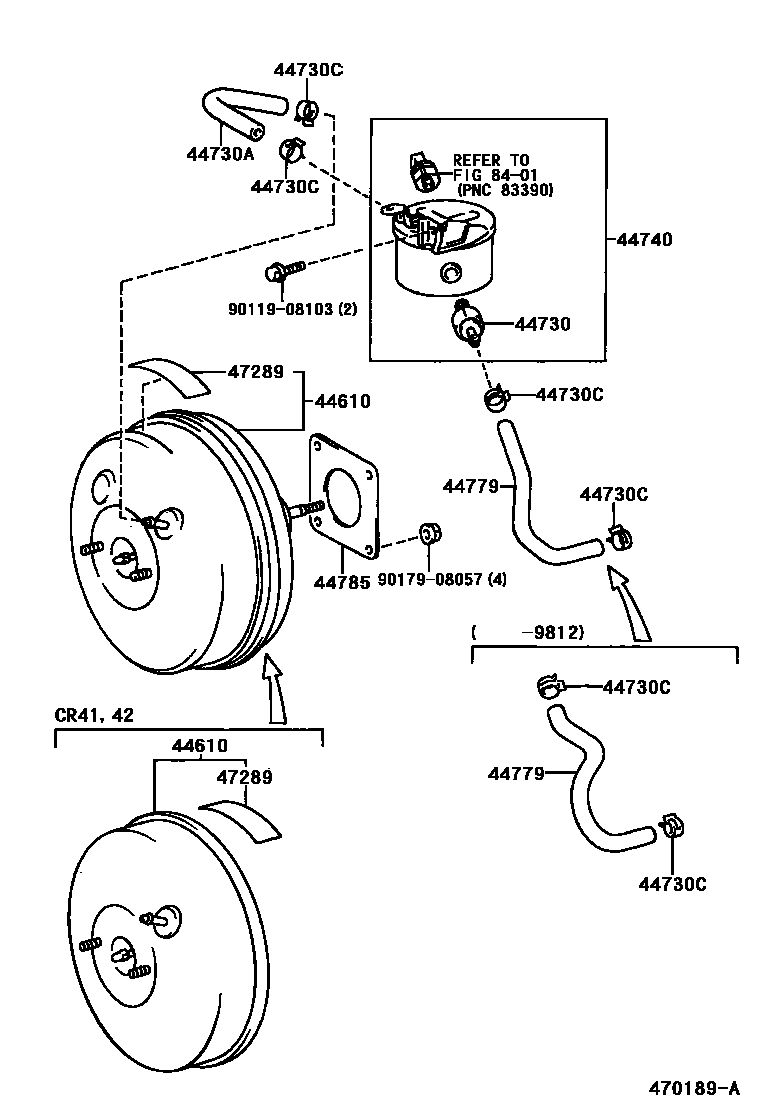

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-28870iSR40,50199610-199812

main44610-28880iCR41,51,KR4#199611-199812

main44610-28890iCR40,50199610-199812

main44610-2J030iSR50;SR40..07S,08S199812-200111

main44610-2J040iCR40,50199812-200111

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iKR4#,SR40,50199610-199812

main44730-60050iCR4#,5#199812-200407

44730AHOSE, VACUUM, NO.1

main95446-09190iCR42..06S..MTM..IV5199812-200208

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×3iCR4#,5#; SR40,50199610-199812

main96133-41500×4iCR4#,5#199812-200407

44740RESERVOIR ASSY, VACUUM

main44740-28080iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

44779HOSE, UNION TO CONNECTOR

main44779-28030iCR4#,5#199610-199812

main44779-28040iCR40,50199812-200111

44785GASKET, BRAKE BOOSTER

main44785-32010iCR4#,5#,KR4#,SR40,50199610-199812

47289LABEL, BRAKE MASTER CYLINDER ADJUST INFORMATION

main47289-60020iCR40,50199610-199812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908103

main90119-08103

9017908057

main90179-08057

11 parts on this diagram · 3 diagrams in section
