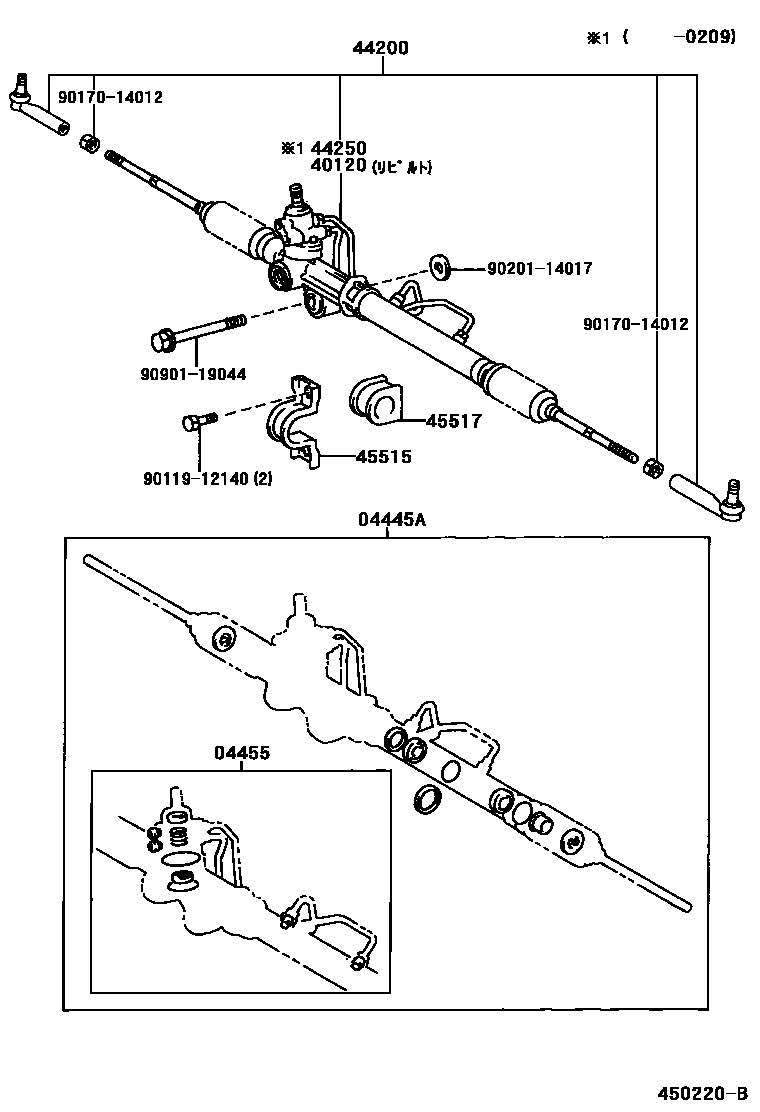

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28070iCR4#,5#,KR4#,SR40,50199610-199812

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-26030iCR4#,5#,KR4#,SR40,50199610-199812

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-28310iCR5#,SR50199610-199812

main40120-28320iCR4#,KR4#,SR40199610-199812

44200LINK ASSY, POWER STEERING

main44200-28350iCR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

main44200-28380iCR52199812-200407

main44200-28381iKR52200412

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28310iCR5#,SR50199610-199812

main44250-28320iCR4#,KR4#,SR40199610-199812

main44250-28330iCR50,SR50199812-200111

main44250-28340iCR40,SR40..07S,08S199812-200111

main44250-28350iKR42199812-200407

main44250-28380iCR52199812-200407

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-27060iCR4#,5#,KR4#,SR40,50199610-200407

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-28040iCR40,50,SR40,50199812-200407

main45517-38010iCR4#,5#,KR4#,SR40,50199610-199812

9011912140

main90119-12140

9017014012

main90170-14012

9020114017

main90201-14017

9090119044

main90901-19044

11 parts on this diagram · 5 diagrams in section
