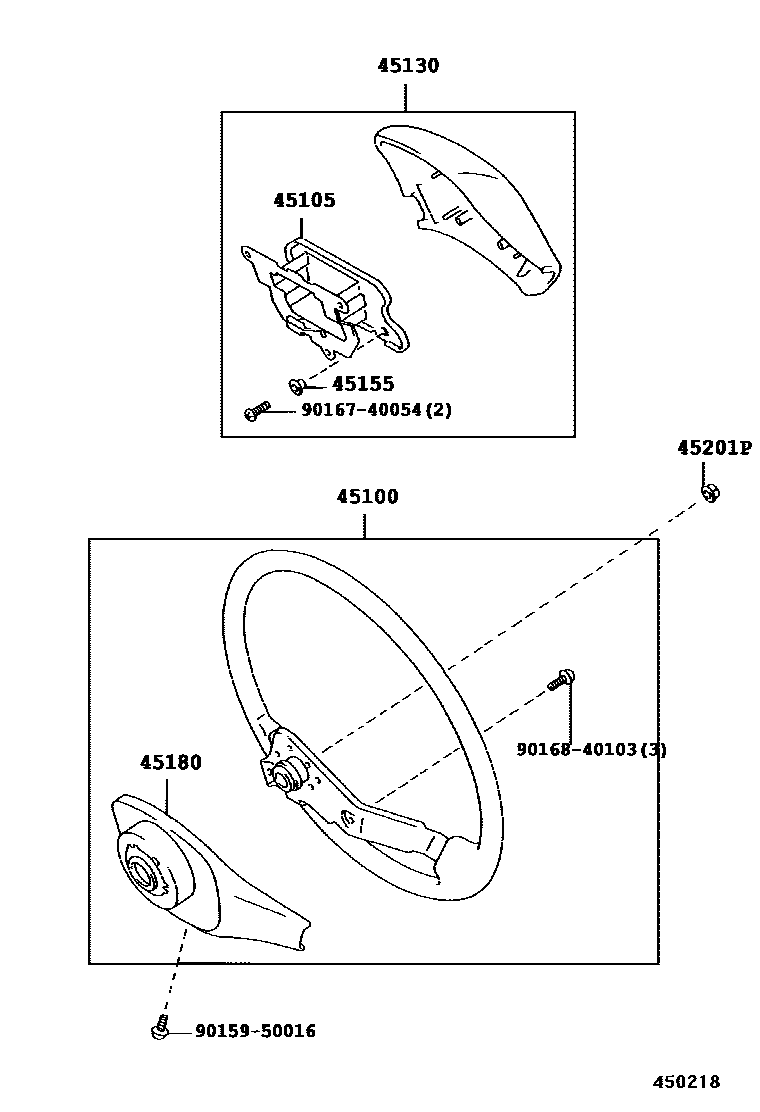

STEERING WHEEL

0001 12-SPOKE,PP(����������) 0002 12-SPOKE, PP(����������) 0003 14-SPOKE 0004 14-SPOKE

45100WHEEL ASSY, STEERING

main45100-12720-B3iCR42,52,KR42..D199812-200208

main45100-1A020-B1iCR42,52200208-200407

main45100-26230-B2iCR41,51,KR4#..D199611-199812

main45100-28160-B0iCR40,50,SR40,50..B,D,V199812-200111

main45100-28160-G0iCR40,50,SR40,50..E,Q199812-200111

main45100-28170-C0iCR40,50,SR40,50..S,V199812-200111

main45100-28170-G0iCR40,50,SR40,50..E,Q199812-200111

main45100-32310-B1iCR4#,5#,KR4#,SR40,50199610-199812

main45100-32310-G0iCR40,50,SR40,50..E,Q199610-199812

main45100-44020-C0iSR40,50..5D..ATM199806-199812

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12200iCR41,51,KR4#..D199611-199812

45130BUTTON ASSY, HORN

main45130-12730-B3iCR42,52,KR42..D199812-200208

MD.MOON MIST,TRIM1#

main45130-26260-B2iCR41,51,KR4#..D199611-199812

MD.MOON MIST,TRIM1#

main45130-28350-B0iCR4#,5#,KR4#,SR40,50199610-199801

main45130-28350-G0iCR40,50,SR40,50..E,Q199610-199801

main45130-28360-B0iCR4#,5#,KR4#,SR40,50199801-199812

main45130-28360-G0iCR40,50,SR40,50..E,Q199801-199812

DK.SAGE,TRIM6#

main45130-28390-B0iCR40,50,SR40,50..B,D,V199812-200111

main45130-28390-C0iCR40,50,SR40,50..S199812-200008

main45130-28390-G0iCR40,50,SR40,50..E,Q199812-200111

main45130-28450-B0iCR42,52200208-200407

MD.MOON MIST,TRIM1#

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-12050×4iCR41,51,KR4#..D199611-199812

45180COVER SUB-ASSY, STEERING WHEEL

main45180-12160-B3iCR42,52,KR42..D199812-200112

MD.MOON MIST,TRIM1#

main45180-26040-B2iCR41,51,KR4#..D199611-199812

MD.MOON MIST,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12071iKR42,52199812

9015950016

main90159-50016

9016740054

main90167-40054

9016840103

main90168-40103

9 parts on this diagram · 4 diagrams in section
