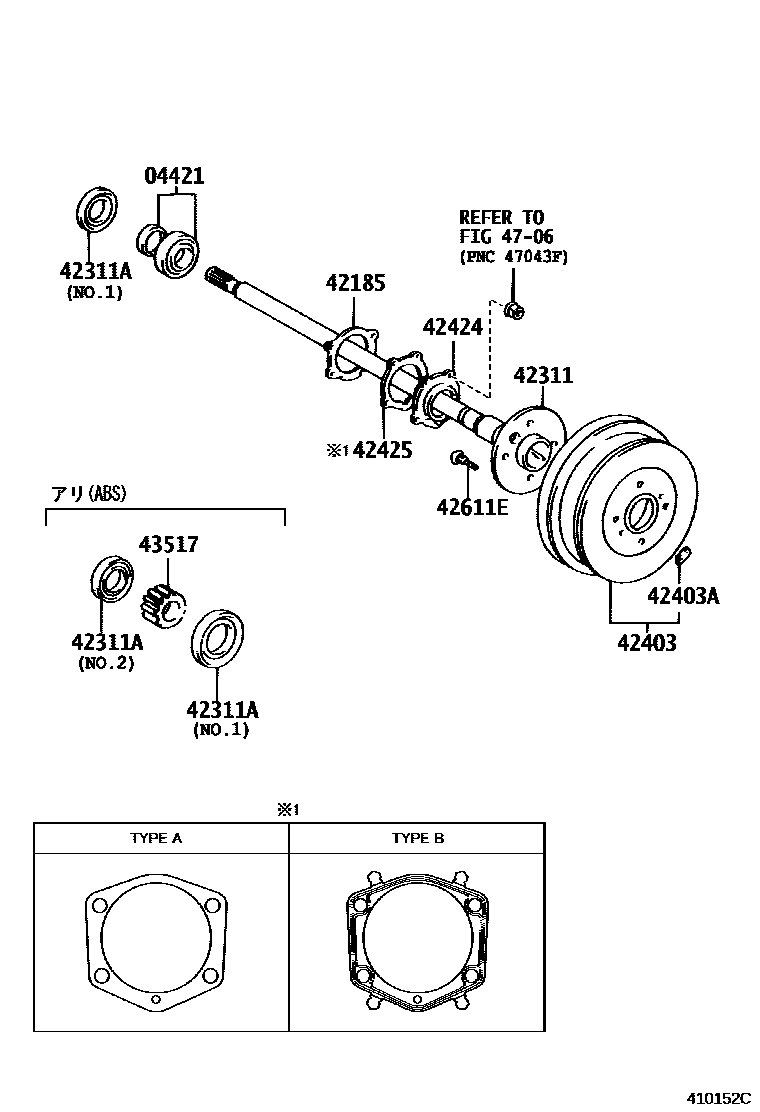

REAR AXLE SHAFT & HUB

04421BEARING KIT, REAR AXLE SHAFT

main04421-30030×2iCR4#,5#,KR4#,SR40,50199610-199812

main04421-30031×2iCR4#,5#,KR42,52,SR40,50199812

42185GASKET, REAR AXLE HOUSING END

main42185-28030×2iCR5#,SR50199812-200402

main42185-30061×2iCR4#,KR4#,SR40199610-199812

main42185-43030×2iCR42,KR42; CR52,KR52200402-200708

42311SHAFT, REAR AXLE

main42311-28110×2iCR40,SR40;CR41,KR4#..V1199610-199812

main42311-28120×2iKR52200412

main42311-28130×2iCR42..IV5..SJL199812-200208

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059×2iKR42199812

main90312-35002×2iCR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5199812-200407

42403DRUM SUB-ASSY, REAR BRAKE

main42431-14061×2iKR42199812

main42431-28040×2iKR52200412

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01287iKR42,52199812

main90937-01288iCR40,50,SR40,50199812-200111

main90937-01289iKR42,52199812

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-30040×2iCR4#,5#,KR4#,SR40,50199610-199812

42425GASKET, REAR AXLE BEARING RETAINER

main42425-30031×2iCR4#,5#,KR4#,SR40,50199610-199812

main42425-43010×2iCR42,KR42; CR52,KR52200402-200708

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×8iCR4#,KR4#,SR40; CR5#,SR50199610-199812

43517ROTOR, SKID CONTROL, REAR

main43517-28030×2iCR4#,5#,KR4#,SR40,50199610-199812

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

11 parts on this diagram · 1 diagram in section
