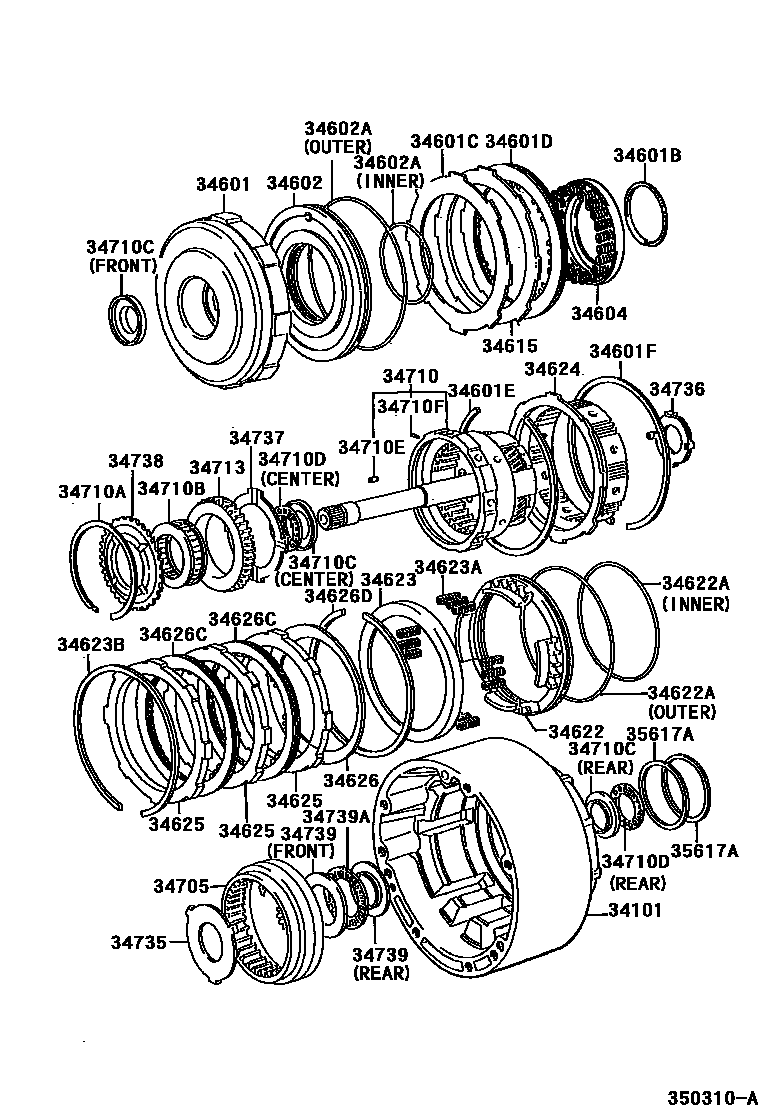

OVERDRIVE GEAR (ATM)

0001 1A42D,A44D,A44DF,A44DL,A45DF 0002 1A42D,A44D,A44DF,A45DF,A45DL 0004 1A44DE,A44DF

34101CASE SUB-ASSY, OVERDRIVE

main34101-22020iCR4#,5#,KR42,52,SR40,50..ATM199812

main34101-28010iCR4#,5#,KR4#,SR40,50..ATM199801-199805

main34101-30062iCR4#,5#,KR4#,SR40,50..ATM199610-199801

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-28010iCR50,SR40,50..ATM199610-199812

main34601-30022iCR4#,5#,KR42,52,SR40,50..ATM199812

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34601CPLATE, CLUTCH (FOR OVERDRIVE)

main34618-30010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-30140iCR40,50,SR40,50..ATM199812-200111

main35677-30160iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-22010iCR40,50,SR40,50..ATM199812-200111

main34602-30030iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-56007iCR4#,5#,KR42,52,SR40,50..ATM199812

main90301-57188iCR4#,5#,KR4#,SR40,50..ATM199610-199808

main90301-99016iCR4#,5#,KR4#,SR40,50..ATM199610-199808

main90301-99058iCR4#,5#,KR4#,SR40,50..ATM199808-199812

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-22010iCR4#,5#,KR42,52,SR40,50..ATM199812

34615FLANGE, OVERDRIVE CLUTCH

main35634-30070iSR40,50..ATM199812-200111

main35675-22010iCR42,52,KR42..ATM199812-199911

main35675-22140iCR42,52,KR42,52..ATM199911

34622PISTON, OVERDRIVE BRAKE

main34622-22020iCR40,50,SR40,50..ATM199812-200111

main34622-30040iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iCR4#,5#,KR4#,SR40,50..ATM199610-199808

main90301-99009iCR4#,5#,KR4#,SR40,50..ATM199610-199808

main90301-99103iCR4#,5#,KR4#,SR40,50..ATM199808-199812

main90301-99111iCR4#,5#,KR42,52,SR40,50..ATM199812

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671×12iCR4#,5#..ATM199610-199812

main90501-11023×20iSR40,50..ATM199610-199812

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34624HUB, OVERDRIVE BRAKE

main34624-26010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-22020iCR42,52,KR42,52..ATM199911

main34625-26010iCR4#,5#,KR4#..ATM; SR40,50..ATM199610-199812

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30050iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-43010×2iCR4#,5#,KR4#..ATM; SR40,50..ATM199610-199812

34626DRING, HOLE SNAP (FOR OVERDRIVE)

main90521-99004iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-30021iCR4#,5#,KR42,52,SR40,50..ATM199812

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-12020iKR42,52..ATM199812

main34710-14011iCR40,50199812-200111

main34710-22040iSR40,50..ATM199812-200111

main34710-28020iCR50..ATM199610-199812

main34710-28030iSR40,50..ATM199610-199812

main34710-30022iCR41,51..ATM199611-199812

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-99003iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34710BCLUTCH, 1WAY, NO.1(FOR OVERDRIVE)

main35791-28010iCR50,SR40,50..ATM199610-199812

main35791-30030iCR4#,51,KR4#..ATM199610-199812

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30031iCR4#,5#,KR42,52,SR40,50..ATM199812

main34739-30041iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main35789-22010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iCR4#,5#,KR42,52,SR40,50..ATM199812

main90374-24001iCR4#,51,KR4#..ATM199610-199812

main90374-37003iCR50,SR40,50..ATM199610-199812

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001×4iCR4#,51,KR4#..ATM199610-199812

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024×4iCR4#,5#,KR42,52,SR40,50..ATM199812

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-28010iCR50,SR40,50..ATM199610-199812

main34713-30020iCR4#,51,KR4#..ATM199610-199812

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iCR4#,5#,KR4#,SR40,50..ATM199610-199812

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-28010iCR50,SR40,50..ATM199610-199812

main34737-30020iCR4#,51,KR4#..ATM199610-199812

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-28010iCR50,SR40,50..ATM199610-199812

main34738-30020iCR4#,51,KR4#..ATM199610-199812

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iCR4#,5#,KR4#,SR40,50..ATM199610-199812

main35789-22030iCR4#,5#,KR42,52,SR40,50..ATM199812

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iCR4#,5#,KR4#,SR40,50..ATM199610-199812

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010×2iCR4#,5#,KR4#,SR40,50..ATM199610-199801

main35617-43010×2iCR4#,5#,KR4#,SR40,50..ATM199801-199812

37 parts on this diagram · 3 diagrams in section
