SPEEDOMETER DRIVEN GEAR (ATM)

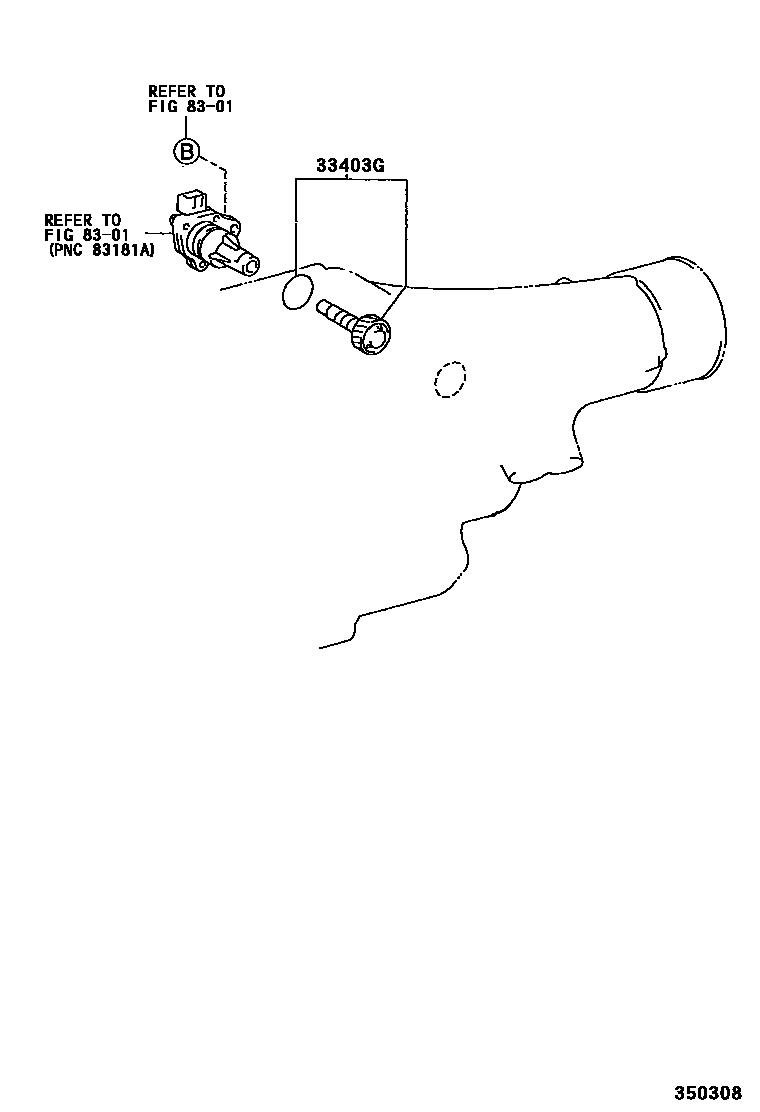

Parts diagram
33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
main33403-29355i199812-200407
main33403-39315i199611-199812
main33482-29225i199611-199812
main33482-29235i199611-199812
main33482-39395i199812-200407
8301METER
→ Go to FIG 83-01

2 parts on this diagram · 2 diagrams in section
