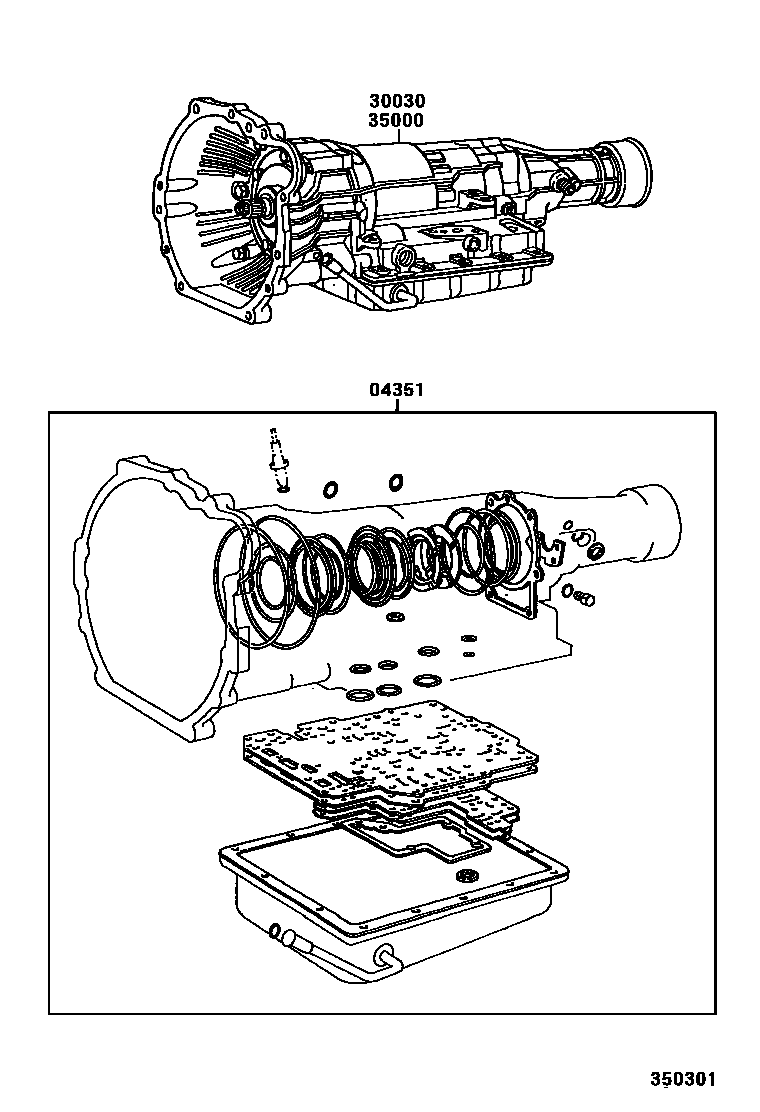

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A42D,A44DE,A44DL,A45DF,A45DL 0002 1A44D,A44DF

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-28020iCR40,50,SR40,50..ATM199610-199812

main04351-28060iCR50,SR40,50..ATM199812-200111

main04351-28080iCR40199812-200111

main04351-2J011iKR52..ATM200412

main04351-30100iKR4#..ATM199611-199812

main04351-30110iCR41,51..ATM199611-199812

main04351-35510iKR42..ATM199812

30030TRANSMISSION ASSY, REBUILT

main30030-28610iSR40..ATM199812-200111

main30030-28620iKR41..ATM199611-199812

main30030-28630iKR41..ATM199611-199812

main30030-28640iKR42..ATM199611-199812

main30030-28770iKR42..ATM199611-199812

main30030-28780iSR40..ATM..B199611-199812

main30030-28790iSR40..ATM199610-199812

main30030-28800iCR41..ATM199611-199812

main30030-28810iCR41..ATM199611-199812

main30030-28820iCR40..ATM199610-199812

main30030-28830iSR50199610-199812

main30030-28840iCR51..ATM199611-199812

main30030-28850iCR50..ATM199610-199812

main30030-28880iSR50199812-200111

main30030-2J030iCR40199812-200111

main30030-2J040iCR50199812-200111

main30030-2J050iKR42..ATM199812-200208

main30030-2J051iKR42..ATM200208

main30030-2J060iKR42..ATM199812-200208

main30030-2J061iKR42..ATM200208

main30030-2J070iCR42..ATM199812-200208

main30030-2J071iCR42..ATM200208-200407

main30030-2J080iCR42..ATM199812-200208

main30030-2J081iCR42..ATM200208-200407

main30030-2J090iCR52..ATM199812-200208

main30030-2J091iCR52..ATM200208-200407

main30030-2J100iKR52..ATM200412

35000TRANSMISSION ASSY, AUTOMATIC

main35000-28610iSR40..ATM199812-200111

main35000-28620iKR41..ATM199611-199812

main35000-28630iKR41..ATM199611-199812

main35000-28640iKR42..ATM199611-199812

main35000-28770iKR42..ATM199611-199812

main35000-28780iSR40..ATM..B199611-199812

main35000-28790iSR40..ATM199610-199812

main35000-28800iCR41..ATM199611-199812

main35000-28810iCR41..ATM199611-199812

main35000-28820iCR40..ATM199610-199812

main35000-28830iSR50199610-199812

main35000-28840iCR51..ATM199611-199812

main35000-28850iCR50..ATM199610-199812

main35000-28880iSR50199812-200111

main35000-2J030iCR40199812-200111

main35000-2J040iCR50199812-200111

main35000-2J050iKR42..ATM199812-200208

main35000-2J051iKR42..ATM200208

main35000-2J060iKR42..ATM199812-200208

main35000-2J061iKR42..ATM200208

main35000-2J070iCR42..ATM199812-200208

main35000-2J071iCR42..ATM200208-200407

main35000-2J080iCR42..ATM199812-200208

main35000-2J081iCR42..ATM200208-200407

main35000-2J090iCR52..ATM199812-200208

main35000-2J091iCR52..ATM200208-200407

main35000-2J100iKR52..ATM200412

3 parts on this diagram · 2 diagrams in section
