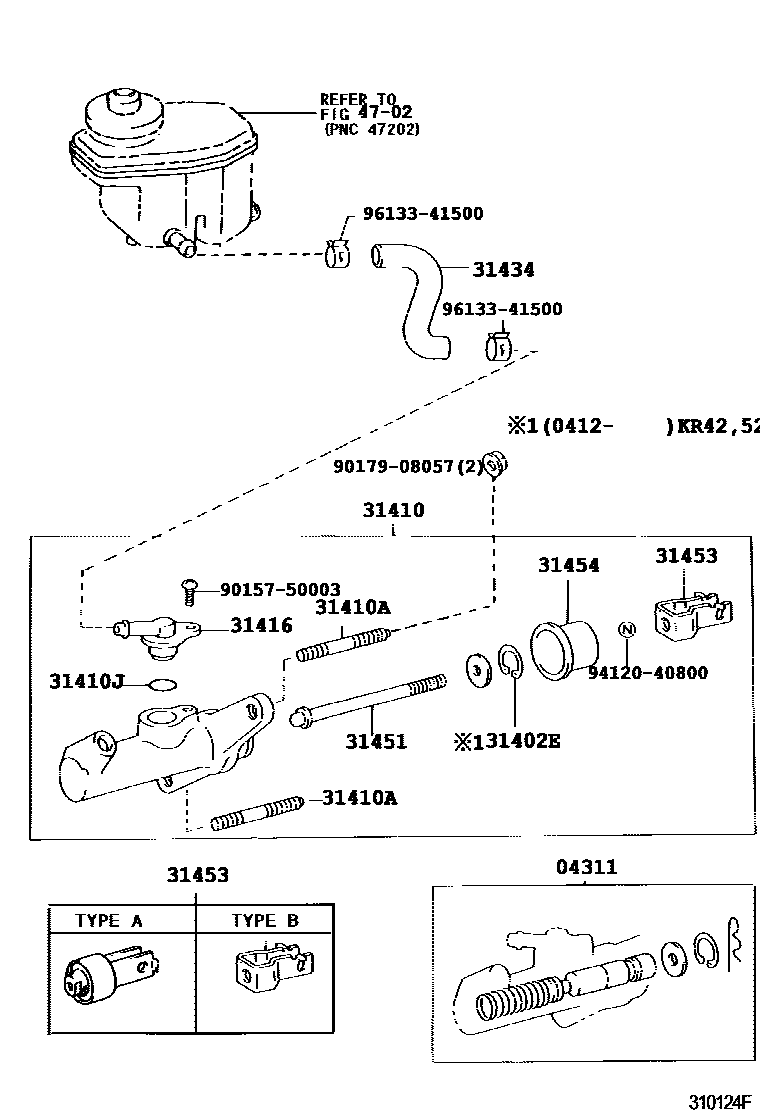

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-26050iCR42,52,KR42,52,SR40..MTM199812

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main96151-02200iKR42,52..MTM200412

31410CYLINDER ASSY, CLUTCH MASTER

main31420-20010iKR42,52..MTM199812

main31420-20020iCR52..MTM;CR42..06S..MTM..CBU;CR42..(03S,05S)..MTM199812-200407

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146×2iCR4#,5#,KR4#,SR40..MTM199610-199812

31410JRING, O(FOR CLUTCH MASTER CYLINDER UNION)

main90301-14001iCR4#,5#,KR4#,SR40..MTM199610-199812

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-20010iKR42,52..MTM199812

31434TUBE, CLUTCH RESERVOIR

main31434-26231iSR40..MTM..D199812-200111

main31434-28080iCR4#,5#,KR4#,SR40..MTM199610-199812

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iKR42,52..MTM199812

main31451-36040iCR42..06S..MTM..IV5199812-200208

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iCR42..06S..MTM..IV5199812-200208

main31453-10040iKR42,52..MTM199812

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iKR42,52..MTM199812

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9015750003

main90157-50003

9017908057

main90179-08057

9412040800

main94120-40800

9613341500

main96133-41500

15 parts on this diagram · 1 diagram in section
