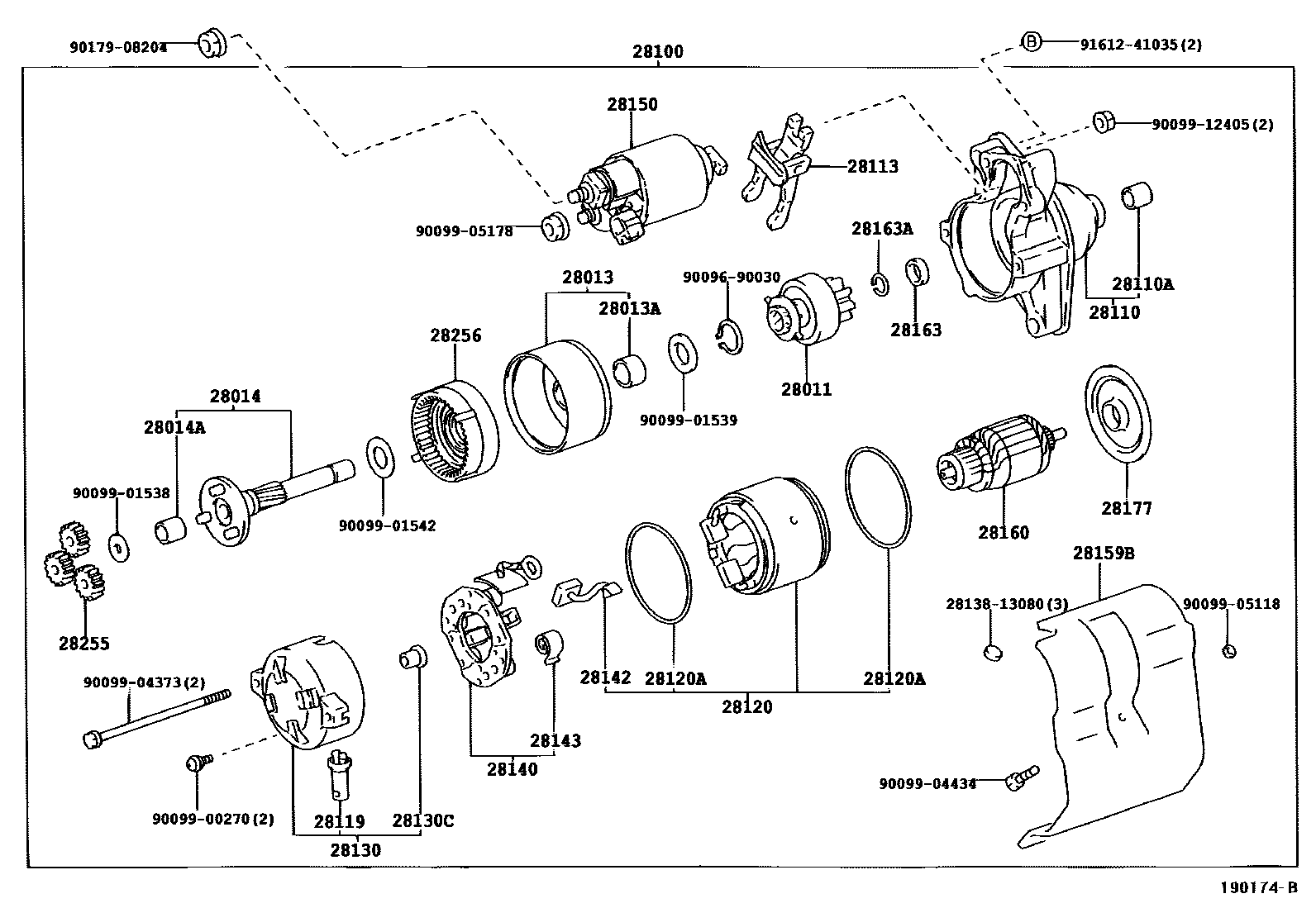

STARTER

0001 112V 0.8KW 0002 112V 1.0KW 0003 112V 0.8KW,1.0KW 0004 112V 1.4KW 0005 112V 2.0KW 0006 112V 2.2KW 0007 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i3SFE..SR40,50..07S;3SFE..SR40,50..B,D,E,V; 3SFE..SR40,50..08S..(Q,S)199812-200111

12V 1.0KW

main28011-64020i3CTE..CR40,50199812-200111

12V 2.2KW

main28011-64130i3CE..CR42..06S..MTM..IV5199812-200208

12V 1.4KW

main28011-64220i3CE..CR52..5D..03S;3CE..CR42..HRF..5D..D..V1199812-200201

main28011-64280i3CT..CR40,50199610-199812

12V 2.0KW

main28011-70020i5K,7K..KR4#199611-199812

12V 0.8KW

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i5K,7K..KR4#199611-199812

main28013-70030i7KE..KR42,52200005

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i5K,7K..KR4#199611-199812

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i5K,7K..KR4#199611-199812

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i5K,7K..KR4#199611-199812

28100STARTER ASSY

main28100-13080i7KE..KR42,52199812

main28100-13120i5K,7K..KR4#199611-199812

main28100-13130i7KE..KR42,52199812

main28100-64370i3CE..CR42..06S..MTM..IV5199812-200208

main28100-64380i3CT..CR40,50199610-199812

main28100-64390i2C,3CT..CR4#,5#199610-199812

main28100-64420i3CE..CR52..5D..03S;3CE..CR42..HRF..5D..D..V1199812-200201

main28100-74170i3SFE..SR40,50199812-200111

28110HOUSING ASSY, STARTER DRIVE

main28110-13080i7KE..KR42..CBU;7KE..KR42..HRF..IV5..V1199812

12V 1.0KW

main28110-13120i5K,7K..KR4#199611-199812

12V 1.0KW

main28110-63050i3SFE..SR40,50199610-199812

12V 1.0KW

main28110-64170i3CTE..CR40,50199812-200111

12V 1.4KW

main28110-64280i3CT..CR40,50199610-199812

12V 2.0KW

main28115-64290i2C,3CT..CR4#,5#199610-199812

12V 2.2KW

28110ABEARING(FOR STARTER HOUSING)

main90099-10171i5K,7K..KR4#199611-199812

28113LEVER, STARTER PINION DRIVE

main28113-70020i5K,7K..KR4#199611-199812

28119COVER, STARTER END FRAME

main28199-46080×2i3CE..CR42..06S..MTM..IV5199812-200208

12V 2.2KW

main28199-74110i3CTE..CR40,50199812-200111

12V 1.4KW,2.0KW

28120YOKE ASSY, STARTER

main28120-13081i5K,7K..KR4#199611-199812

12V 0.8KW

main28120-13130i7KE..KR42,52199812

12V 1.0KW

main28120-26071i3SFE..SR40,50..07S;3SFE..SR40,50..B,D,E,V; 3SFE..SR40,50..08S..(Q,S)199812-200111

12V 1.0KW

main28120-54380i3CT..CR40,50199610-199812

12V 2.0KW

main28120-55050i3CTE..CR40,50199812-200111

12V 1.4KW

main28120-64040i2C,3CT..CR4#,5#199610-199812

12V 2.2KW

main28120-64130i2C..CR41,51199611-199708

12V 1.4KW

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i7KE..KR42,52199812

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i3SFE..SR40,50..07S;3SFE..SR40,50..B,D,E,V; 3SFE..SR40,50..08S..(Q,S)199812-200111

12V 1.0KW

main28130-13080i7KE..KR42,52199812

main28130-64170i2C..CR41,51199611-199812

main28130-75120i3CT..CR40,50199610-199812

28130CBEARING, STARTER FLANGE

main90099-10183i5K,7K..KR4#199611-199812

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i5K,7K,3SFE..KR4#,SR40,50199610-199812

12V 1.0KW

main28140-54380i3CT..CR40,50199610-199812

12V 2.0KW

main28140-64040i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

12V 2.2KW

main28140-64130i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

12V 1.4KW

main28140-70020i5K,7K..KR4#199611-199812

12V 0.8KW

28142BRUSH, STARTER

main28142-70020×2i5K,7K..KR4#199611-199812

28143SPRING, STARTER BRUSH

main28143-54380×4i3CT..CR40,50199610-199812

12V 2.0KW

main28143-70020×4i7KE..KR42,52199812

main90099-17112×4i3CTE,3SFE..CR40,50,SR40,50199812-200111

12V 1.0KW,1.4KW

main90099-17115×4i2C,3CT..CR4#,5#199610-199812

12V 2.2KW

28150SWITCH ASSY, MAGNET STARTER

main28150-10021i7KE..KR42,52199812

main28150-13011i5K,7K..KR4#199611-199712

12V 1.0KW

main28150-13012i5K,7K..KR4#199712-199812

12V 1.0KW

main28150-64310i2C,3CT..CR4#,5#199711-199812

12V 2.2KW

main28150-64330i2C..CR51..5D..03S;2C..CR41..HRF..5D..D..V1199711-199812

main28150-64341i2C..CR41,51199711-199812

12V 1.4KW

main28150-64370i2C..CR41,51199611-199708

12V 1.4KW

main28150-64371i2C..CR41,51199708-199711

12V 1.4KW

main28150-64380i3CT..CR40,50199610-199812

12V 2.0KW

main28150-64390i2C,3CT..CR4#,5#199610-199711

12V 2.2KW

main28150-64420i2C..CR51..5D..03S;2C..CR41..HRF..5D..D..V1199611-199711

main28150-74170i3SFE..SR40,50199812-200111

28159BCOVER, MAGNET SWITCH

main28159-10040i3CTE..CR40,50;3SFE..SR40,50..08S..(Q,S); 3SFE..SR40,50..07S;3SFE..SR40,50..B,D,E,V199812-200111

12V 1.0KW; 12V 1.0KW,2.2KW

main28159-13080i5K,7K..KR4#199611-199812

12V 0.8KW

main28159-54380i3CT..CR40,50199610-199812

12V 2.0KW

main28159-55050i2C..CR41,51199611-199812

12V 1.4KW

main28159-64180i2C,3CT..CR4#,5#199610-199711

12V 2.2KW

28160ARMATURE ASSY, STARTER

main28160-26071i3SFE..SR40,50..07S;3SFE..SR40,50..B,D,E,V; 3SFE..SR40,50..08S..(Q,S)199812-200111

12V 1.0KW

main28160-54380i3CT..CR40,50199610-199812

12V 2.0KW

main28160-64041i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

12V 2.2KW

main28160-70021i7KE..KR42,52199812

12V 0.8KW

main28160-70050i7KE..KR42,52199812

12V 1.0KW

main28160-74070i3CE..CR42..06S..MTM..IV5199812-200208

12V 1.4KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-70020i5K,7K..KR4#199611-199812

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07124i5K,7K..KR4#199611-199812

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i5K,7K..KR4#199611-199812

28255GEAR, PLANET

main28255-70020×3i5K,7K..KR4#199611-199812

28256GEAR, STARTER INTERNAL

main28256-70020i5K,7K..KR4#199611-199812

2813813080RUBBER(FOR STARTER BEARING COVER)

main28138-13080

9009690030

main90096-90030

9009900270

main90099-00270

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009904434

main90099-04434

9009905118

main90099-05118

9009905178

main90099-05178

9009912405

main90099-12405

9017908204

main90179-08204

9161241035

main91612-41035

38 parts on this diagram · 7 diagrams in section
