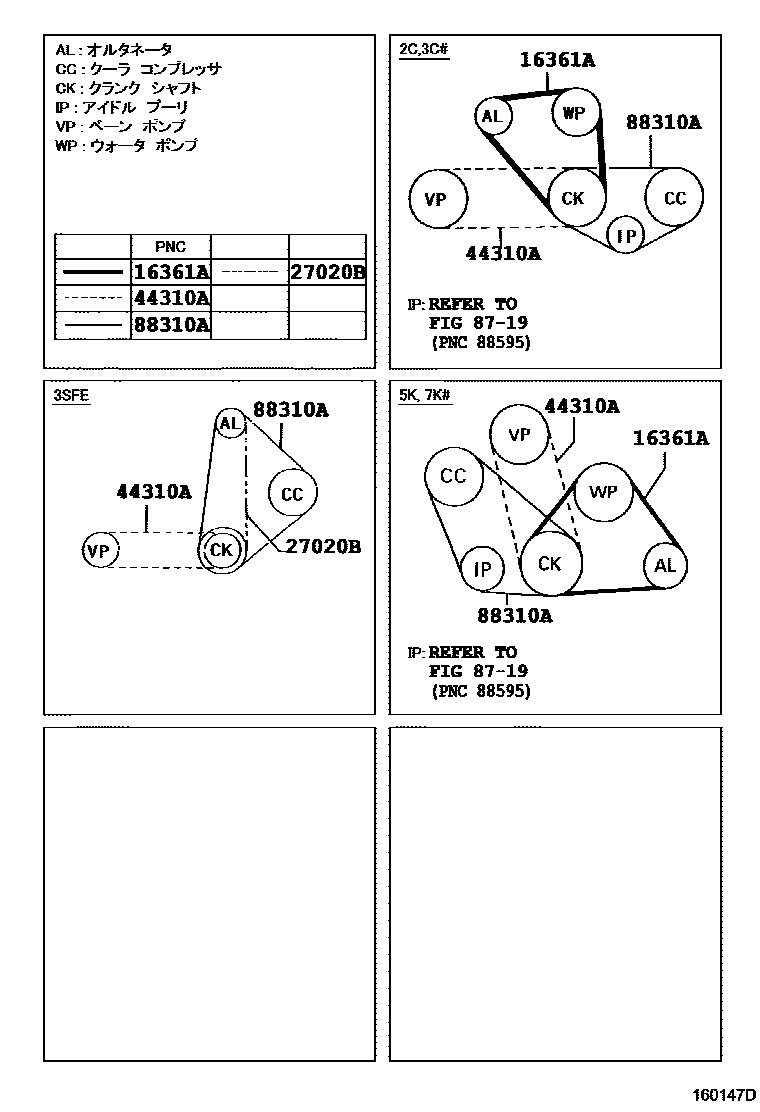

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02398i3CE..CR42..06S..MTM..IV5199812-200208

main99321-00870i5K..KR41199611-199812

main99321-00885i7K..KR42199611-199812

27020BBELT, V(FOR ALTERNATOR)

main90916-02355i3SFE..SR40,50..B199611-199812

44310ABELT, V(FOR VANE PUMP)

main99332-00880iKR42,52199812

main99363-30810iCR42..06S..MTM..IV5199812-200208

main99364-30960iSR40,50199812-200111

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-10815iCR4#,5#199610-199812

main99332-10995iKR42,52199812

main99365-21100iSR40,50199610-199710

main99365-31090iSR40,50199812-200111

main99365-31100iSR40,50199801-199812

5 parts on this diagram · 1 diagram in section
