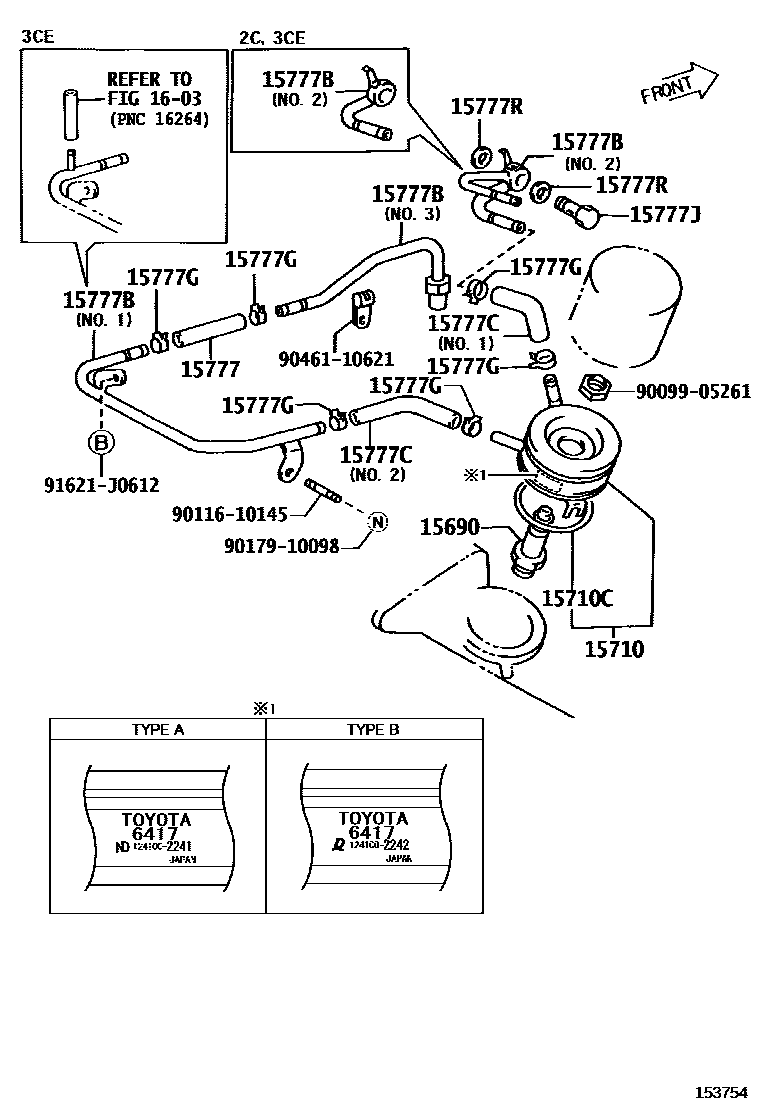

ENGINE OIL COOLER

0001 1 0002 1

15690VALVE ASSY, OIL COOLER RELIEF

main15695-64010i3CTE..CR40,50199812-200111

main15695-64030i2C..CR41,51199611-199812

15710COOLER ASSY, OIL

main15710-64170i2C..CR41,51199611-199810

main15710-64171i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main15710-64180i3CT..CR40,50199610-199810

main15710-64181i3CTE..CR40,50199812-200111

15710CGASKET(FOR OIL COOLER)

main90301-67003i2C,3CT..CR4#,5#199610-199702

main90301-67004i2C,3CT..CR4#,5#199702-199812

15777HOSE, OIL COOLER

main90445-21006i2C,3CT..CR4#,5#199610-199812

main99565-20200i3CTE..CR40,50199812-200111

15777BPIPE, OIL COOLER

main15766-64030i3CTE..CR40,50199812-200111

main15767-64100i2C,3CT..CR4#,5#199610-199812

main15767-64120i3CE..CR42..06S..MTM..IV5199812-200208

main15768-64140i2C..CR41,51199611-199812

main15768-64150i3CTE..CR40,50199812-200111

main15769-64011i2C,3CT..CR4#,5#199610-199812

15777CHOSE, OIL COOLER

main15777-64080i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main15778-64070i2C,3CT..CR4#,5#199610-199812

main15779-64020i3CTE..CR40,50199812-200111

15777GCLAMP OR CRIP, HOSE

main90467-20005×6i2C,3CT..CR4#,5#199610-199812

main96134-41900×6i3CE..CR42..06S..MTM..IV5199812-200208

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i3CE..CR42..06S..MTM..IV5199812-200208

main90401-20010i3CT..CR40,50199610-199812

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20014×2i2C,3CT..CR4#,5#199610-199812

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9009905261

main90099-05261

9011610145

main90116-10145

9017910098

main90179-10098

9046110621

main90461-10621

91621J0612

main91621-J0612

15 parts on this diagram · 2 diagrams in section
