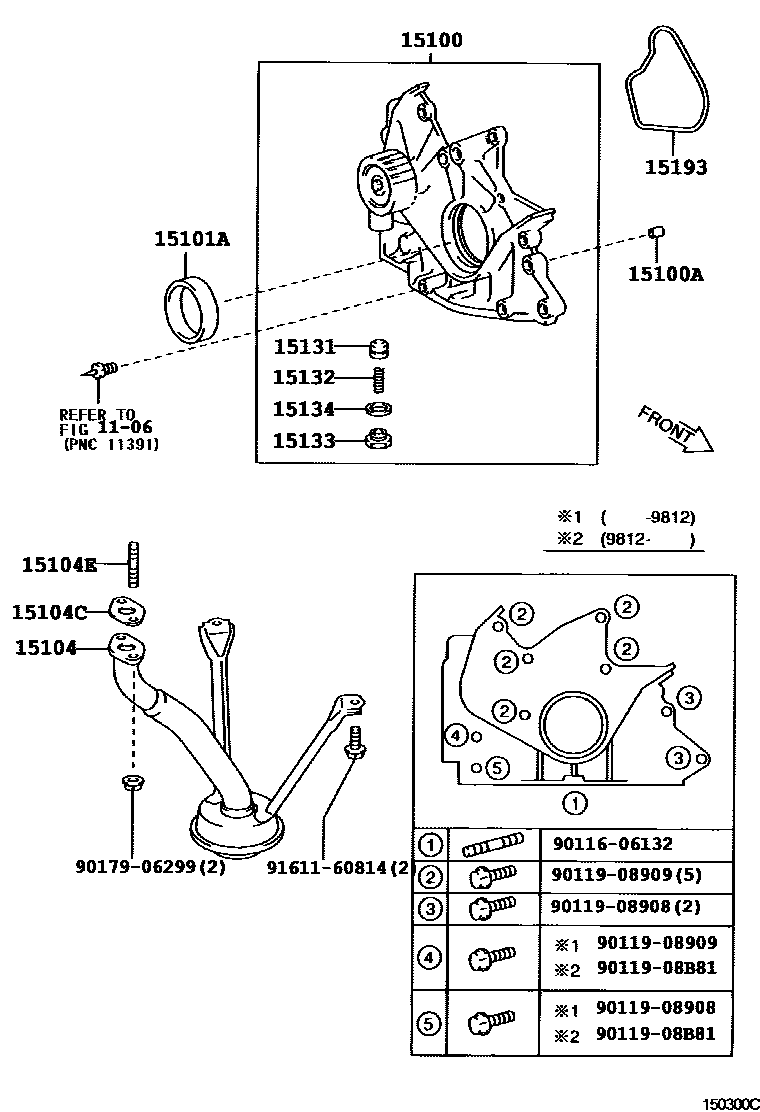

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

15100PUMP ASSY, OIL

main15100-13030i5K..KR41199611-199812

main15100-64040i2C,3CT..CR4#,5#199610-199812

main15100-64041i3C#..CR4#,5#199812-199906

main15100-64042i3CTE..CR40,50199906-200111

main15100-74050i3SFE..SR40,50199610-199812

main15110-13010i7K..KR42199611-199812

15100APIN, RING(FOR OIL PUMP SET)

main90253-11021×2i2C,3CT..CR4#,5#199610-199812

15101ASEAL(FOR CRANKSHAFT)

main90311-42031i3CE..CR42..06S..MTM..IV5199812-200208

main90311-42032i3SFE..SR40,50199610-199710

main90311-42035i3SFE..SR40,50199812-200111

15104STRAINER SUB-ASSY, OIL

main15104-13010i7KE..KR42199812-200412

main15104-13030i7KE..KR42,52200412

main15104-64090i3CE..CR42..06S..MTM..IV5199812-200208

main15104-64100i3CTE..CR40,50199812-200111

main15104-74130i3SFE..SR40,50199610-199812

main15104-74131i3SFE..SR40,50199812-200111

15104CGASKET(FOR OIL STRAINER)

main15149-64030i2C,3CT..CR4#,5#199610-199812

main15149-64070i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main15149-74030i3SFE..SR40,50199610-199812

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06132×2i3CTE..CR40,50199812-200111

15131VALVE, OIL PUMP RELIEF

main15131-24010i3SFE..SR40,50199610-199812

main15131-64020i2C,3CT..CR4#,5#199610-199812

main15131-64041i3C#..CR4#,5#199906-200407

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i3C#..CR4#,5#199906-200407

main15132-40010i3SFE..SR40,50199610-199812

main15132-64012i2C,3CT..CR4#,5#199610-199812

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i2C,3CT..CR4#,5#199610-199812

main15133-64041i3C#..CR4#,5#199906-200407

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i2C,3CT..CR4#,5#199610-199812

main15134-67020i3C#..CR4#,5#199906-200407

15193GASKET, OIL PUMP

main15193-64021i2C,3CT..CR4#,5#199610-199804

main15193-64022i2C,3CT..CR4#,5#199804-199812

main15197-74040i3SFE..SR40,50199610-199812

9011606132

main90116-06132

9011908908

main90119-08908

9011908909

main90119-08909

9011908B81

main90119-08B81

9017906299

main90179-06299

9161160814

main91611-60814

18 parts on this diagram · 4 diagrams in section
