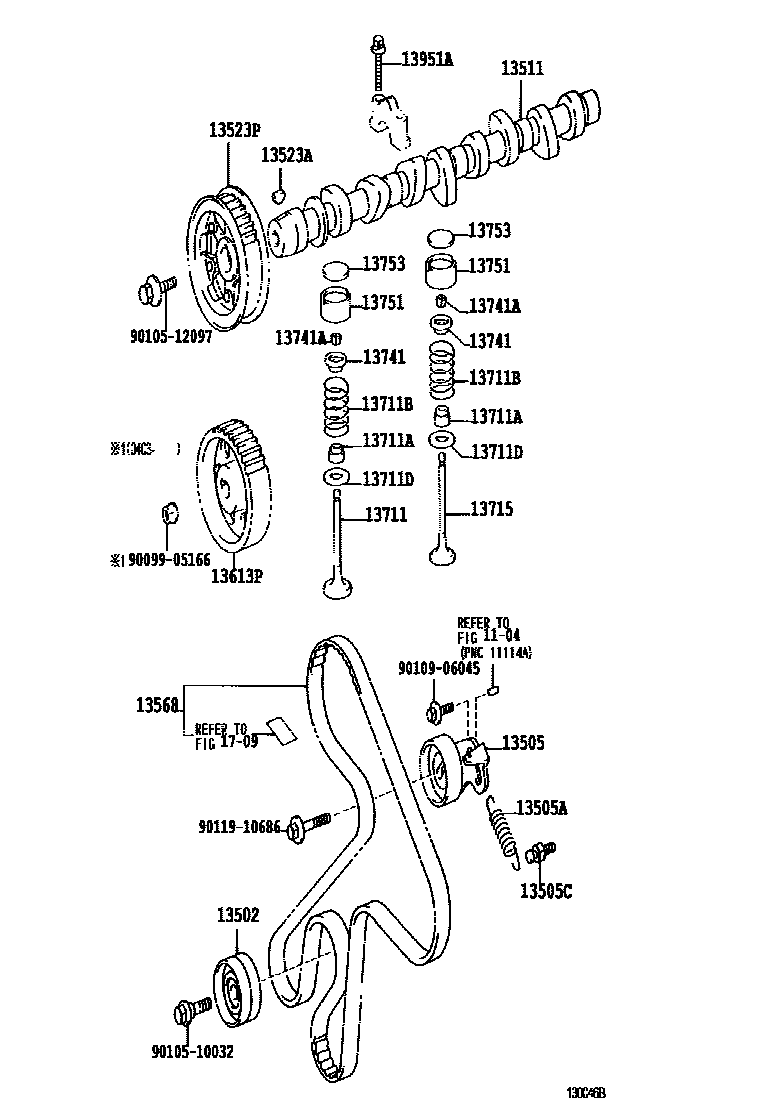

CAMSHAFT & VALVE

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-63011i3SFE..SR40,50199610-199812

main13503-64020i3C#..CR4#,5#199812-199903

main13503-64021i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199903-200407

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-64011i2C,3CT..CR4#,5#199610-199812

main13505-64012i3CE..CR42..06S..MTM..IV5199901-200208

main13505-74011i3SFE..SR40,50199610-199812

13505ASPRING, TENSION(FOR IDLER)

main90507-17003i3SFE..SR40,50199709-199812

main90507-18006i3CE..CR42..06S..MTM..IV5199812-200208

main90507-18030i3SFE..SR40,50199610-199709

13505CPIN(FOR IDLER SPRING TENSION)

main13575-64010i2C,3CT..CR4#,5#199610-199812

13511CAMSHAFT

main13501-13042i7KE..KR42199812-200001

main13501-13043i7KE..KR42,52200001

main13501-74050i3SFE..SR40,50199812-200111

main13511-64071i2C..CR41,51199611-199812

main13511-64090i3CT..CR40,50199610-199812

main13511-64120i3CE..CR42..06S..MTM..IV5199812-200208

main13511-64130i3CTE..CR40,50199812-200111

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-13030i5K,7K..KR4#199611-199812

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i2C,3CT..CR4#,5#199610-199812

13523PPULLEY, CAMSHAFT TIMING

main13051-64012i3CE..CR42..06S..MTM..IV5199812-200208

main13523-03030i3SFE..SR40,50..ATM199812-200111

main13523-74020i3SFE..SR40..MTM199902-200111

main13523-74040i3SFE..SR40,50..ATM199812-200111

main13523-74050i3SFE..SR40,50199610-199712

13568BELT, TIMING

main13568-69066i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199908-200407

main13568-69067i3C#..CR4#,5#199812-199908

main13568-79095i3SFE..SR40,50199610-199704

main13568-79225i3SFE..SR40,50199812-200111

13613PPULLEY, INJECTION PUMP DRIVE

main13613-64011i2C,3CT..CR4#,5#199610-199812

13711VALVE, INTAKE

main13711-24011×4i7KE..KR42,52199812

main13711-64020×4i2C..CR41,51199611-199812

main13711-64030×4i3CT..CR40,50199610-199812

main13711-74080×8i3SFE..SR40,50199812-200111

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02066×8i3SFE..SR40,50199610-199703

main90913-02088×8i3SFE..SR40,50199703-200009

main90913-02090×8i3SFE..SR40,50199812-200111

main90913-02094×8i5K,7K..KR4#199611-199812

main90913-02103×8i3SFE..SR40,50200010-200111

main90913-02110×8i2C,3CT..CR4#,5#199610-199704

main90913-02116×8i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

13711BSPRING, COMPRESSION(FOR INNER)

main90501-42010×8i7KE..KR42,52199812

main90501-43002×8i3CE..CR42..06S..MTM..IV5199812-200208

main90501-43003×8i2C,3CT..CR4#,5#199610-199812

main90504-37002×16i3SFE..SR40,50199812-200111

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16002×8i5K,7K..KR4#199611-199812

main90201-16010×8i2C,3CT..CR4#,5#199610-199705

main90201-22010×8i2C,3CT..CR4#,5#199705-199812

13715VALVE, EXHAUST

main13715-24013×4i7KE..KR42,52199812

main13715-64030×4i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main13715-64040×4i3CTE..CR40,50199812-200111

main13715-74080×8i3SFE..SR40,50199812-200111

13741RETAINER, VALVE SPRING

main13741-24020×8i5K,7K..KR4#199611-199812

main13741-43010×8i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main13741-50020×16i3SFE..SR40,50199610-199812

13741ALOCK, VALVE SPRING RETAINER

main90913-03005×16i5K,7K..KR4#199611-199812

main90913-03014×16i2C,3CT..CR4#,5#199610-199812

main90913-03021×32i3SFE..SR40,50199812-200111

13751LIFTER, VALVE

main13750-0W020×8i5K,7K..KR4#199611-199812

main13751-64011×8i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main13751-74020×16i3SFE..SR40,50199610-199812

13753SHIM, VALVE ADJUSTING

main13753-64010×8i2C,3CT..CR4#,5#199610-199812

main13753-64030×8i2C,3CT..CR4#,5#199610-199812

main13753-64050×8i3CE..CR42..06S..MTM..IV5199812-200208

main13753-64070×8i3CE..CR42..06S..MTM..IV5199812-200208

main13753-64090×8i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main13753-64110×8i3CTE..CR40,50199812-200111

main13753-64130×8i2C,3CT..CR4#,5#199610-199812

main13753-64150×8i3CTE..CR40,50199812-200111

main13753-64170×8i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main13753-64190×8i3CE..CR42..06S..MTM..IV5199812-200208

main13753-64210×8i3CE..CR42..06S..MTM..IV5199812-200208

main13753-64230×8i3CTE..CR40,50199812-200111

main13753-64250×8i2C,3CT..CR4#,5#199610-199812

main13753-64270×8i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main13753-64290×8i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main13753-64310×8i3CTE..CR40,50199812-200111

main13753-64330×8i3CE..CR42..06S..MTM..IV5199812-200208

main13753-64350×8i2C,3CT..CR4#,5#199610-199812

main13753-64370×8i3CTE..CR40,50199812-200111

main13753-64390×8i3CTE..CR40,50199812-200111

main13753-64410×8i3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5199812-200407

main13753-64430×8i3CTE..CR40,50199812-200111

main13753-64450×8i3CTE..CR40,50199812-200111

main13753-64470×8i3CE..CR42..06S..MTM..IV5199812-200208

main13753-64490×8i3CTE..CR40,50199812-200111

main13753-74010×16i3SFE..SR40,50199610-199812

main13753-74030×16i3SFE..SR40,50199812-200111

main13753-74050×16i3SFE..SR40,50199610-199812

main13753-74070×16i3SFE..SR40,50199812-200111

main13753-74090×16i3SFE..SR40,50199610-199812

main13753-74110×16i3SFE..SR40,50199812-200111

main13753-74130×16i3SFE..SR40,50199610-199812

main13753-74150×16i3SFE..SR40,50199812-200111

main13753-74170×16i3SFE..SR40,50199610-199812

main13753-74190×16i3SFE..SR40,50199610-199812

main13753-74210×16i3SFE..SR40,50199812-200111

main13753-74230×16i3SFE..SR40,50199812-200111

main13753-74250×16i3SFE..SR40,50199610-199812

main13753-74270×16i3SFE..SR40,50199812-200111

main13753-74290×16i3SFE..SR40,50199610-199812

main13753-74310×16i3SFE..SR40,50199812-200111

main13753-74330×16i3SFE..SR40,50199812-200111

13951SUPPORT, VALVE ROCKER, NO.1

main13952-24012×3i5K,7K..KR4#199611-199812

13951ABOLT(FOR ROCKER SUPPORT SET)

main90105-08028×6i7KE..KR42,52199812

main91621-60840×10i2C,3CT..CR4#,5#199610-199812

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9009905166

main90099-05166

9010510032

main90105-10032

9010512097

main90105-12097

9010906045

main90109-06045

9011910686

main90119-10686

28 parts on this diagram · 3 diagrams in section
