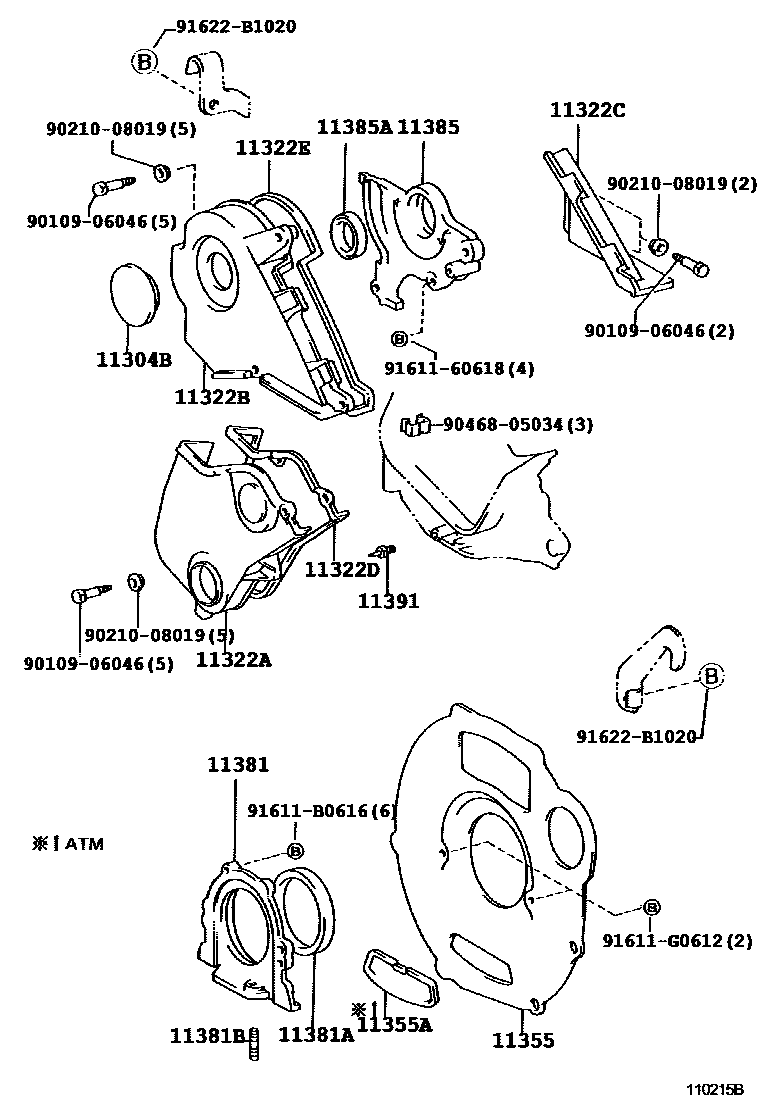

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74050i3SFE..SR40,50199812-200111

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01357i2C,3CT..CR4#,5#199610-199812

main90950-01489i3SFE..SR40,50199610-199812

11322ACOVER, TIMING BELT, NO.1

main11321-64010i2C,3CT..CR4#,5#199610-199811

main11321-64011i2C,3CT..CR4#,5#199811-199812

main11321-64080i3CTE..CR40,50199812-200111

11322BCOVER, TIMING BELT, NO.2

main11322-64010i2C,3CT..CR4#,5#199610-199812

11322CCOVER, TIMING BELT, NO.3

main11323-64011i2C,3CT..CR4#,5#199610-199812

11322DGASKET, TIMING BELT COVER, NO.1

main11328-64020i2C,3CT..CR4#,5#199610-199812

main11328-64070i3CE..CR42..06S..MTM..IV5199812-200208

11322EGASKET, TIMING BELT COVER, NO.2

main11329-64020i2C,3CT..CR4#,5#199610-199812

11355PLATE, REAR END

main11355-06010i7KE..KR42,52..MTM199812

main11355-06020i7K..KR42..ATM199611-199812

main11355-13012i5K..KR41..MTM199611-199812

main11355-24043i5K..KR41..ATM199611-199812

main11355-63010i3SFE..SR40,50199812-200111

main11355-64011i3CE..CR52..MTM;3CE..CR42..06S..MTM..CBU;3CE..CR42..(03S,05S)..MTM199812-200407

main11355-64021i2C,3CT..CR4#,5#..ATM199610-199812

main11355-64090i3CTE..CR40,50199812-200111

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01343i7KE..KR42,52..ATM199812

main90950-01548i3C#..CR4#,5#..ATM199812-200407

11381RETAINER, ENGINE REAR OIL SEAL

main11381-13011i7KE..KR42,52199812

main11381-63012i3SFE..SR40,50199812-200111

main11381-64012i2C,3CT..CR4#,5#199610-199812

main11381-64020i3CTE..CR40,50199812-200111

11381ASEAL, ENGINE REAR OIL

main90311-70004i5K..KR41199611-199705

main90311-70007i7K..KR42199611-199705

main90311-70012i7KE..KR42,52200107

main90311-85006i3SFE..SR40,50199610-199801

main90311-85009i3SFE..SR40,50199801-199812

main90311-90005i2C,3CT..CR4#,5#199610-199612

main90311-90008i2C,3CT..CR4#,5#199612-199812

11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)

main90109-06291×2i7KE..KR42,52199812

main90116-06035×2i5K..KR41199611-199812

main90116-06134×2i3CTE..CR40,50199812-200111

11385RETAINER, CAMSHAFT OIL SEAL

main11382-64011i2C,3CT..CR4#,5#199610-199812

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38044i3CT..CR40,50199610-199611

main90311-38061i2C,3CT..CR4#,5#199611-199812

main90311-38081i3CTE..CR40,50199906-200111

11391POINTER, TIMING

main11391-64020i2C,3CT..CR4#,5#199610-199812

9010906046

main90109-06046

9021008019

main90210-08019

9046805034

main90468-05034

9161160618

main91611-60618

91611B0616

main91611-B0616

91611G0612

main91611-G0612

91622B1020

main91622-B1020

22 parts on this diagram · 3 diagrams in section
