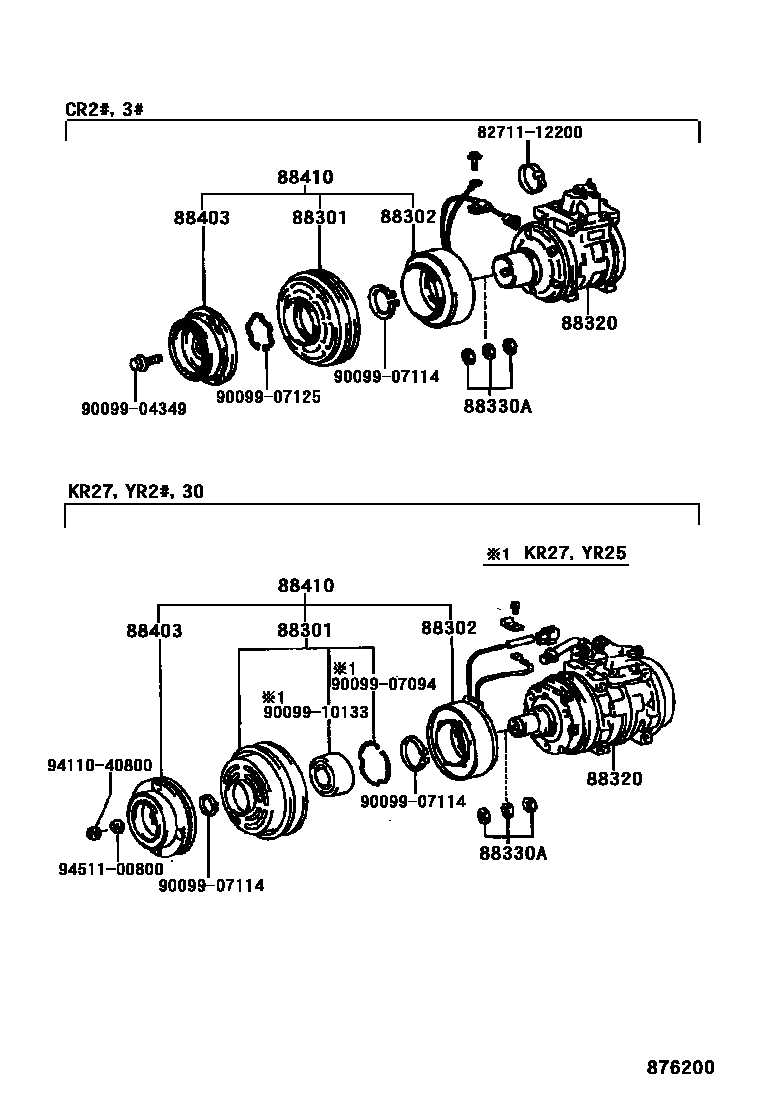

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-22030iKR27,YR25199201-199309

main88412-22240iKR27,YR25199309-199610

main88412-28030iYR21,30199201-199610

main88412-28040iCR29..MRF;CR21,22,27,28,30,31,36,37199201-199610

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22180iKR27,YR25199201-199309

main88411-22300iKR27,YR25199309-199610

main88411-22310iYR21,30199309-199610

main88411-28010iCR2#,36;CR37..5D199201-199309

main88411-28030iCR29,38..HRF199309-199610

main88411-2B080iCR37..4D199201-199309

main88411-2B080iCR30,YR21,30199201-199309

88320COMPRESSOR ASSY, COOLER

main88320-28120iYR21,30199201-199309

main88320-28130iCR2#,36;CR37..5D199201-199309

main88320-28170iKR27199201-199309

main88320-28180iYR25199201-199309

main88320-28190iCR30199201-199309

main88320-28190iCR30199201-199309

main88320-28220iYR25199309-199610

main88320-28230iKR27199309-199610

main88320-28240iCR29..MRF;CR22,27,31,36199309-199610

main88320-28250iYR21,30199309-199610

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iKR27,YR25199201-199610

main88335-14020iCR29..MRF;CR21,22,27,28,30,31,36,37,YR21,30199201-199610

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iKR27,YR25199201-199610

main88403-16011iCR2#,3#,YR21,30199201-199309

main88403-30290iCR29,38..HRF199309-199610

88410CLUTCH ASSY, MAGNET

main88410-22290iKR27,YR25199201-199309

main88410-28070iYR21,30199201-199309

main88410-28080iCR2#,36;CR37..5D199201-199309

main88410-28090iCR30199201-199309

main88410-28090iCR30199201-199309

main88410-28120iKR27,YR25199309-199610

main88410-28130iCR29..MRF;CR22,27,31,36199309-199610

main88410-28140iYR21,30199309-199610

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9009904349

main90099-04349

9009907094

main90099-07094

9009907114

main90099-07114

9009907125

main90099-07125

9009910133

main90099-10133

9411040800

main94110-40800

9451100800

main94511-00800

14 parts on this diagram · 4 diagrams in section
