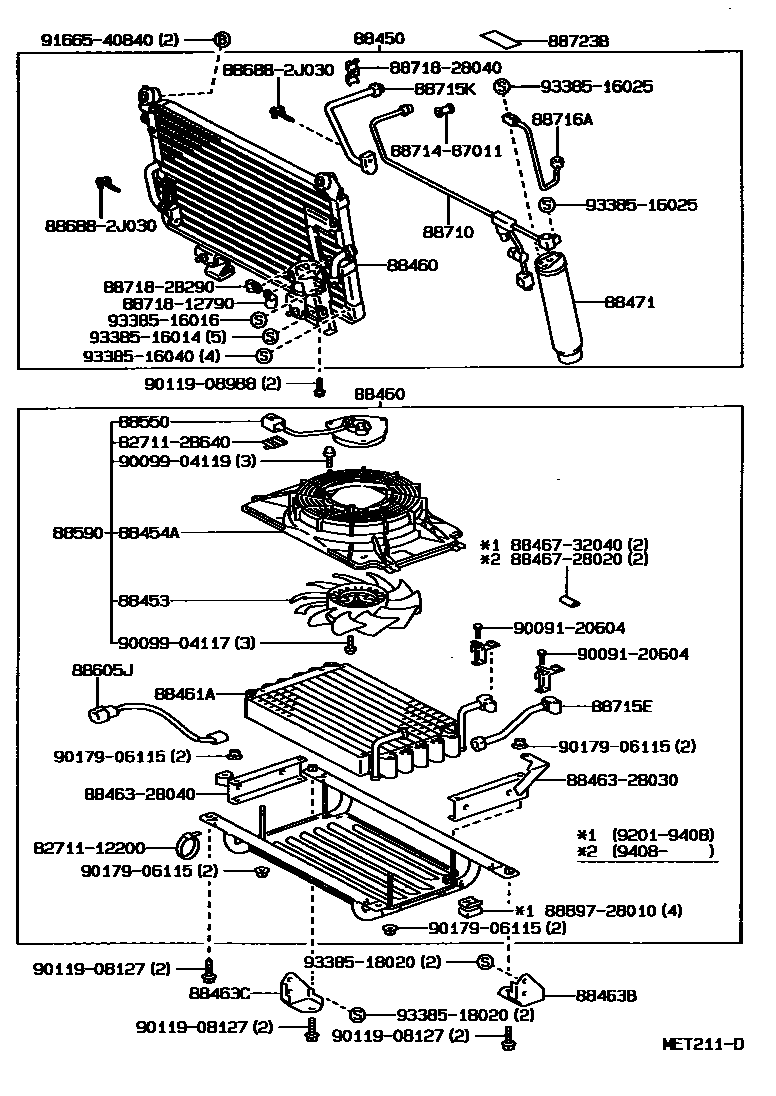

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER DUAL(MAKER OPTION) 0002 1CONDENSER DUAL(MAKER OPTION) 0004 1CONDENSER DUAL(MAKER OPTION) 0006 1CONDENSER DUAL(MAKER OPTION) 0007 1CONDENSER DUAL(MAKER OPTION) 0008 1CONDENSER DUAL(DEALER OPTION)0009 1CONDENSER DUAL(DEALER OPTION)0010 1CONDENSER SINGLE(DEALER OPTIO0012 1CONDENSER SINGLE(DEALER OPTIO0013 1CONDENSER SINGLE(DEALER OPTIO0015 1CONDENSER SINGLE(DEALER OPTIO0016 1CONDENSER SINGLE(DEALER OPTIO0017 1CONDNSER SINGLE(DEALER OPTION0018 1CONDENSER SINGLE(DEALER OPTIO0019 1PIPING(MAKER OPTION) 0020 1PIPING(MAKER OPTION) 0022 1PIPING(MAKER OPTION) 0023 1PIPING(MAKER OPTION) 0024 1PIPING(MAKER OPTION) 0025 1PIPING(MAKER OPTION) 0026 1PIPING DUAL(DEALER OPTION) 0027 1PIPING DUAL(DEALER OPTION) 0028 1PIPING DUAL(DEALER OPTION) 0029 1PIPING SINGLE(DEALER OPTION) 0031 1PIPING SINGLE(DEALER OPTION) 0033 1PIPING SINGLE(DEALER OPTION) 0035 1PIPING SINGLE(DEALER OPTION) 0036 1PIPING SINGLE(DEALER OPTION) 0037 1PIPING SINGLE(DEALER OPTION) 0038 1PIPING SINGLE(DEALER OPTION) 0039 1PIPING SINGLE(DEALER OPTION) 0040 1RADIATER PACKING(MAKER OPTION0041 1RADIATER PACKING(DEALER OPTIO0042 1O RING 0043 1W(COOL BOX).O RING

88450CONDENSER ASSY, W/RECEIVER

main88450-28040iCR21,YR21199201-199309

main88450-28180iYR21199309-199610

88453FAN, COOLING (FOR CONDENSER)

main88453-28010×2iCR30..MTM; YR30199201-199309

main88453-28020iCR31..ATM; CR31..MTM;CR30,37..ATM199201-199610

REAR

main88453-28030iCR31..MTM;CR30,37..ATM199201-199610

FRONT

main88453-28040iCR22,YR30; CR22..D,G; CR29..HRF; CR29..MRF;CR36,YR21199408-199610

DUAL

88454ASHROUD, FAN

main88454-28010iCR29..HRF; YR21;CR29..MRF;CR22,36..D,G,N199309-199408

main88454-28020×2iCR31..MTM;CR30,37..ATM199201-199610

main88454-28040iCR31..ATM; CR38..ATM199309-199610

main88454-28070iCR22,YR30; CR22..D,G; CR29..HRF; CR29..MRF;CR36,YR21199408-199610

DUAL

88460CONDENSER ASSY, COOLER

main88450-28080iCR30..ATM; CR37..ATM199201-199309

main88460-28110iCR21,YR21; CR28..4D199201-199309

main88460-28130iCR30,37..(B,D)..4D; CR36;CR37..MTM..5D199201-199309

main88460-28140iCR37..4D; YR30;CR30..MTM199201-199309

main88460-28150iCR30..ATM199201-199207

main88460-28180iCR21,28,YR21..(B,D)..4D; CR21,YR21; CR28..4D; CR28..5D;CR27,KR27,YR25199201-199309

main88460-28200iCR30..ATM199207-199309

main88460-28270iCR31..ATM; CR38..ATM199309-199610

main88460-28280iCR31..ATM; CR38..ATM199309-199610

main88460-28290iCR31..MTM199309-199610

main88460-28300iCR22,YR30199309-199408

main88460-28310iYR21199309-199408

FLOOR

main88460-28320iCR22..D,G; CR29..HRF; CR29..MRF199309-199408

main88460-28330iCR31..MTM199309-199610

main88460-28340iCR31..MTM..(D,G); CR38..MTM199309-199610

main88460-28350iCR36199309-199408

main88460-28360iCR27,KR27,YR25; YR21; YR21..MRF199309-199610

main88460-28370iCR22,YR30199408-199610

main88460-28380iYR21199408-199610

FLOOR

main88460-28390iCR22..D,G; CR29..HRF; CR29..MRF199408-199610

main88460-28400iCR36199408-199610

88461ACORE, COOLER CONDENSER

main88461-28100iCR30,37..(B,D)..4D; CR36;CR37..MTM..5D;CR21,28,YR21..(B,D)..4D199201-199309

main88461-28110iCR31..ATM; CR38..ATM199309-199610

FLOOR

main88461-28120iCR31..ATM; CR38..ATM199309-199610

RADIATOR

main88461-28130iCR31..MTM; CR31..MTM..(D,G); CR38..MTM199309-199610

main88461-28140iCR31..MTM199309-199610

main88461-28170iCR22,YR30199309-199610

REAR

main88461-28180iCR22,YR30199309-199610

FRONT

main88461-28190iCR22..D,G; CR29..HRF; CR29..MRF;CR36,YR21199309-199610

main88461-28200iCR30..ATM; CR37..ATM199201-199309

main88461-28210iCR30..ATM199201-199309

main88461-95D00iCR37..4D; YR30;CR30..MTM199201-199309

REAR

main88461-95D01iCR37..4D; YR30;CR30..MTM199201-199309

FRONT

88463BRACKET, COOLER CONDENSER, NO.1

main88463-28180iCR21,27,28,KR27,YR2#..B,D,F,N199201-199610

88463BBRACKET, COOLER CONDENSER, NO.3

main88463-28280iCR31..ATM; CR38..ATM199309-199610

main88463-87014iCR29..HRF199309-199610

main88688-95D03iCR31..MTM;CR37..ATM;CR30,37,YR30..4D199201-199610

88463CBRACKET, COOLER CONDENSER, NO.4

main88463-28160iCR31..MTM;CR30,37..ATM199201-199610

main88463-28270iCR31..ATM; CR38..ATM199309-199610

main88463-87015iCR29..HRF199309-199610

88471TANK, RECEIVER AIR CONDITIONER

main88470-14010iCR2#,KR27,YR2#199201-199309

main88471-16010iCR3#,YR30199201-199309

main88471-28100iCR29..MRF;CR22,27,31,36,KR27,YR2#,30199309-199408

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-28070×2iCR30,37..ATM199201-199309

main88550-28100×2iCR31..MTM; CR38..MTM199309-199610

main88550-28110iCR31..ATM; CR38..ATM199309-199610

main88550-28160iCR22,YR30; CR22..D,G; CR29..HRF; CR29..MRF;CR36,YR21199408-199610

DUAL

main88550-87002iCR29..HRF; YR21;CR29..MRF;CR22,36..D,G,N199309-199408

88590BLOWER ASSY, W/SHROUD

main88454-28060iCR21,YR21199201-199309

main88590-28020iCR30..MTM;CR22,37,YR30..4D199201-199408

REAR

main88590-28030iCR30,37..ATM199201-199309

REAR

main88590-28040iCR30,37..ATM199201-199309

FRONT

main88590-28050iCR30..MTM;CR22,37,YR30..4D199201-199408

FRONT

main88590-28060iCR31..ATM; CR38..ATM199309-199610

main88590-28070iCR31..MTM; CR38..MTM199309-199610

FRONT

main88590-28080iCR31..MTM; CR38..MTM199309-199610

REAR

main88590-28110iCR22,YR30; CR22..D,G; CR29..HRF; CR29..MRF;CR36,YR21199408-199610

DUAL

88605JHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-2R110iCR22,29..MRF; CR22..(D,G)..HRF; CR29..HRF; YR21199408-199610

main88605-2R120iCR22,YR30199408-199610

88710TUBE ASSY, AIR CONDITIONER

main88710-28430iCR30,37..(B,D)..4D199201-199309

main88710-28640iCR21,28,YR21..(B,D)..4D; CR28..5D;CR27,KR27,YR25199201-199309

main88710-28650iCR30,37..(B,D)..4D; CR36;CR37..5D199201-199309

main88710-28660iCR21,YR21; CR28..4D199201-199309

main88710-2J420iCR27,KR27,YR25; YR21..MRF199309-199408

main88710-2J490iYR21199408-199610

main88710-2J520iCR36199309-199610

main88710-2J530iCR31..D,G; CR38199309-199610

main88710-2J540iCR22..D,G;CR29..MRF; CR29..HRF199309-199610

88715EPIPE, COOLER REFRIGERANT DISCHARGE, E

main88715-28370iCR30,37..ATM199201-199309

main88715-28400iCR31..MTM; CR38..MTM199309-199610

main88715-28430iCR29..HRF; YR21;CR29..MRF;CR22,36..D,G,N199309-199610

88715KTUBE, DISCHARGE, K

main88715-28150iCR21,YR21199201-199309

main88715-28340iYR21..ATM; YR21..MTM199309-199610

main88715-28380iCR31..ATM; CR38..ATM199309-199610

FLOOR

main88715-28390iCR31..ATM; CR38..ATM199309-199610

RADIATOR

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2J750iCR22;CR29..MRF; CR29..HRF199309-199610

main88716-2J770iCR31; CR38199309-199610

main88716-2J780iCR36,YR30199309-199610

main88716-2J860iCR27,KR27,YR25; YR21..ATM199309-199610

main88716-87055iCR2#,KR27,YR2#199201-199309

main88716-95D05iCR3#,YR30199201-199309

88723BLABEL, COOLER SERVICE CAUTION

main88723-12040iCR21,28,YR21..(B,D)..4D; CR28..5D;CR27,KR27,YR25199201-199309

main88723-20010iCR30,37..(B,D)..4D; CR36;CR37..5D199201-199309

main88723-20030iCR29,38..HRF; CR29..MRF;CR22,27,31,36,KR27,YR2#,30199309-199610

main88723-28120iCR21,30,YR21,30; CR28,37..4D199201-199309

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846328030BRACKET, COOLER CONDENSER, NO.1

main88463-28030

8846328040BRACKET, COOLER CONDENSER, NO.1

main88463-28040

8846728020CUSHION, COOLER CONDENSER, NO.1

main88467-28020

8846732040CUSHION, COOLER CONDENSER, NO.1

main88467-32040

886882J030BRACKET, COOLER DIAPHRAGM

main88688-2J030

8871487011HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87011

8871812790PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12790

8871828040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-28040

887182B290PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2B290

8889728010VALVE, COOLER MAGNET

main88897-28010

9009120604

main90091-20604

9009904117

main90099-04117

9009904119

main90099-04119

9011908127

main90119-08127

9011908988

main90119-08988

9017906115

main90179-06115

9166540840

main91665-40840

9338516014

main93385-16014

9338516016

main93385-16016

9338516025

main93385-16025

9338516040

main93385-16040

9338518020

main93385-18020

41 parts on this diagram · 35 diagrams in section
