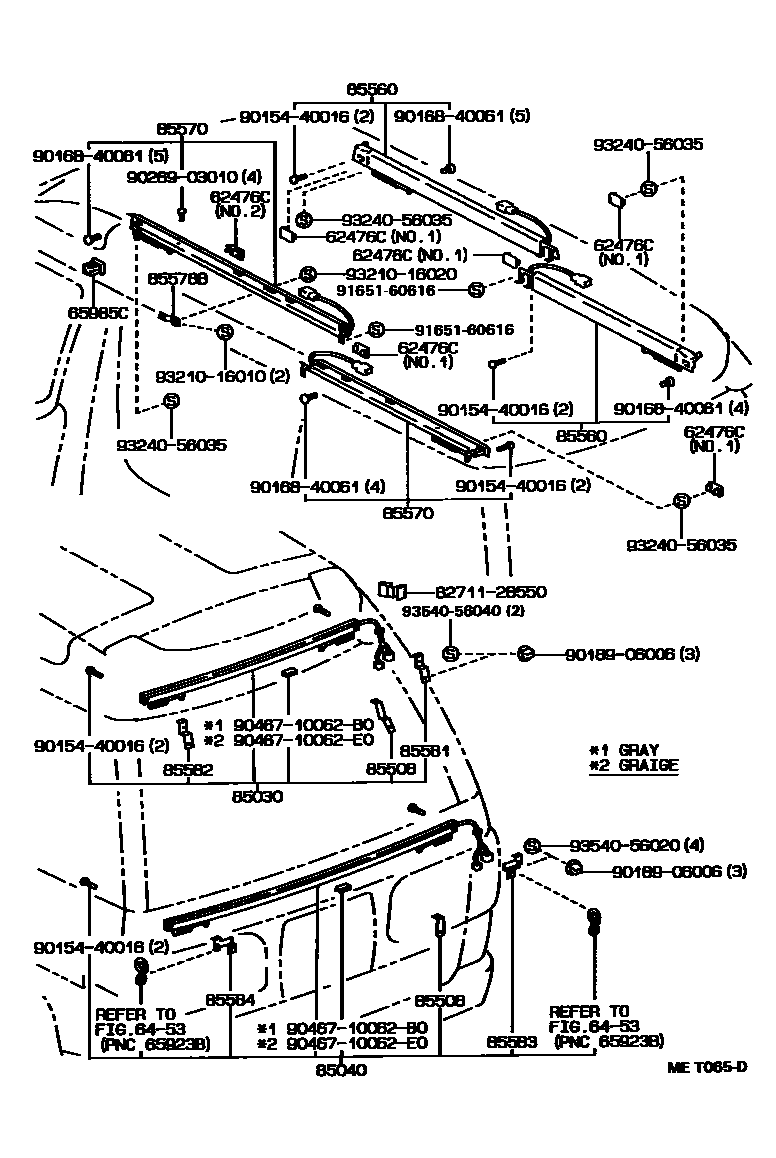

POWER CURTAIN

62476CCAP, ROOF SIDE INNER GARNISH, NO.1

main62476-28010-B0×5iCR21,22,30,31,YR21,30..Q199201-199610

main62476-28010-E0×5iCR21,22,30,31,YR21,30..07S199201-199610

main62476-28020-B0iCR21,22,30,31,YR21,30..Q199201-199610

main62476-28020-E0iCR21,22,30,31,YR21,30..07S199201-199610

6453ROOM CURTAIN & ROOM RACK

→ Go to FIG 64-53

65985CHOLDER, CURTAIN RAIL

main65985-28030-B0iCR21,30,YR21,30..Q199201-199309

LIGHT GRAY,TRIM1#

main65985-28030-E0iCR22,31,YR21,30..E,Q,Z199309-199610

LIGHT GRAIGE,TRIM4#

85030MOTOR & RAIL ASSY, AUTOMATIC CURTAIN, UPPER

main85030-28020-B0iCR22,31,YR21,30..E,Q199309-199610

LIGHT GRAY,TRIM1#

main85030-28020-E0iCR21,30,YR21,30..07S199201-199309

LIGHT GREIGE,TRIM4#

85040MOTOR & RAIL ASSY, AUTOMATIC CURTAIN, LOWER

main85040-28020-B0iCR22,31,YR21,30..E,Q199309-199610

LIGHT GRAY,TRIM1#

main85040-28020-E0iCR22,31,YR21,30..E,Q,Z199309-199610

LIGHT GREIGE,TRIM4#

85508BRACKET SUB-ASSY, AUTO CURTAIN RAIL BACK

main85585-28020iCR21,30,YR21,30..07S199201-199309

UPPER

main85586-28020iCR21,30,YR21,30..07S199201-199309

LOWER

85560MOTER AND RAIL ASSY, POWER CURTAIN, RH

main85560-28020-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#,FRONT

main85560-28020-E0iCR21,22,30,31,YR21,30..07S199201-199610

LIGHT GREIGE,TRIM4#,FRONT

main85560-28040iCR22,31,YR21,30..E199309-199610

FRONT

main85580-28020-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#,REAR

main85580-28020-E0iCR21,22,30,31,YR21,30..07S199201-199610

LIGHT GREIGE,TRIM4#,REAR

main85580-28040iCR22,31,YR21,30..E199309-199610

REAR

85570MOTER AND RAIL ASSY, POWER CURTAIN, LH

main85570-28020-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#,FRONT

main85570-28020-E0iCR21,22,30,31,YR21,30..07S199201-199610

LIGHT GREIGE,TRIM4#,FRONT

main85570-28040-B0iCR22,31,YR21,30..E199309-199610

LIGHT GRAY,TRIM1#,FRONT

main85570-28040-E0iCR22,31,YR21,30..E199309-199610

LIGHT GREIGE,TRIM4#,FRONT

main85590-28020-B0iCR21,22,30,31,YR21,30..Q199201-199610

LIGHT GRAY,TRIM1#,REAR

main85590-28020-E0iCR21,22,30,31,YR21,30..07S199201-199610

LIGHT GREIGE,TRIM4#,REAR

main85590-28040iCR22,31,YR21,30..E199309-199610

REAR

85578BBRACKET, AUTO CURTAIN RAIL, NO.4 LH

main85578-28020iCR21,22,30,31,YR21,30..07S199201-199610

main85578-28050iCR22,31,YR21,30..E199309-199610

85581BRACKET, AUTO CURTAIN RAIL BACK, UPPER RH

main85581-28020iCR21,30,YR21,30..07S199201-199309

85582BRACKET, AUTO CURTAIN RAIL BACK, UPPER LH

main85582-28020iCR21,30,YR21,30..07S199201-199309

85583BRACKET, AUTO CURTAIN RAIL BACK, LOWER RH

main85583-28020iCR21,30,YR21,30..07S199201-199309

85584BRACKET, AUTO CURTAIN RAIL BACK, LOWER LH

main85584-28020iCR21,30,YR21,30..07S199201-199309

8271128550WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-28550

9015440016

main90154-40016

9016840061

main90168-40061

9018906006

main90189-06006

9026903010

main90269-03010

9046710062B0

main90467-10062B0

9046710062E0

main90467-10062E0

9165160616

main91651-60616

9321016010

main93210-16010

9321016020

main93210-16020

9324056035

main93240-56035

9354056020

main93540-56020

9354056040

main93540-56040

26 parts on this diagram · 1 diagram in section
