ABS & VSC

85999MBRACKET, RELAY

main85999-28200iCR21,22,YR21..E,G,Q,Z199201-199610

88263ARELAY, SKID CONTROL

main88263-12080iCR21,22,YR21..E,G,Q,Z199201-199610

89411SENSOR, SPEED

main89542-28030iCR21,22,YR21..E,G,Q,Z199201-199610

FRONT RH

main89543-28030iCR21,22,YR21..E,G,Q,Z199201-199610

FRONT LH

main89545-28040iCR21,22,YR21..E,G,Q,Z199201-199610

REAR RH

main89546-28040iCR21,22,YR21..E,G,Q,Z199201-199610

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-28050iCR21,22,YR21..E,G,Q,Z199201-199610

89549BRACKET, SKID CONTROL COMPUTER

main89549-28070iCR21,22,YR21..E,G,Q,Z199201-199610

8826628420CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-28420

9161160614

main91611-60614

9161160812

main91611-60812

9161160816

main91611-60816

9161160818

main91611-60818

9161560616

main91615-60616

9165160614

main91651-60614

9165160618

main91651-60618

9326954010

main93269-54010

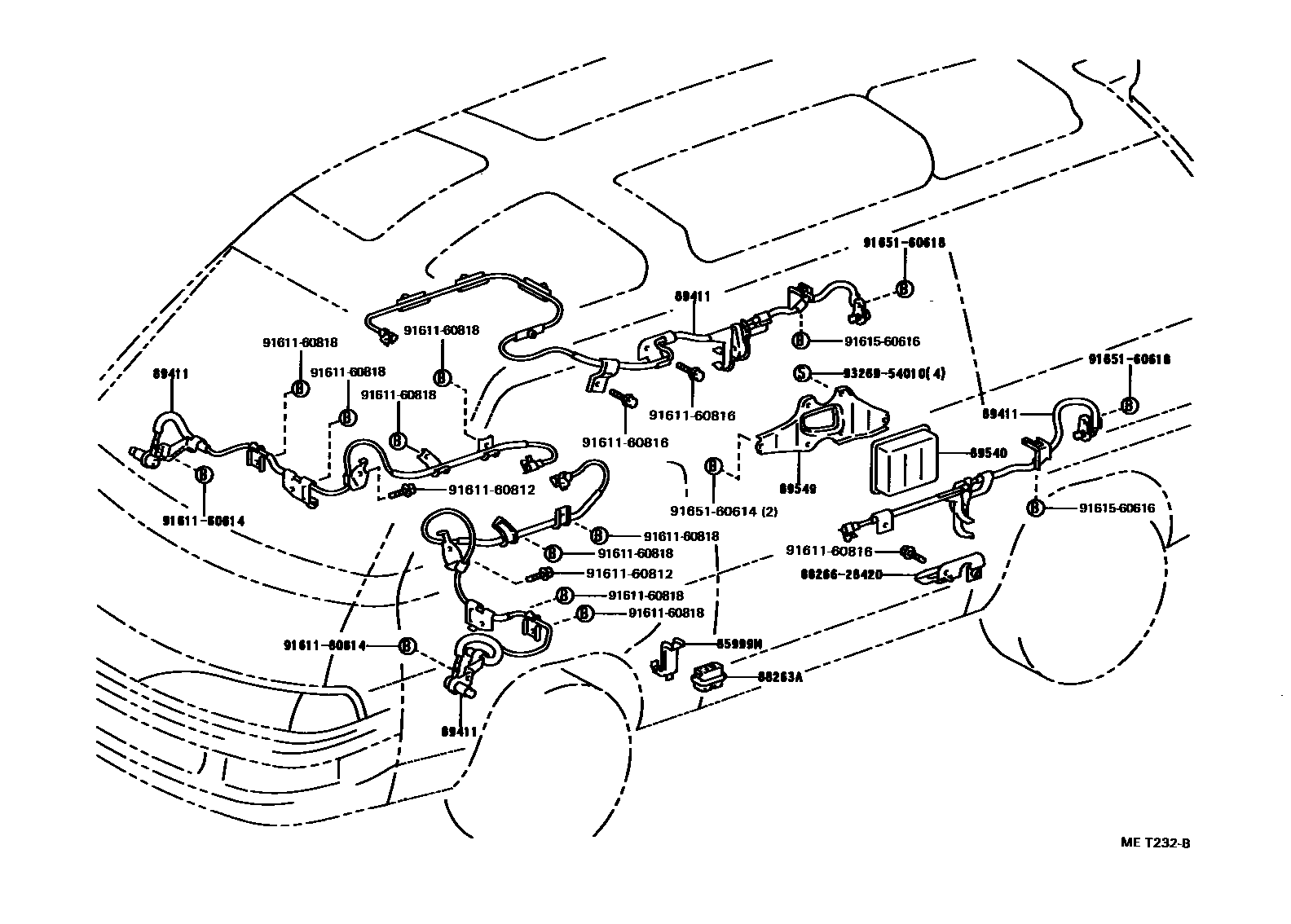

14 parts on this diagram · 1 diagram in section
