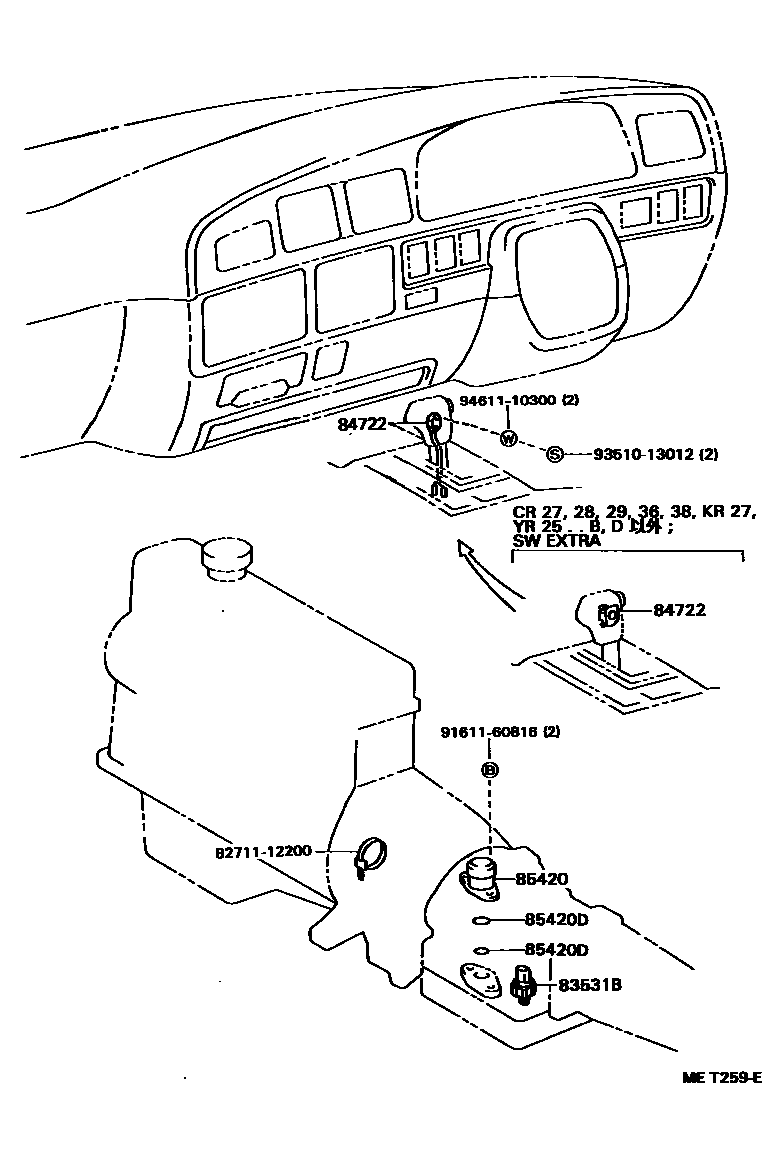

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

83531BSWITCH, OIL PRESSURE

main83531-12010iCR31,38..ATM199309-199610

84722SWITCH, TRANSMISSION CONTROL

main84722-28070-B0iCR27,28,29,36,37,38,KR27,YR25..ATM..(B,D)199201-199610

GRAY,TRIM1#

main84722-28080-B0iCR29,38..ATM199309-199610

SW EXTRA,GRAY,TRIM1#

main84722-28080-E0iCR21,22,30,31,YR21,30..ATM..(E,Q,Z)199201-199610

GREIGE,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-30160iCR2#,3#,KR27,YR2#,30..ATM199201-199610

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-11001iCR2#,3#,KR27,YR2#,30..ATM199201-199610

ID=11

main90301-23001iCR2#,3#,KR27,YR2#,30..ATM199201-199610

ID=23

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160816

main91611-60816

9351013012

main93510-13012

9461110300

main94611-10300

8 parts on this diagram · 1 diagram in section
