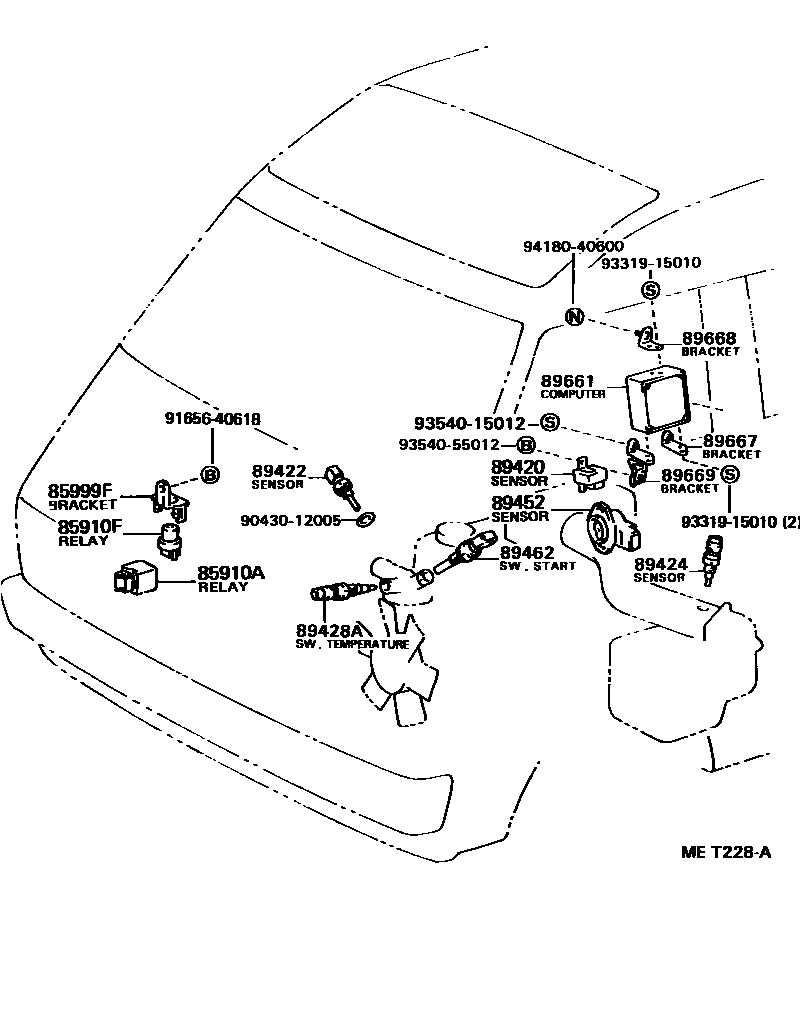

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-33010iYR21,30199201-199610

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iYR21,30199201-199610

85999FBRACKET, RELAY

main85999-12050iYR21,30199201-199610

89420SENSOR ASSY, VACUUM

main89420-28030iYR21,30199201-199610

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iYR21,30199201-199508

main89422-35010iYR21,30199508-199610

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-24010iYR21,30199201-199610

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28070iYR21,30199201-199508

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iYR21,30199201-199610

89462SWITCH, START INJECTOR TIME

main89462-20030iYR21,30199201-199508

89661COMPUTER, ENGINE CONTROL

main89661-28230iYR21,30199201-199508

main89661-28620iYR21,30199508-199610

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28030iYR21,30199201-199610

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89568-28010iYR21,30199201-199610

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-28020iYR21,30199201-199610

9043012005

main90430-12005

9165640618

main91656-40618

9331915010

main93319-15010

9354015012

main93540-15012

9354055012

main93540-55012

9418040600

main94180-40600

19 parts on this diagram · 1 diagram in section
